Description

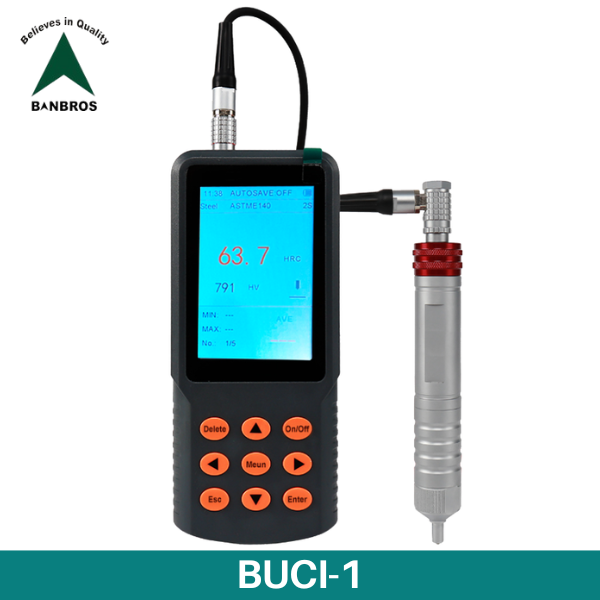

BUCI-1 non-destructive ultrasonic hardness tester, based on the principle of ultrasonic contact impedance method (UCI method), can quickly and without damage to detect the hardness of a variety of metal materials including composite materials and new materials, and has no pressure on the surface of the tested specimen. It has high measurement accuracy and both single-point and multi-point calibration modes. It adopts 3.5-inch LCD color display, intuitive and comprehensive data display, supports mutual conversion among various hardness systems. It is the ideal instrument for detecting varieties of materials.
Application
Ultrasonic hardness tester BUCI-1 is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin-walled parts, bearings, tooth flanks, etc.
- Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part.
- Hardness test of axle and thin-wall pipes and vessels.
- Hardness test of wheels and turbine rotors.
- Hardness test of bit edge.
- Hardness test of welding parts.
- Measure the depth of deep hole with certain aperture, concave and convex mark with large radians, and irregular plane.
- Hardness test of most ferrous and nonferrous metals and their alloys in industrial production.
Features
- Based on the principle of ultrasonic resonance, the surface of the tested workpiece is minimally damaged. It is suitable for measuring finished workpieces with high surface technology requirements.
- The measurement speed is fast, and the test results can be output within 1 second; the built-in hardness system conversion function can be converted between the three hardness systems of Brinell (HB), Rockwell (HRC) and Vickers (HV).
- Adopt 3.5-inch LCD color display, the main interface of the screen directly displays the current measurement value, the cumulative measurement times, maximum value, minimum value, average value, automatic storage of measurement data, measurement time, material, hardness conversion table standard, intuitive and comprehensive display.
- With a single-point calibration mode, one-point calibration is used for materials with different elastic moduli to eliminate the influence of elastic modulus and improve measurement accuracy.
- With multi-point calibration mode, it can directly adjust HRC, HRB, HRA, HB, HV, especially suitable for composite materials or new materials without hardness value conversion comparison table, which can be directly calibrated for HRC, HRB, HRA, HB, HV.
- The 10-point factory calibration mode, through the calibration of 10 Vickers hardness blocks with different hardness values, to ensure the factory accuracy of the instrument.
- Optional Bluetooth printer can print measurement data.
- Detecting workpieces of different materials only needs to use test blocks of the same or similar material for adjustment without changing the probe.
- Comply with DIN 50159-1-2008, ASTM-A1038-2005, JB/T 9377-2010, JJG-654-2013, GBT34205-2017 hardness testing standards.
Specifications
| Model No. | BUCI-1 |
| Probe | 2kgf manual probe (optional 0.5kgf, 1kgf, 5kgf, 10kgf probe) |
| Hardness Scale | Main hardness scale: HV Convert scale: HRA, HRB, HRC, HS, HB |
| Conversion Standard | ASTM E140, ISO18265, GBT1172 |
| Display Brightness | 5-99 (20 steps adjustable brightness) |
| Measuring Range | HV: 50-1599, HRA: 61-85.6, HRB: 41-100, HRC: 20-68, HB: 85-650 |
| Test Error | HR: ± 1.5HR; HB: ± 4%HB; HV: ± 4%HV |
| Indenter | 136° Vickers Diamond Indenter |
| Measuring Direction | Support 360° |
| Display | 3.5-inch LCD color screen (320*480 color graphic dot matrix) |
| High Test Speed | 1s display test result |
| Work Environment | Temperature: -20?~50?; Humidity: 30%~80%R.H |
| Power Supply | 3.6V, 3000mAh chargeable Li-battery |
| Continuous Work Time | 10 hours (without back light working) |
| Data Storage | 50 sets of measurement data and 10 calibration files |
| Data Output | Optional purchase blue-tooth printer or through Hyper Terminals connect with computer to do data transfer |
| Minimum Test Thickness & Weight | 2mm, 0.3kg |
| Packing Size And GW | 41*34*15cm, 4.5kg |
| Standard | ASTM-A1038-05, DIN 50159-1-2008, JB/T 9377-2010 |
Accessories
- Instrument Main Body: 1
- Manual Probe 2kgf: 1
- 5V AC Power Adapter: 1
- Probe Cable: 1
- Standard Hardness Block: 1
- Instrument Manual: 1
- Accessories Box: 1
- Certificate: 1
Software Description
Download Cataloge
ENQUIRY
High Precision Ultrasonic Hardness Tester
Description

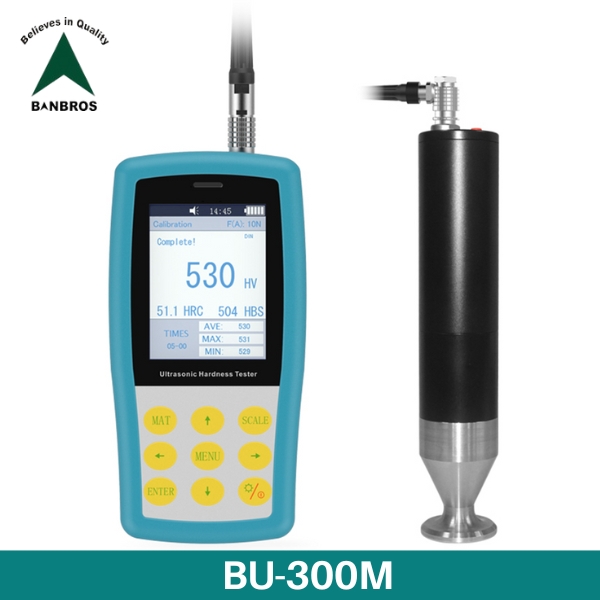

BU-300M Motorized Ultrasonic Hardness Tester is a popular portable durometer. It applies method of ultrasonic contact independence to make hardness testing at the spot or in the laboratory. BU-300M is a perfect portable durometer for hardness testing about the coating and plating, it can measure the hardness of chrome, copper plating, carburized layer and Nitriding layer effectively. BU-300M is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc. BU-300M can not only work with the motorized probes, but also work with the manual probes, which is able to meet the different application in light of different condition of surface roughness. BU-300M conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008
Application
Features
- Perfect Accuracy : ±3% HV, ±1.5HR, ±3%HB.
- Microscopic Indentation : Only high-power microscope can observe the indentation.
- Quick Measurement : Result in 2 seconds.
- Large LCD Display : Directly display measurement result, times count, maximum, minimal, average and deviation.
- Friendly Operation : Operate well after short training.
- Promised Warranty : 2-Year warranty for main unit (Excludes Probe).
- Mass Storage : Save 1000 groups measurement data.
- Simple Calibration : Save 20 groups calibration data for invoking, improve calibration efficiency.
Specifications
| Model No. | BU-300M (Motorized) | ||||
| Optional probe | Manual Probe：10N、20N、49N、98N ; Motorized Probe：3N、5N、8N、10N |
||||
| Measuring Range | HBW:100-650; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255- 2180N/mm | ||||
| Measuring Accuracy (%) | Scales | ﹤ 250HV | 250~500HV | 500~800Hv | ﹥ 800HV |
| HV0.1 | 6 | 7 | 8 | 9 | |
| HV0.3 | 6 | 7 | 8 | 9 | |
| HV0.8 | 5 | 5 | 6 | 7 | |
| HV1 | 5 | 5 | 6 | 7 | |
| HV5 | 5 | 5 | 5 | 5 | |
| HV10 | 5 | 5 | 5 | 5 | |
| Hardness Scales | Vickers(HV); Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB); Brinell(HB) | ||||
| LCD | Color Screen | ||||
| Data Display | LCD Backlight, Adjustable | ||||
| Language | English, German, Portugese, Turkish | ||||
| Data Output | RS232 Hyper Terminal/Bluetooth Printer | ||||
| Bluetooth | |||||
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data | ||||
| Word input | Letters and numerals | ||||
| Working Environment | Temperature: -10°C to 50°C Humidity :30%-80% R.H. | ||||
| Battery Voltage | Rechargeable lithium battery ; Voltage :4.2V, 4800mAh | ||||
| Recharger Voltage | AC220V/50Hz, 110V/60Hz | ||||
| Main unit Dimension and Weight | Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg | ||||
| Packing Dimension & Weight | Packing Dimension 320 x 430 x 155mm (L x W x H); Packing Weight (Standard Delivery)4.3Kg | ||||
Accessories
- Instrument Main Body : 1 No.
- Standard Rockwell Block : 1 No.
- USB Recharger : 1 No.
- Qualification Certificate : 1 No.
- 10N Manual Probe : 1 No.
- Probe Cable : 1 No.
- COM Cable : 1 No.
- Anti Vibration Case : 1 No.
- Screw : 1 No.
- Operation manual : 1 No.
Software Description
Download Cataloge
ENQUIRY
