Description
Banbros offers you the most advance system of weld penetration inspection with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.
Application
Features
- Operating System: Support to window2000 or windows XP or higher version
- Picture Element: High-resolution CMOS chip
- Output: USB is used to adapt with pc
- Power: It is freely plugged and unplugged with no extra power
Specifications

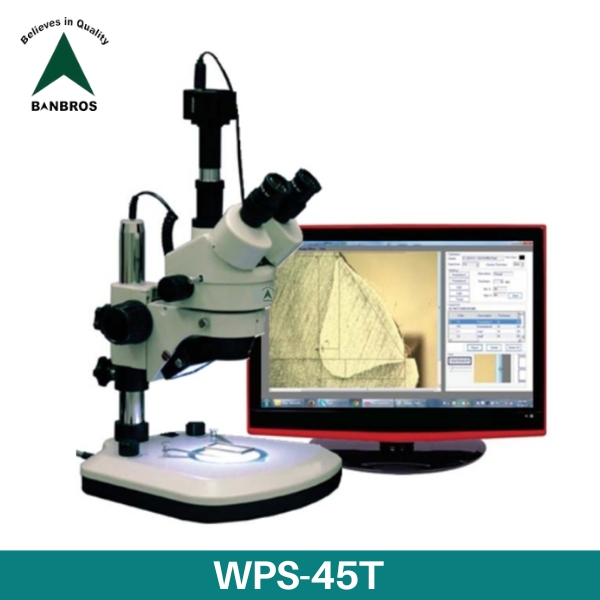

| Model Number | WPS-45T |
| Magnification range | 7X to 45X |
| Objectives range if zoom magnification | 0.7X~4.5X |
| Eyepieces field is wide and clear | 10X (field size: ? 20mm) |
| Power Supply is out of the base of instrument. | |
| The mode of illumination selection and brightness adjusting are very easy, has three mode: transmitted light, reflected light and mixed light illumination. | |
Accessories
USB DIGITAL CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro- Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the Integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.
It can provide support for detail image demonstration and analysis/application, including following function:
- Take Photo and Save Picture into Computer
- Take Video and Save Video into Computer
Software Description
1) Weld Penetration:
- Penetration depth & percentage
- Leg measurement
- Throat measurement
- Thickness measurement
- Can set tolerances for each parameters.
- Automatic pass/fail status identification based on observed value and tolerances.
- Can feed sample information in Report.
(2) Calibration: This tool is used for calibrating through calibration scale.
(3 ) Dimensional Measurement:
- Line
- Length (Linear, Horizontal, Vertical)
- Angle (two line angle, three line angle)
- Distance ( two point)
- Radius (three point)
- Diameter (three point)
(4) Report:
- PDF & M.S. Excel
- Printout with Processed imaged and results
Download Cataloge
ENQUIRY
Welding Penetration Inspection System
Description
Banbros offers you the most advance system of weld penetration inspection with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.
Application
Features
- Operating System: Support to window2000 or windows XP or higher version.
- Picture Element: High-resolution CMOS chip.
- Output: USB is used to adapt with pc.
- Power: It is freely plugged and unplugged with no extra power.
Specifications

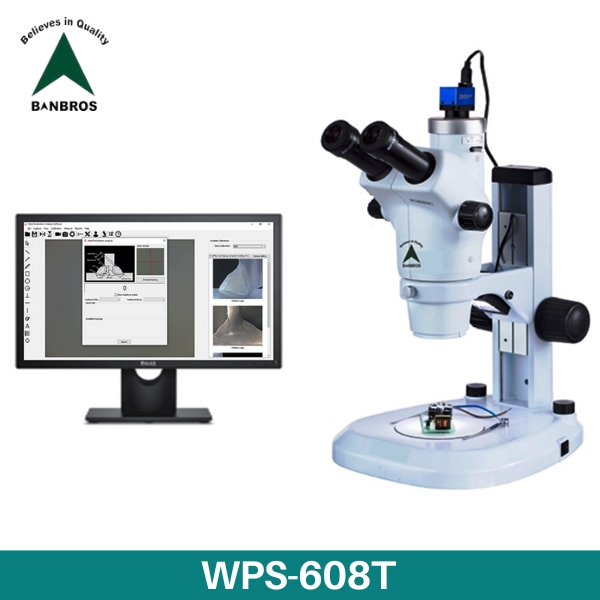

| Model Number | WPS-608T |
| Magnification range | 6X to 50X |
| Objectives range if zoom magnification | 0.6X ? 5X |
| Eyepieces field is wide and clear | 10X (field size: ? 20mm) |
| Power Supply is out of the base of instrument | |
| The mode of illumination selection and brightness adjusting are very easy, has three modes: transmitted light, reflected light and mixed light illumination. | |
Accessories
USB DIGITAL CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.
It can provide support for detail image demonstration and analysis/application, including following function:
- Take Photo and Save Picture into Computer
- Take Video and Save Video into Computer
Software Description
1) Weld Penetration:
- Penetration depth & percentage
- Leg measurement
- Throat measurement
- Thickness measurement
- Can set tolerances for each parameters
- Can feed sample information in Report
- Automatic pass/fail status identification based on observed value and tolerances
2) Calibration: This tool is used for calibrating through calibration scale.
3) Dimensional Measurement:
- Line
- Length (Linear, Horizontal, Vertical)
- Angle (two-line angle, three-line angle)
- Distance (two point)
- Radius (three point)
- Diameter (three point)
4) Report:
- PDF & M.S. Excel
- Printout with Processed imaged and results
Download Cataloge
ENQUIRY
Welding Penetration Inspection System
Description
BANBROS offers you the most advance system of weld penetration inspection with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.
Application
Features
- Operating System: Support to windows10.
- Picture Element: High-resolution CMOS chip.
- Output: USB is used to adapt with pc.
- Power: It is freely plugged and unplugged with no extra power.
Specifications

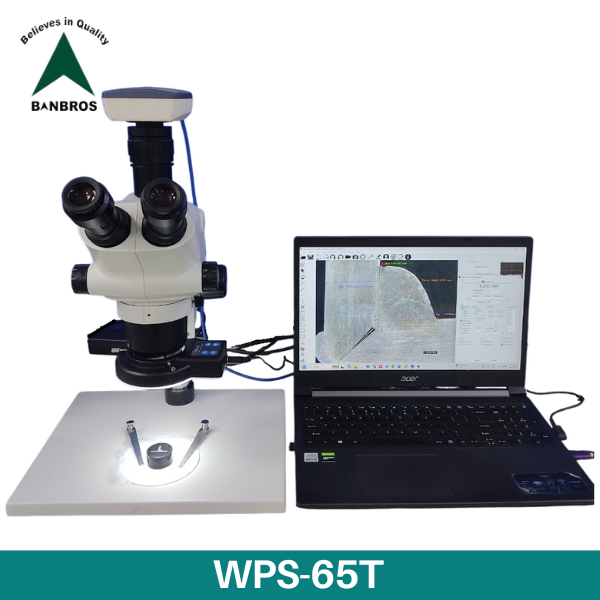

| Model No. | WPS-65T |
| Magnification Range | 6.5X to 65X |
| Objectives Range if Zoom Magnification | 0.65X?6.5X |
| Eyepieces Field is wide and clear | 10X (field size: ? 20mm) |
| Illumination | LED Ring Light |
| Power Supply is out of the base of instrument | |
| The mode of illumination selection and brightness adjusting are very easy, has three modes: transmitted light, reflected light and mixed light illumination. | |
Accessories
HIGH DEFINITION INDUSTRIAL USB DIGITAL CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.
It can provide support for detail image demonstration and analysis/application, including following function:
- Take Photo and Save Picture into Computer
- Take Video and Save Video into Computer
Software Description
1) Weld Penetration:
a) Penetration depth & percentage.
b) Leg measurement.
c) Throat measurement.
d) Thickness measurement.
e) Can set tolerances for each parameters.
f) Can feed sample information in Report.
g) Automatic pass/fail status identification based on observed value and tolerances.
2) Calibration: This tool is used for calibrating through calibration scale.
3) Dimensional Measurement:
a) Line
b) Length (Linear, Horizontal, Vertical)
c) Angle (two-line angle, three-line angle)
d) Distance (two point)
e) Radius (three point)
f) Diameter (three point)
4) Report:
a) PDF & M.S. Excel
b) Printout with Processed imaged and results.
Download Cataloge
ENQUIRY
Welding Penetration Inspection System
Description
BANBROS offers you the most advance system of weld penetration inspection with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.
Application
Features
- Operating System: Support to windows10.
- Picture Element: High-resolution CMOS chip.
- Output: USB is used to adapt with pc.
- Power: It is freely plugged and unplugged with no extra power.
- Parallel optics system: 0.8X~8X zoom body, standard outfits. 1X plane none aberrance 10X eyepiece, Working distance 91mm.
- Standard total magnification: 8X~80X, the biggest magnification: 360X.
- With plan, high eye point and wide field eyepieces (Φ22mm).
- Binocular eye tubes inclined 45°
- The range of adjusting the diopter is ±6
- Interpupillary distance adjustment range 50mm~76mm
- The range of adjusting the focus is 50mm(the square post is 100mm), the diameter of the center working stage is Φ95mm.
- The measurement to match between the support and the main body is Φ76mm
- The distance between from the post center to the main body center is 140mm
- The size of the round post is Φ25mm
Specifications

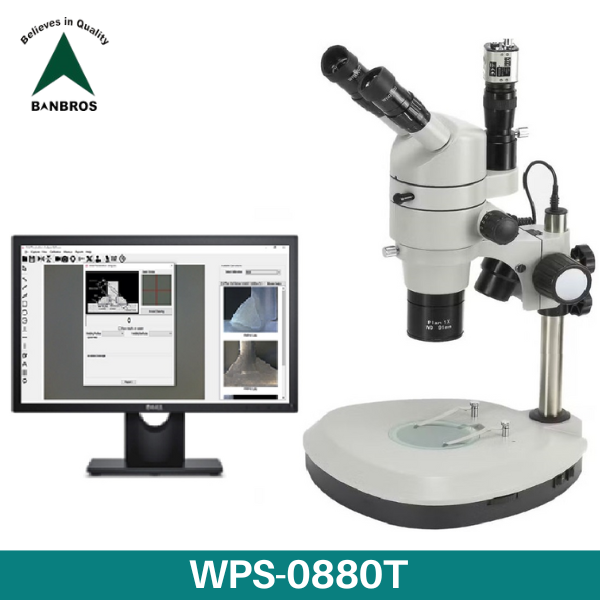

| Model No. | WPS-0880T |
| Magnification Range | 8X to 80X |
| Objectives Range if Zoom Magnification | 0.8X - 8X |
| Eyepieces Field is wide and clear | 10X (field size: ? 22mm) |
| Optical System | Parallel Optical |
| Power Supply is out of the base of instrument | |
| The mode of illumination selection and brightness adjusting are very easy, has three modes: transmitted light, reflected light and mixed light illumination. | |
Accessories
HIGH DEFINITION INDUSTRIAL USB DIGITAL CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.
It can provide support for detail image demonstration and analysis/application, including following function:
- Take Photo and Save Picture into Computer
- Take Video and Save Video into Computer
Software Description
1) Weld Penetration:
a) Penetration depth & percentage.
b) Leg measurement.
c) Throat measurement.
d) Thickness measurement.
e) Can set tolerances for each parameters.
f) Can feed sample information in Report.
g) Automatic pass/fail status identification based on observed value and tolerances.
2) Calibration: This tool is used for calibrating through calibration scale.
3) Dimensional Measurement:
a) Line
b) Length (Linear, Horizontal, Vertical)
c) Angle (two-line angle, three-line angle)
d) Distance (two point)
e) Radius (three point)
f) Diameter (three point)
4) Report:
a) PDF & M.S. Excel
b) Printout with Processed imaged and results.
Download Cataloge
ENQUIRY
