Description
PB-200 is a bench type Projector suitable for all types of measurements and inspections at industries and institutions. Its multilayer coated Projection lenses provide high transmission and optimum contrast suitable for contour and surface in dimensional measurements and surface inspections. Its unique rigid pedestal system facilitates vibration free handling of components.
Wide choice of accessories enhance the scope of applications in various fields. It incorporates both Epi & Diascopic illuminators designed on halogen bulb system to ensure brilliant projection on 200mm dia fine ground glass screen rotatable 360 with vernier reading to 1min. of an arc.
The screen has cross and detachable clips to hold comparator charts. Its precision micrometer measuring stage is fitted with Rotary measuring stage. It operates on ball bearing guides fine micrometer reading to 0.01mm. Lifelong smooth movement is assured by the incorporation of hard steel rolling balls both in longitudinal and transverse slides.
The basic instruments is supplied with 10x, a multielement coated projection lens. Projection accuracy 0.1% in case of contour and 0.15 % in case of surface is provided. Accurate magnification, maximum luminosity, great contrast, uniform resolution to the edge of the screen, freedom from distortion of the image.
Application
Features
Specifications
| Model No. | PB-200 |
| Magnification | 10X |
| Work Stage | 150mm X150mm |
| Travel | 50X50mm |
| Screen dia | 200 mm |
| Working Distance | Contour-65mm, Surface-65mm |
| Illumination | Contour - 24V-150W Surface - 12V-100W |
| Power Supply | 220V/50Hz |
| Cooling | Build-in noiseless and vibration free fan motors. |
| Glass Stage Dia. | 70mm, Micro Head-Standard 0-25mm (Imported) with resolution 0.01mm |
| Dimensions | 40 x 60 x 75cm |
| Weight | 50Kgs. (Approx.) |
Accessories
Software Description
Download Cataloge
ENQUIRY
Profile Projector
Description

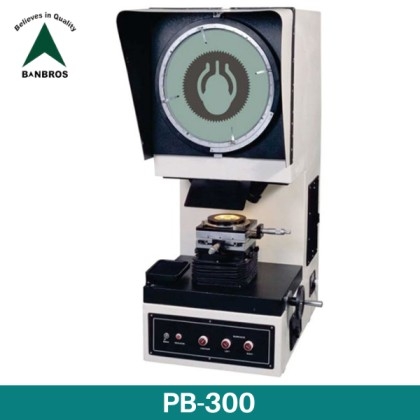

PB-300 Profile Projectors is a bench type Profile Projector suitable for all types of measurements and inspections at industries and institutions. Its multilayer coated Projection lenses provide high transmission and optimum contrast suitable for contour and surface in dimensional measurements and surface inspections. Its unique rigid pedestal system facilitates vibration free handling of components.
Wide choice of accessories enhance the scope of applications in various fields. It incorporates both Epi & Diascopic illuminators designed on halogen bulb system to ensure brilliant projection on 300mm dia fine ground glass screen rotatable 360 with vernier reading to 1min. of an arc.
The screen has cross and detachable clips to hold comparator charts. Its precision micrometer measuring stage is fitted with Rotary measuring stage. It operates on ball bearing guides fine micrometer reading to 0.01mm. Lifelong smooth movement is assured by the incorporation of hard steel rolling balls both in longitudinal and transverse slides. The basic instruments is supplied with 10x, a multielement coated projection lens. Projection accuracy 0.1% in case of contour and 0.15 % in case of surface is provided.
Accurate magnification, maximum luminosity, great contrast, uniform resolution to the edge of the screen, freedom from distortion of the image
Application
Features
Specifications
| Model No | PB-300 |
| Magnification | 10X |
| Work Stage | 150mm X150mm |
| Travel | 50X50mm |
| Screen dia | 300 mm |
| Working Distance | Contour-65mm, Surface-65mm |
| Illumination | Contour - 24V-150W Surface - 12V-100W |
| Power Supply | 20V/50Hz |
| Cooling | Build-in noiseless and vibration free fan motors |
| Glass Stage Dia. | 70mm, Micro Head-Standard 0-25mm (Imported) with resolution 0.01mm |
| Dimensions | 50 x80 x 100cm |
| Weight | 75Kgs. (Approx.) |
Accessories
Software Description
Download Cataloge
ENQUIRY
Profile Projector
Description

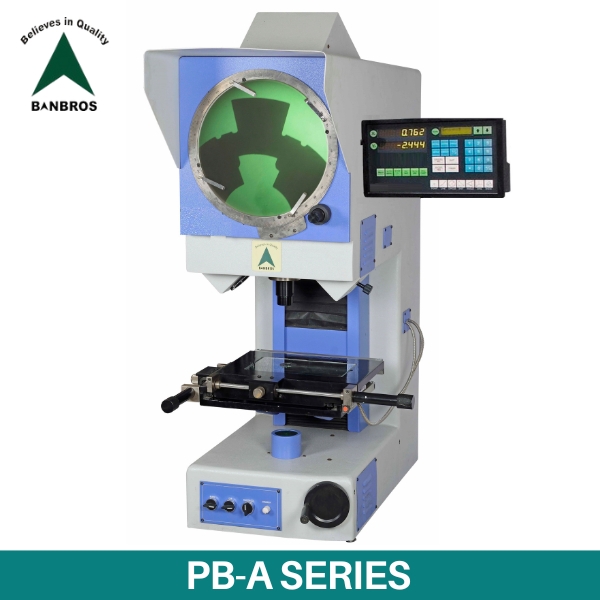

PB-A Series is a bench top Vertical Profile Projector system equipped with Mini Digital Readout System. It is suitable for all types of measurements and inspections in different industries and institutions.
Its multilayer coated Projection lenses provide high transmission and optimum contrast suitable for contour and surface in dimensional measurements and surface inspections.
Application
Features
- Vertical illumination system.
- Cooling fan provided to avoid overheating.
- Lens magnification range from 10x,20x,25x,50x,100x.
- Useful for checking parts between centre.
- Heavy parts can be placed on work-stage easily.
- Erect unreversed image, movement of the specimen corresponds with the
- movement of micro stage. Operational errors significantly reduced.
Specifications
| Model No | PB-12A | PB-16A | PB-20A | PB-24A |
| Magnification | 10X | 10X | 10X | 10X |
| Work Stage | 350X250 mm | 350X250 mm | 350X250 mm | 350X250 mm |
| Travel | 200X100 mm | 220X120 mm | 220X120 mm | 220X120 mm |
| Screen diameter | 300 mm | 400 mm | 500 mm | 600 mm |
| Angle reading | 360 deg. Graduated ring | |||
| Illumination | 24V-150W halogen bulb | |||
| Accuracy |
0.05% on Diascopic |
0.10% on Diascopic |
||
| Electronic regulator to control light intensity. | ||||
| Focusing assembly fully covered with bellows to protect it from dust | ||||
| Fine rotation knob for 360-graduated ring. | ||||
Accessories
Software Description
Download Cataloge
ENQUIRY
Profile Projector
Description

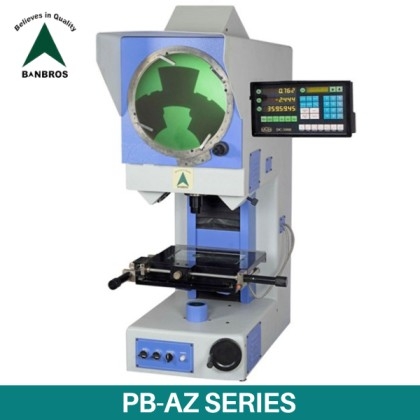

PB-AZ Series Profile Projectors has been specifically manufactured to check small and thin components that are directly placed on the work-stage.
These kind of Profile projectors are widely used for plastic, sheet metal parts, electronic and rubber specimens. These Vertical Profile Projectors are preferred choice in the Indian market.
Application
Features
- Vertical illumination system.
- Cooling fan provided to avoid overheating.
- Lens magnification range from 10x,20x,25x,50x,100x.
- Useful for checking parts between centre.
- Heavy parts can be placed on work-stage easily.
- Erect unreversed image, movement of the specimen corresponds with the movement of micro stage. Operational errors significantly reduced.
Specifications
| Model No | PB-12AZ | PB-16AZ | PB-20AZ | PB-24AZ |
| Magnification | 10X | 10X | 10X | 10X |
| Work Stage | 350X250 mm | 350X250 mm | 350X250 mm | 350X250 mm |
| Travel | 200X100 mm | 220X120 mm | 220X120 mm | 220X120 mm |
| Screen diameter | 300 mm | 400 mm | 500 mm | 600 mm |
| Angle reading | 360 deg. Graduated ring | |||
| Illumination | 24V-150W halogen bulb | |||
| Accuracy |
0.05% on Diascopic |
0.10% on Diascopic |
||
| Electronic regulator to control light intensity. | ||||
| Focusing assembly fully covered with bellows to protect it from dust | ||||
| Fine rotation knob for 360-graduated ring. | ||||
Accessories
Software Description
Download Cataloge
ENQUIRY
Profile Projector
Description

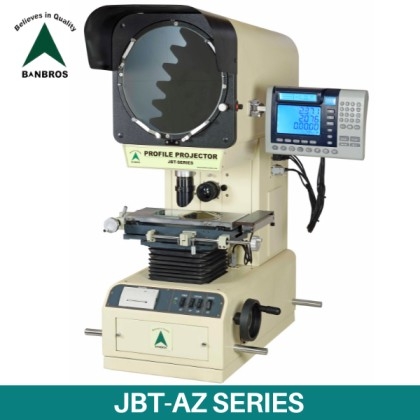

JBT-12 AZ Profile Projector with Digital Data Processor is an efficient optical measuring instrument, Which is in easy operation and suitable for measuring different shapes of work-pieces with complicated profiles And surfaces. Such as punched pieces, gears, cams, thread cutters, templates etc by means of profile Compare measure.
Therefore, this instrument is widely used in different machine and instrument Manufacturing industries, and it is indispensable for inspection departments and workshops of relative factories.
Application
Features
Specifications
| Model No | JBT-12AZ | JBT-12AZ(B) | JBT-16AZ | JBT-20AZ | JBT-24AZ |
| Screen diameter | 300 mm | 300 mm | 400 mm | 500 mm | 600 mm |
| Magnification |
10X |
||||
| Work Stage | 340x152 mm | 400x225 mm | 420x250 mm | 500x260 mm | 500x260 mm |
| Travel | 150x50 mm | 200x100 mm | 250x150 mm | 200x100 mm | 200x100 mm |
| Linear Measurements |
Digital Data Processor |
||||
| Angular Measurements |
Digital Display L.C. 1sec |
||||
| Accuracy | (3+L/100) µm | (3+L/75) µm | (3+L/75) µm | ||
| Illumination | Contour - 24V-150W, Halogen tungsten lamp Surface - 12V-100W, Halogen tungsten lamp |
||||
| Weight | 135kg | ||||
| Dimensions | 806×380×1065 (approx.) | ||||
Accessories
Software Description
Download Cataloge
ENQUIRY
Profile Projector
Description

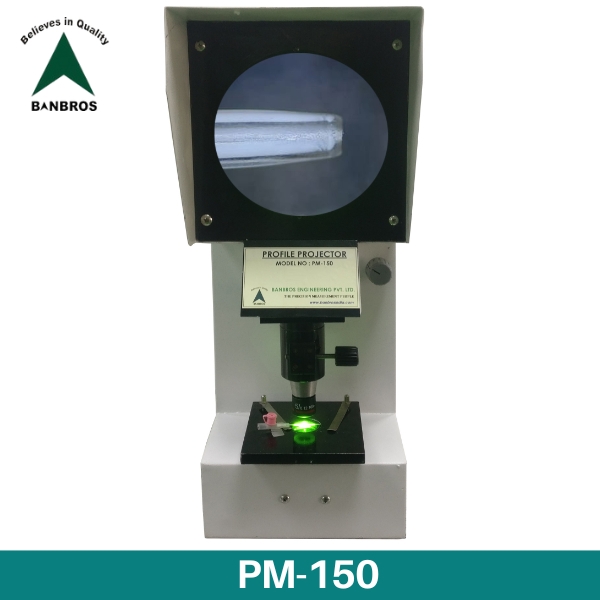

BANBROS Profile Projector PM-150 are versatile sophisticated and are used in different industries for inspection of disposable syringes, concentricity of welding electrodes, inspection of various parts of energy meter etc.
Application
Features
Specifications
| Model No. | PM-150 |
| Type | Vertical Axis Light path, Table Top Projection Microscope |
| Screen | Frosted Glass Screen diameter 150mm |
| Magnification | 20X (standard) |
| Objective | 5X |
| Illumination | Transmitted Light 12V/100 watts with ON/OFF Switch & Intensity controller |
| Cooling | Fan cooling noiseless and vibration free |
| Power Input | AC 220V 0Hz |
| Dimensions (WxDxH) | 20 x 38 x 42 cm |
| Gross Weight | 20 Kgs (Approx) |
Accessories
- Power supply cord
- Vinyl Cover
- Spare Bulb
Optional Accessories:
- Screen 150mm with cross hair line
- Screen 150mm with scale
- Mechanical stage to hold glass slide
- Work stage with Micrometer head 0-25mm
- Objective 5x, 10x, 20x
Software Description
