- Hardness Tester
- Micro Vicker Hardness Tester
Description
Application
Features
- Manual turret shifting between indenter and objective lens.
- Large LCD screen display, easy and convenient operation.
- Input D1 & D2 value from front panel and hardness value will be displayed on LCD directly.
- High quality integral casting cast iron machine body with automotive paint treatment process, the
- appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on
- screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the HD
- micrometer eyepiece, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an
- alarm sound will be issued.
- The hardness value can be corrected within a certain range by standard scale.
- With the database function, the testing result can be saved automatically up to 200 data.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
Specifications
Model No. | BHV-1000 |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale |
HRA, HRB, HRC, HRD, HRE, HRF,HR15N, HR30N, HR45N, HR15T, HR30T,HR45T,HB, HV, |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025μm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table | Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens |
10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil : 1 pc
- Thin shaft anvil : 1 pc
- Thin plate anvil : 1 pc
- Flat nose pliers : 1 pc
- Large V-notch anvil : 1 pc
- Small V-notch anvil : 1 pc
- Diamond pyramid penetrator : 1 pc
- Micro-Vickers standardized block : 2 pcs
Software Description
Download Cataloge
ENQUIRY
Manual Turret Micro Vickers Hardness Tester
Description
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Application
Features
- Automatic turret shifting between indenter and objective lens. Large LCD screen display, easy and convenient operation.
- Input D1 & D2 value from front panel and hardness value will be displayed on LCD directly.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the HD micrometer eyepiece, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales. The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- The hardness value can be corrected within a certain range by standard scale.
- With the database function, the testing result can be saved automatically up to 200 data. CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. |
BHV-1000A | |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) | |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV | |
Hardness measuring range | 5~5000HV | |
Measuring resolution | 0.025μm | |
Hardness resolution | 0.1HV | |
Max Height of Specimen | 120mm | |
Depth of throat | 110mm | |
X-Y Testing table | Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
|
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 | |
Magnification of eyepiece | 10X | |
Magnification of objective lens | 10X, 40X | |
Total magnification | 100X, 400X | |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface | |
Dwelling time | 1~99s | |
Power supply | AC 220V or 110V, 50 or 60Hz | |
Overall Dimensions | 530*290*490mm | |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil : 1 pc. Thin shaft anvil: 1 pc
- Thin plate anvil : 1 pc
- Flat nose pliers : 1 pc
- Large V-notch anvil : 1 pc
- Small V-notch anvil : 1 pc
- Diamond pyramid penetrator : 1 pc
- Micro-Vickers standardized block : 2 pcs
Software Description
Download Cataloge
ENQUIRY
Auto Turret Micro Vickers Hardness Tester
Description
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Application
Features
- Automatic turret shifting between indenter and objective lens.
- Large 8” touch screen, direct visual display and interactive operating interface.
- Input D1 & D2 value from touch screen and hardness value will be displayed on LCD directly.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the HD
- micrometer eyepiece, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. | BHV-1000TA |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HV, HB, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Hardness measuring range | 5~2900HV |
Measuring resolution | 0.025μm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table | Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil : 1 pc. Thin shaft anvil: 1 pc.
- Thin plate anvil : 1 pc.
- Flat nose pliers : 1 pc.
- Large V-notch anvil : 1 pc.
- Small V-notch anvil : 1 pc.
- Diamond pyramid penetrator : 1 pc.
- Micro-Vickers standardized block : 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Micro Vickers Hardness Tester
Description
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Application
Features
- Automatic turret shifting between indenter and objective lens.
- Large LCD screen display, easy and convenient operation.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- The hardness value can be corrected within a certain range by standard scale.
- With the database function, the testing result can be saved automatically up to 200 data. CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. | BHVS-1000A |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025μm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table | Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil : 1 pc.
- Thin shaft anvil : 1 pc.
- Thin plate anvil : 1 pc.
- Flat nose pliers : 1 pc.
- Large V-notch anvil : 1 pc.
- Small V-notch anvil : 1 pc.
- Diamond pyramid penetrator : 1 pc.
- Micro-Vickers standardized block : 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Auto Turret Digital Display Micro Vickers Hardness Tester
Description
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.
Application
Features
- Automatic turret shifting between indenter and objective lens.
- Large 8” touch screen, direct visual display and interactive operating interface.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No | BHVS-1000TA |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV, HS |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025μm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table | Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | Net weight |
Accessories
- X-Y Coordinate test anvil : 1 pc.
- Thin shaft anvil : 1 pc.
- Thin plate anvil : 1 pc.
- Flat nose pliers : 1 pc.
- Large V-notch anvil : 1 pc.
- Small V-notch anvil : 1 pc.
- Diamond pyramid penetrator : 1 pc.
- Micro-Vickers standardized block : 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Digital Display Micro Vickers Hardness Tester
Description
High-quality imported components, ensure the new type Micro Hardness Testers working more stable. Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise. This machine is integrated with optics, mechanics and electricity. It with unbeatable price / performance ratio, widely used in quality inspection and quality control field.
- One time casting aluminum body with sturdy structure, modular design and stable working performance
- Load from 10 to 1000g, can extend to 2kgf
- Precise manual analog 10X eyepiece
- With hardness conversion function
- LED Cold light source
- Dual optical path, can work with hardness measurement software system (optional purchase)
- Standard machine come with Precision screw rod lifting system (Worm gear rod lifting system for optional purchase)
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nit riding and decarburization layer, surface hardening layer, galvanized coating, coating.
- Glass, chip and ceramic material.
Features
- Main components adopted American 3M, Allegro, and Japanese Omron, NKK brand, ensure the instrument can stable working for a very long time.
- Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
- The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness value, testing method, testing force, dwell time, easy for operator to save the data.
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000M | BMVH-1000A |
Turret | Manual Turret | Automatic Turret |
Testing force | 10g(0.098N), 25g(0.245N), 50g(0.49N), 100g(0.98N ), 200g(1.96N), 300g(2.94N), 500g(4.9N), 1kg(9.8N) | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Loading speed | ≤0.05mm/sec | |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | |
Min. measuring unit | 0.25μm | |
Hardness value rang | 5HV-3000HV | |
Hardness Value of Reading | Digital LCD Screen | |
Eyepiece | 10X manual analog eyepiece | |
Objective lens | 10X (observe), 40X (Measurement) | |
Total magnification | 100X (For Observation) , 400X (For Measurement) | |
Loading method | Automatically (Load, dwell and unload the testing force) | |
Duration time | 1-99s (each step is 1 second) | |
Maximum height | 90mm | |
Throat depth | 95mm | |
Instrument size and Net weight | 405*290*480mm (L×W×H) & 40kg | |
Packing size and Gross weight | 580x345x580mm( LxWxH) & 55kg | |
Light Source | LED cold light source | |
Power Supply | 220V + 5%, 50/60 Hz (110V is available) | |
X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range:25×25mm, Moving Resolution Ratio: 0.01mm | |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Accessories
- Weights shaft : 1 pc
- sheet specimen fixture : 1 pc
- 10X manual micrometer eyepiece : 1 pc
- Power line : 1 pc
- 10X and 40X objective lens : 1 pc
- Dust proof cover : 1 pc
- Vickers diamond indenter : 1 pc
- Manual Book : 1 pc
- X-Y Testing Table : 1 pc
- Certificate of quality : 1 pc
- Gradienter : 1 pc
- Screwdriver : 1 pc
- Flat fixture : 1 pc
- Warranty Card : 1 pc
- Accessory box : 1 pc
- Spare fuse : 2 pcs
- Standard block of hardness : 2 pcs
- horizontal adjusting screw : 4 pcs
*Optional Accessories:
- Image analysis software
- Metallographic equipment
- Knoop Indenter; hardness block
- 15X micrometer eyepiece
- Thin Specimen Test Table
- Flat fixture
- Filament Clamping Test Table
Software Description
Download Cataloge
ENQUIRY
Manual/Automatic Turret Micro Vickers Hardness Tester
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating.
- Glass, chip and ceramic material.
Features
- One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
- With large screen LCD screen display, directly display hardness value, dwell time, conversion hardness value, etc.
- Menu structure interface, easy operation.
- With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard hardness blocks).
- Digital eyepiece with encoder, only click the button on encoder, the D1, D2 value will input machine automatically. No need manually input the value of diagonal length. Easy operation, greatly improve working efficiency, and test result more accurate.
- With built-in printer, test result can be printed out directly.
- With RS232 communication port, purchase our data transfer software via RS232 port can save test data to computer and by software can control machine (for Automatic turret machine).
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000DM | BMVH-1000DA |
Turret | Manual turret | Automatic turret |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
Hardness range | 5-3000HV | |
Min measuring unit | 0.01µm | |
Data display | LCD screen | |
Data output | built-in printer, RS-232 port | |
Maximum height allowed for testing | 90mm | |
Throat depth | 95mm | |
X-Y Testing table | Dimension: 100x100mm Max movement: 25x25mm | |
Force loading type | Automatic (Loading, Dwell, Unloading) | |
Magnification | Eyepiece: 10X; Objective: 10X (observation use); 40X (measuring use) Total: 100X (observation); 400X (Measuring) |
|
Duration time | 1~99s | |
Power supply | AC220V±5%, 50-60Hz | |
Machine size | 405*290*480mm; Net weight: 40kg | |
Package size | 530x350x820mm; Gross weight: 59kg |
Accessories
- Weight shaft : 1 pc
- X-Y Cross clamping testing table : 1 pc
- Filament clamping testing table : 1 pc
- Printer paper : 1 pc
- Gradienter : 1 pc
- Micro Vickers hardness block : 2 pcs
- Dust-proof cover : 1 pc
- Power cable : 1 pc
- Manual : 1 pc
- Weights : 6 pcs
- Flat clamping testing table : 1 pc
- Thin Specimen Testing Table : 1 pc
- Level adjustment screw : 4 pcs
- Objective 10X, 40X : 1+1 pc
- Eyepiece 10X : 1 pc
- Screw driver : 2 pcs
- Fuse (2A) : 2 pcs
- Product Certificate : 1 pcs
Software Description
Download Cataloge
ENQUIRY
Digital Micro Vickers Hardness Tester
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
- Glass, chip and ceramic material.
Features
- One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
- With large screen LCD screen display, directly display hardness value, dwell time, conversion hardness value, etc.
- Menu structure interface, easy operation.
- With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard hardness blocks).
- Digital eyepiece with encoder, only click the button on encoder, the D1, D2 value will input machine automatically. No need manually input the value of diagonal length. Easy operation, greatly improve working efficiency, and test result more accurate.
- With built-in printer, test result can be printed out directly.
- With RS232 communication port, purchase our data transfer software via RS232 port can save test data to computer and by software can control machine (for Automatic turret machine).
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000-1BM | BMVH-1000-1BA |
Turret | Manual turret | Automatic turret |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
|
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
Hardness range | 1-4000HV | |
Min measuring unit | 0.01µm | |
Data display | Large LCD screen | |
Data output | built-in printer, RS-232 port | |
Test space | 90mm * 95mm (Height * Throat Depth) | |
X-Y Testing table | Dimension: 100x100mm Max movement: 25x25mm | |
Force loading type | Automatic (Loading, Dwell, Unloading) | |
Magnification | Eyepiece: 10X; Objective: 10X (observation use); 40X (measuring use); Total: 100X (observation); 400X (Measuring) | |
Duration time | 1~99s | |
Power supply | AC220V±5%, 50-60Hz | |
Machine size | 405*290*480mm; Net weight: 40kg | |
Package size | 550x370x720mm; Gross weight: 56kg |
Accessories
- Weight shaft : 1 pc
- Weights : 6 pcs
- X-Y Cross clamping testing table : 1 pcs
- Flat clamping testing table : 1 pc
- Thin Specimen Testing Table : 1 pc
- Micro Vickers hardness block : 2 pcs
- Printer paper : 1 pc
- Level adjustment screw : 4 pcs
- Gradienter : 1 pc
- Objective 10X, 40X : 1+1 pc
- Power cable : 1 pc
- Eyepiece 10X : 1 pc
- Dust-proof cover : 1 pc
- Screw driver : 2 pcs
- Fuse (2A) : 2 pcs
- Manual Book & Quality Certificate : 1 pc
Software Description
Download Cataloge
ENQUIRY
Digital Micro Vickers Hardness Tester With Multifunctional Large Screen
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburizationlayer, surface hardening layer, galvanized coating.
- Glass, chip and ceramic material.
Features
- Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
- The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
- Industrial digital touch screen can direct display hardness value, conversion hardness value, testing method, testing force, dwell time, easy for operator to save the data.
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000MT | BMVH-1000AT |
Turret | Manual Turret | Automatic Turret |
Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Loading speed | ≤0.05mm/sec | |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | |
Min. measuring unit | 0.25μm | |
Hardness value rang | 5HV-3000HV | |
Hardness Value of Reading | Digital LCD Screen | |
Eyepiece | 10X manual analog eyepiece | |
Objective lens | 10X (observe), 40X (Measurement) | |
Total magnification | 100X (For Observation) , 400X (For Measurement) | |
Loading method | Automatically (Load, dwell and unload the testing force) | |
Duration time | 1-60s (each step is 1 second) | |
Maximum height | 90mm | |
Throat depth | 95mm | |
Instrument size and Net weight | 405*290*480mm (L×W×H) 40kg | |
Packing size and Gross weight | 580x345x580mm( LxWxH) 55kg | |
Light Source | LED cold light source | |
Power Supply | 220V + 5%, 50/60 Hz (110V is available) | |
X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Accessories
- Weights shaft : 1 pc
- Weights : 6 pcs
- 10X manual micrometer eyepiece : 1 pc
- 10X objective lens : 1 pc
- 40X objective lens : 1 pc
- Vickers diamond indenter : 1 pc
- X-Y Testing Table : 1 pc
- Flat fixture : 1 pc
- Sheet specimen fixture : 1 pc
- Standard block of hardness : 2 pcs
- Spare fuse 2A : 2 pcs
- Horizontal adjusting screw : 4 pcs
- Power line : 1 pc
- Dust proof cover : 1 pc
- Manual Book : 1 pc
- Certificate of quality : 1 pc
- Screwdriver : 2 pcs
- Warranty Card : 1 pc
- Accessory box : 1 pc
- Level bubble Note: For avoid potential risks, Will remove level bubble if ship by air, since liquid materials are forbidden by airlines : 1 pc
Software Description
Download Cataloge
ENQUIRY
Micro Vickers Hardness Tester With Touch Screen
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating.
- Glass, chip and ceramic material.
Features
- One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
- With large screen LCD screen display, directly display hardness value, dwell time, conversion hardness value, etc.
- Menu structure interface, easy operation.
- With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard hardness blocks).
- Digital eyepiece with encoder, only click the button on encoder, the D1, D2 value will input machine automatically. No need manually input the value of diagonal length. Easy operation, greatly improve working efficiency, and test result more accurate.
- With built-in printer, test result can be printed out directly.
- With RS232 communication port, purchase our data transfer software via RS232 port can save test data to computer and by software can control machine (for Automatic turret machine)
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000-1MT | BMVH-1000-1AT |
Turret | Manual Turret | Automatic Turret |
Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Loading speed | ≤0.05mm/sec | |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | |
Min. measuring unit | 0.01μm | |
Hardness value rang | 5HV-3000HV | |
Hardness Value of Reading | Digital LCD Screen | |
Eyepiece | 10X digital eyepiece | |
Objective lens | 10X (observe), 40X (Measurement) | |
Total magnification | 100X (For Observation) , 400X (For Measurement) | |
Loading method | Automatically (Load, dwell and unload the testing force) | |
Duration time | 1-99s (each step is 1 second) | |
Maximum height | 90mm | |
Throat depth | 95mm | |
Instrument size and Net weight | 405*290*480mm (L×W×H) 40kg | |
Packing size and Gross weight | 580x345x580mm( LxWxH) 55kg | |
Light Source | LED cold light source | |
Power Supply | 220V + 5%, 50/60 Hz (110V is available) | |
X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 | |
Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece, Filament Clamping Test Table |
Accessories
- Weights shaft : 1 pc
- Weights : 6 pcs
- 10X digital eyepiece : 1 pc
- 10X objective lens : 1 pc
- 40X objective lens : 1 pc
- Vickers diamond indenter : 1 pc
- X-Y Testing Table : 1 pc
- Flat fixture : 1 pc
- Sheet specimen fixture : 1 pc
- Standard block of hardness : 2 pcs
- Spare fuse 2A : 2 pcs
- Horizontal adjusting screw : 4 pcs
- Power line : 1 pc
- Dust proof cover : 1 pc
- Manual Book : 1 pc
- Certificate of quality : 1 pc
- Screwdriver : 2 pcs
- Warranty Card : 1 pc
- Accessory box :1 pc
- Level bubble Note: For avoid potential risks, Will remove level bubble if ship by air, since liquid materials are forbidden by airlines : 1 pc
Software Description
Download Cataloge
ENQUIRY
Digital Micro Vickers Hardness Tester With Touch Screen
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating.
- Glass, chip and ceramic material.
Features
- Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
- The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
- Industrial digital touch screen can direct display hardness value, conversion hardness value, testing method, testing force, dwell time, easy for operator to save the data.
- Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specifications
Model No. | BMVH-1000MTS | BMVH-1000ATS |
Turret | Manual Turret | Automatic Turret |
Testing force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Loading speed | ≤0.05mm/sec | |
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | |
Min. measuring unit | 0.25μm | |
Hardness value rang | 5HV-3000HV | |
Data Display | 5.6’’ touch screen & Computer monitor software window | |
Eyepiece | 10X manual analog eyepiece | |
Objective lens | 10X (observe), 40X (Measurement) | |
Total magnification | 100X (For Observation) , 400X (For Measurement) | |
Loading method | Automatically (Load, dwell and unload the testing force) | |
Duration time | 1-60s (each step is 1 second) | |
Software System | Professional HV / HK hardness measurement software, can work with win10 computer system very well. Support automatic measurement & manual measurement, can generate test report in word / Excel format. | |
Camera | 5 million pixel digital camera | |
Maximum height | 90mm | |
Throat depth | 95mm | |
Instrument size and Net weight | 405*290*480mm (L×W×H) 40kg | |
Packing size and Gross weight | 550x370x720mm( LxWxH) 56kg | |
Light Source | LED cold light source | |
Power Supply | 220V + 5%, 50/60 Hz (110V is available) | |
X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Accessories
- Weights shaft :1 pc
- Weights : 6 pcs
- 10X manual micrometer eyepiece : 1 pc
- 10X objective lens : 1 pc
- 40X objective lens : 1 pc
- Vickers diamond indenter : 1 pc
- X-Y Testing Table : 1 pc
- Level bubble : 1 pc
- Flat fixture : 1 pc
- Sheet specimen fixture : 1 pc
- Standard block of hardness : 2 pcs
- Spare fuse 2A : 2 pcs
- Horizontal adjusting screw : 4 pcs
- Power line : 1 pc
- Dust proof cover : 1
- Manual Book, QC certificate : 1 pc
- Software system & camera : 1 pc
- Screwdriver : 2 pcs
- Warranty Card : 1 pc
- Accessory box : 1 pc
Software Description
Download Cataloge
ENQUIRY

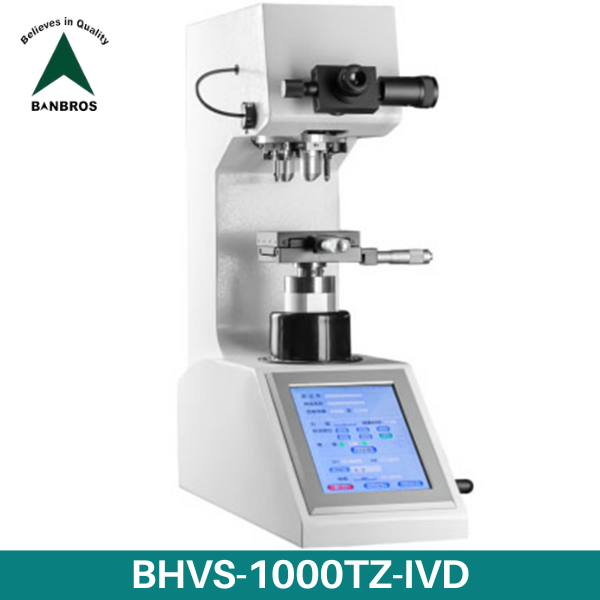

Micro Vickers Hardness Tester With Software System
Description
Application
Features
- It’s equipped with Vickers, Knoop indenter and 4 kinds of objective lens.Vickers hardness and Knoop hardness values can be measured simultaneously.
- Adopt optical cross guide rail lifting mechanism, force value is accurate, the image is clear, is an ideal high-end micro hardness tester.
- Installed with Vickers, Knoop head and 4 objectives;
- During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically locates accurately.
- Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
- LED light source, long life, no need to replace the bulb;
- Equipped with built-in camera, the image is clearer;
- It can be calibrated according to standard hardness blocks or length scales, and the hardness can be corrected automatically according to high, medium and low hardness values, so that the hardness value is more accurate.
- 8 inch touch screen interface, easy to operate;
- Data statistics save, easy to query and print out;
- Various hardness values convert to each other;
- Test setting parameters are protected by password;
- At least 3 languages such as Chinese and English are available;
- Equipped with RS-232 interface for computer connection;
- Optional maximum test force 2kg.
Specifications
Model No. | HVS-1000TZ-IVD |
Test force | 10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N) |
Meet standard | GB/T4340.2, GB/T 18449.2,ASTM E92 |
Measurement resolution | 0.01μm |
Data display output | 8-inch touch screen displays readings, stores 20 test results, has a built-in printer and RS-232 interface, and an optional USB flash drive |
Conversion scale | Rockwell, Brinell |
Hardness test range | 8 ~ 2900 HV/HK, |
Test force application method | Automatic (loading, preserving, unloading) |
Eyepiece magnification | 10X |
Total magnification | 400X, 200X, 100X, 50X (test, observation) (500X optional) |
Test force dwell time | 1-99s |
Max. allowable specimen height | 100mm |
Distance from indenter to wall | 130 mm |
X-Y platform | Size: 100*100mm Maximum movement: 25*25mm |
Size | 540*260*650mm |
Weight | About 50 kg |
Power supply | AC220V + 5%, 50 to 60 hz |
Accessories
Item | Qt’y | Item | Qt’y |
Weight shaft | 1 | Weight | 6 |
Micrometer eyepiece (DHV-1000-10X) | 1 | Micro hardness block (high block, medium block) | Each 1 |
X-Y table | 1 | Nylon universal sole | 4 |
Level | 1 | Spare fuse (2A) | 2 |
Power cord | 1 | Dust cover | 1 |
Product certificate, warranty card | 1 | Instructions | 1 |
Printing paper | 1 | Touch pen | 1 |
Screwdriver | 2 |
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Digital Display Micro Hardness Tester
Description
BMVH-1XYZ Fully Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
Application
Features
- Fully Automation: With click of a button, system starts automatic test and measurement process in indentation, auto-focusing, measuring, and hardness curve plotting;
- Motorized XY Sample Stage: System provides motorized XY sample stage, with XY stage table dimensions 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 µm as standard. Can be controlled by joystick and by software. Table dimensions and travel lengths can be customized.
- Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices etc.;
- Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths;
- Hardness curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk; Automatically marks data that are out of specification limits; May load the depth template file for convenience.
- Conversion, compensation, and validation: Converts HV to other hardness scales, simultaneously; Validates the test results with sample dimensions; Compensates the test results with respect to sample cylindrical/spherical diameters;
- Data archiving: Measurement data and images can be saved in one file for later processing;
- Test report: Automatically generates WORD, EXCEL or PDF report with customizable template; May enter user additional information in report.
- Data output by network: Sends data to TCP/IP server in network to enterprise database.
- Knoop Scale, Fracture Toughness: Can be configured for Knoop Scale measurement; Also, for Fracture Toughness measurement by indentation;
- Other functionalities: Image/Video capture/save; Geometric measurements; Document entries, etc.;
- Stable Structure design: Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent;
- Multi-functions: Support automatic measuring with computer and software, also support manual test by machine independently. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switches optical path;
Specifications
Model No. | BMVH-1XYZ | |
Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
N | 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N | |
Test Range | 1HV-2967HV | |
Test Mode | HV/HK | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Turret | Automatic Shifting | |
Conversion Scale | HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB | |
Data Output |
Built-in Printer; Computer screen (software window) WORD or EXCEL Report with Curve Chart |
|
Hardness Reading | Indentation Displaying and Automatic Measuring on PC | |
Objective | 10X (Observe), 40X (Measure) | |
Eyepiece | Digital 10X eyepiece with built-in encoder, auto calculate | |
Total Magnification | 100X, 400X | |
Resolution | 0.0625μm, measuring range 200um | |
Dwell Time | 5-99s, each step 1 second | |
Machine display | Touch screen | |
Light Source | LED cold light source (can be continuous use for 24 hours, no heat generates ensure stable working, servicing life can reach 100,000 hours) | |
Max. Height of Specimen | 80mm | |
Throat | 110mm | |
Power Supply | AC220V,50Hz | |
Execute Standard | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 | |
Dimension | 215×450×468mm, Packing Dimension: 560×390×810mm | |
Weight | Net Weight: 45kg, Gross Weight: 60kg |
Accessories
Item Name | Q’ty | Item Name | Q’ty |
Professional Automatic Version HV Measuring Software | 1 | Flat fixture | 1 |
Software USB Dongle | 1 | Sheet specimen fixture | 1 |
Motorized Test Table Control Box | 1 | Standard block of hardness | 2 |
Motorized X-Y Testing Table | 1 | Spare fuse 2A | 2 |
Digital camera & camera adapter | 1 | Horizontal adjusting screw | 4 |
Weights shaft | 1 | Power line | 1 |
Weights | 6 | Dust proof cover | 1 |
10X digital eyepiece | 1 | Manual Book | 1 |
10X objective lens | 1 | Certificate of quality | 1 |
40X objective lens | 1 | Screwdriver | 2 |
Vickers diamond indenter | 1 | Warranty Card | 1 |
|
Accessory box | 1 |
Software Description
Download Cataloge
ENQUIRY
Automatic Digital Micro Vickers Hardness Tester
Description
Application
- Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
- It is equipped with Vickers, Knoop indenter and high power (40X/50X) and low power objective lens (10X/20X) at the same time.
- During the test, the indenter and the objective lens automatically switch to each other, and the automatic positioning of the test point is accurate.
- The lifting mechanism with optical cross guide rail is adopted to ensure the guiding accuracy. Rack and pinion two stage force transmission, can realize fast and stable force transmission;
- Light source using LED lamp, long life, no need to replace the bulb.
- Can be equipped with a built-in camera, the image is clearer.
- It can be calibrated according to the standard hardness block or length scale, and it can automatically correct the hardness according to the high, middle and low hardness values, and the hardness values are more accurate.
- 8”touch screen interface, easy to operate.
- All test parameters and results are stored on USB flash disk in Excel format, which is convenient for data processing and test report output.
- Various hardness values are converted to each other.
- Test setting parameters are protected by password;
- At least 3 languages, including Chinese and English, are available.
- With RS-232 interface, can be connected with the computer.
- Adopt optical cross guide rail lifting mechanism, force value is accurate, the image is clear.
- Optional maximum test force 2kg.
Specifications

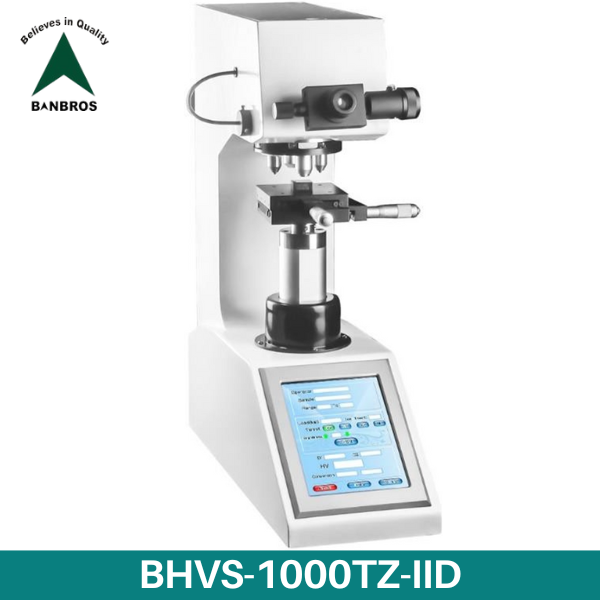

Model No. | BHVS-1000TZ- IID |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, GB/T 18449.2, ASTM E92 |
Min measuring unit | 0.01µm |
Conversion Scale | Rockwell, Brinell |
Hardness measuring range | 8~2900HV |
Method of testing force applied |
Automatic (Loading, Dwelling, Unloading) |
Turret Type | Automatic |
Test microscope magnification | 400X(Measuring),100X (test, observation) (Optional: 200X, 500X) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Data output | 8 " touch screen display reading, can store 20 kinds of test results, equipped with U disk, optional built-in printer and RS-232 interface |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 130mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Weight shaft | 1 | Weight | 6 |
Micrometer eyepiece(10X) | 1 | X-Y table | 1 |
Vickers hardness block (high block, middle block) |
1 each | Touch pen | 1 |
Level | 1 | Plastic dust cover | 1 |
Hexagon wrench (2.5mm) | 1 | Nylon universal sole(Adjusting screw) | 4 pcs. |
Power line | 1 | Spare fuse (2A) | 2 pcs. |
Printing paper | 1 |
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Micro Hardness Tester
Description
Application
- Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
1. Installed with Vickers indenter and 3 objectives;
2. During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically locates accurately.
3. Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
4. LED light source, long life, no need to replace the bulb;
5. Equipped with built-in camera, the image is clearer;
6. It can be calibrated according to standard hardness blocks or length scales, and the hardness can be corrected automatically according to high, medium and low hardness values, so that the hardness value is more accurate.
7. 8 inch touch screen interface, easy to operate;
8. Data statistics save, easy to query and print out;
9. Various hardness values convert to each other;
10. Test setting parameters are protected by password;
11. At least 3 languages such as Chinese and English are available;
12. Equipped with RS-232 interface for computer connection;
13. Optional maximum test force 2kg.
Specifications

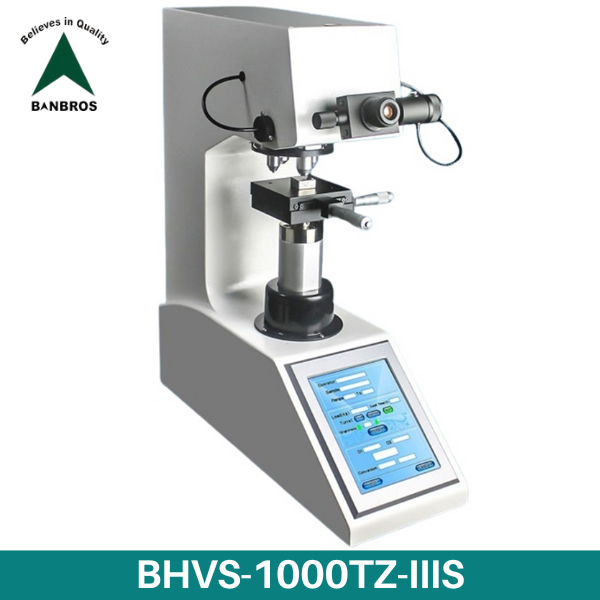

Model No. | BHVS-1000TZ-IIIS |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, ISO 6507-2, ASTM E384 |
Min measuring unit | 0.01µm |
Conversion Scale | Rockwell, Brinell |
Hardness measuring range | 8~2900HV |
Data output | 8-inch touch screen displays readings, stores 20 test results, has a built-in printer and RS-232 interface, and an optional USB flash drive |
Method of testing force applied |
Automatic (Loading, Dwelling, Unloading) |
Turret Type | Automatic |
Magnification of eyepiece | 10X |
Magnification of objective lens | Choose three from 40X, 20X, 10X, 5X (test, observation) (50X optional) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 130mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Weight shaft | 1 | Weight | 6 |
Micrometer eyepiece | 1 | Microhardness block (high block, medium block) | 1 each |
X-Y table | 1 | Nylon universal sole | 4 |
Level | 1 | Spare fuse (2A) | 2 |
Power cord | 1 | Dust cover | 1 |
Product certificate, warranty card | 1 | Instructions | 1 |
Printing paper | 1 | Touch pen | 1 |
Screwdriver | 2 |
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Digital Display Microhardness Tester
Description
Application
- Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
- Automatic turret shifting between indenter and objective lens
- Standard 8-level force, from 10gf (0.098N) to 1kgf (9.8N), 2Kgf (19.6N) is optional, users can customize the test force.
- After measuring the indentation diagonal length, the system will automatically calculate and display the hardness value.
- Both two objectives can be used to test hardness value.
- Based on the standard block of different forces, the hardness value can be corrected automatically.
- 8” Touch-screen interface, easy to operate, multi-language is available.
- Testing data can be saved into U disk directly in EXCEL format, which is convenient for easy editing and processing.
- The information of test samples, operator etc. can be input and saved.
- Password can be set to protect setting parameters.
- Measured hardness value can be automatically converted to other scales.
- Modular design, easy maintenance, large space for sample.
- Optional image measuring system can be equipped with this hardness tester so as to connect with computer for automatic operation.
Specifications
Model No. | BHVS-1000TZ |
Test force |
10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf(0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, ISO 6507-2, ASTM E384 |
Min measuring unit | 0.01µm |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Hardness measuring range | 8~2900HV |
Method of testing force applied |
Automatic (Loading, Dwelling, Unloading) |
Turret Type | Automatic |
Test microscope magnification | 400X(Measuring),100X (observation) (Optional 50X, 200X, 500X, Maximum 1000X) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Data output | Touch-screen display, RS232 interface & Printer. USB disk interface is optional to replace printer |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 135mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About : 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Axle weight | 1 | Weight | 6 |
Cross test sets | 1 | 10X eyepiece test | 1 |
Vickers hardness block (high block, middle block) |
1 each | USB disk (Optional) | 1 |
Level | 1 | Plastic dust cover | 1 |
Screwdriver | 2 | Adjusting screw | 4 pcs. |
Power line | 1 | Spare fuse (2A) | 2 pcs. |
Product Manual | 1 | Product certification | 1 |
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Digital Display Microhardness Tester
Description
Application
- Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
- Simplified version without printer and interface, single lens for measurement.
- Manual turret shifting between indenter and objective lens
- Standard 8-level force, from 10gf (0.098N) to 1kgf (9.8N), 2Kgf (19.6N) is optional, users can customize the test force.
- After measuring the indentation diagonal length, the system will automatically calculate and display the hardness value.
- Based on the standard block of different forces, the hardness value can be corrected automatically.
- ” Touch-screen interface, easy to operate, multi-language is available.
- esting data can be saved into U disk directly in EXCEL format, which is convenient for easy editing and processing (Optional USB interface).
- The information of test samples, operator etc. can be input and saved.
- Password can be set to protect setting parameters.
- Measured hardness value can be automatically converted to other scales.
- Modular design, easy maintenance, large space for sample.
- Optional image measuring system can be equipped with this hardness tester so as to connect with computer for automatic operation.
Specifications
Model No. | BHVS-1000TS |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, ISO 6507-2, ASTM E384 |
Min measuring unit | 0.01µm |
Conversion Scale | 8~2900HV |
Hardness measuring range | 8~2900HV |
Method of testing force applied | Automatic (Loading, Dwelling, Unloading) |
Turret Type | Manual |
Test microscope magnification |
400X (Measuring),100X (observation) (Optional 50X, 200X, 500X, Maximum 1000X) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Data output | Touch-screen display, RS232 interface & Printer. USB disk interface is optional to replace printer |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 135mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Axle weight | 1 | Weight | 6 |
Cross test sets | 1 | 10X eyepiece test | 1 |
Vickers hardness block (high block, low block) |
1 each | USB disk (Optional) | 1 |
Level | 1 | Plastic dust cover | 1 |
Screwdriver | 2 | Adjusting screw | 4 Pcs. |
Power line | 1 | Spare fuse (2A) | 2 pcs. |
Product Manual | 1 | Product certification | 1 |
Software Description
Download Cataloge
ENQUIRY
Touch Screen Digital Display Micro Vickers Hardness Tester
Description
Application
- Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
- Manual turret shifti ng between indenter and objective lens
- Standard 8-level force, from 10gf (0.098N) to 1kgf (9.8N), 2Kgf (19.6N) is optional, users can customize the test force.
- After measuring the indentation diagonal length, the system will automatically calculate and display the hardness value.
- Both two objectives can be used to test hardness value.
- Based on the standard block of different forces, the hardness value can be corrected automatically.
- 8” Touch-screen interface, easy to operate, multi-language is available.
- Testing data can be saved into U disk directly in EXCEL format, which is convenient for easy editing and processing (Optional USB interface).
- The information of test samples, operator etc. can be input and saved.
- Password can be set to protect setting parameters.
- Measured hardness value can be automatically converted to other scales.
- Modular design, easy maintenance, large space for sample.
- Optional image measuring system can be equipped with this hardness tester so as to connect with computer for automatic operation.
Specifications
Model No. | BHVS-1000BT |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, ISO 6507-2, ASTM E384 |
Min measuring unit | 0.01µm |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Hardness measuring range | 8~2900HV |
Method of testing force applied | Automatic (Loading, Dwelling, Unloading) |
Turret Type | Manual |
Test microscope magnification | 400X(Measuring),100X (observation) (Optional 50X, 200X, 500X, Maximum 1000X) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Data output | Touch-screen display, RS232 interface & Printer. USB disk interface is optional to replace printer |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 135mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Axle weight | 1 | Weight | 6 |
Cross test sets | 1 | 10X eyepiece test | 1 |
Vickers hardness block (high block, low block) |
1 each | USB disk (Optional) | 1 |
Level | 1 | Plastic dust cover | 1 |
Screwdriver | 2 | Adjusting screw | 4 each |
Power line | 1 | Spare fuse (2A) | 2each |
Product Manual | 1 | Product certification | 1 |
Software Description
Download Cataloge
ENQUIRY
Digital Display Touch Screen Micro Vickers Hardness Tester
Description
Application
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Features
- BHVS-1000Z adopts touch screen display,, convenient for users to choose; The operation interface adopts menu-type structure. Hardness scale HV or HK can be selected on the operation panel. During the test, the pressure head and objective lens automatically switch with each other, and the test point is automatically positioned accurately; Various hardness values can be converted to each other; The brightness of the light source can be adjusted.
- The optical cross guide rail is adopted to ensure the guiding accuracy; The speed and stability of transmission can be realized by using the two-stage pinion and rack transmission. High trBHansmission ratio high precision worm gear worm, ensure more accurate transmission force.
- Can be equipped with a built-in camera, the image is clearer
- Can be calibrated according to the standard hardness block or length scale, so that the hardness value more accurate in line with the requirements.
- Eyepiece structure with digital encoder, and the touch screen directly displays the hardness value and D1 and D2 values.
- With automatic turret structure, the indenter objective lens can be switched automatically.
Specifications
Model No. | BHVS-1000Z |
Test force |
10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf(0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) |
Standard Conformed to | GB/T 4340.2, ISO 6507-2, ASTM E92 |
Min measuring unit | 0.01µm |
Conversion Scale | Rockwell, Brinell |
Hardness measuring range | 8~2900HV |
Method of testing force applied |
Automatic (Loading, Dwelling, Unloading) |
Turret Type | Automatic |
Test microscope magnification | 400X(Measuring),100X (observation) |
Test force dwell time | 1~99s |
X-Y test sets | Dimension: 100*100mm Maximum travel 25*25mm |
Data display output | 8” Touch-screen display, can store 20 kinds of test results |
Maximum specimen height | 100mm |
Distance from the center to the outer wall of the indenter | 130mm |
Power supply | AC 220V or 110V, 50 or 60Hz |
Dimensions | 540*260*650mm |
Net Weight | About 50Kg |
Accessories
Item | Qt’y | Item | Qt’y |
Weight shaft | 1 | Weight | 6 |
Micrometer eyepiece | 1 | X-Y table | 1 |
Vickers hardness block (high block, middle block) |
1 Each |
Nylon universal sole (Adjusting screw) |
4 |
Level | 1 | Plastic dust cover | 1 |
Screwdriver | 2 | Touch pen | 1 |
Power line | 1 | pare fuse (2A) | 2 |
Hexagon wrench (2.5mm) | 1 |
Software Description
Download Cataloge
ENQUIRY
Auto Turret Touch Screen Hardness Tester
Description
Application
Features
- This measuring system can be equipped with various kinds of Vickers Hardness Tester to upgrade unit tester to measuring system;
- The computer controls the hardness tester, such as turret, light illumination adjustment (only can be equipped with BHVS- Z series);
- It is applicable to Micro Vickers and Vickers with max. testing forces to 1, 5, 10, 30, 50Kgf;
- With clear image, indentation measurement by automatic or manual;
- Digital X axis movement value can be input into program and generate hardened layer depth distribution curve automatically;
- Calibration by micrometer or test block, can be automatically calibrated;
- Hardness conforms to ASTM standard to convert to other hardness scales, with hardness value statistics and sound alarm beyond limitation;
- Testing report can be customized as per user’s requirement, all the testing data can be saved permanently, easy to check.
- The image is clear, automatic / manual measurement of the indentation size;
- The digital sample position, automatically entered into the computer
- Automatic generation of hardness layer depth profile
- Calibration using micrometer or hardness block calibration, automatic calibration;
- Hardness by GB and ASTM converted to other hardness; statistical Hardness Value exceed alarm;
- Customized test reports, all test data is always saved for easy historical inquiry.
- The program automatically calculates the hardness profile along the depth and effective case depth
- X, Y Axis Location Digital Accuracy: 1μm
- X axis location value can enter into hardness measuring program directly, the program calculate the hardness value along depth distribution curve and effective hardened layer depth automatically.
Specifications
Accessories
Software Description
- Camera 5.0M pixel: 1 pc.
- Interface tube: 1 pc.
- U-disk containing the software and manuals: 1 pc.
- Dongle: 1 pc.
- Digital X-Y Stage: 1 pc.
- Digital accuracy of X & Y axis: 1μm.
- The position of X axis can enter into the hardness measuring program directly, and the program can automatically calculate hardness along depth distribution curve and effective hardened layer depth.
Download Cataloge
ENQUIRY
Vickers Ccd Image Measuring & Controlling System
Description
Application
Features
- This system can match a variety of Vickers hardness testers to upgrade unit hardness tester to computer measuring system.
- This measuring system can be integrated with the hardness testers BHVS- Z series; computer-controlled for auto turret and brightness adjustment etc.
- Suitable for micro and Vickers hardness tester, the maximum test force can be 1, 5, 10, 30, 50Kg.
- Image with high resolution and indentation measurement by auto or manual;
- Digital X-axis value, and automatically enter the program automatically generates the deep layer of hardness distribution curve (optional);
- Calibration using micrometer or hardness block, can be calibrated automatically;
- Hardness converted to other hardness scales according to ASTM standard.
- Statistics for hardness values and alarm for hardness values out of range;
- Easy to install, use laptops instead of desktop computers;
- Interface is simple and easy to use without training;
- Test reports can be customized; all testing data can be saved for long time and easy for historical inquiry.
- Digital camera with 1280*1080 pixels, 1/2-inch, USB 2.0
Specifications
Accessories
- Digital X-Y Stage 1 pc.
- Digital accuracy of X & Y axis: 1μm.
- The position of X axis can enter into the hardness measuring program directly, and the program can automatically calculate hardness along depth distribution curve and effective hardened layer depth.
- Lenovo Computer 1 pc.
Software Description
Download Cataloge
ENQUIRY
Vickers Ccd Image Measuring System
Description
- Manual turret shifting between indenter and objective lens.
- Large 8” touch screen, direct visual display and interactive operating interface.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Application
Features
- Manual turret shifting between indenter and objective lens.
- Large 8” touch screen, direct visual display and interactive operating interface.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. | BHVS-1000T |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV, HS |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025µm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table |
Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil: 1 pc.
- Thin shaft anvil: 1 pc.
- Thin plate anvil: 1 pc.
- Flat nose pliers: 1 pc.
- Large V-notch anvil: 1 pc.
- Small V-notch anvil: 1 pc.
- Diamond pyramid penetrator: 1 pc.
- Micro-Vickers standardized block: 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Touch Screen Digital Display Micro Vickers Hardness Tester
Description
Application
Features
- Manual turret shifting between indenter and objective lens.
- Large LCD screen display, easy and convenient operation.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- The hardness value can be corrected within a certain range by standard scale.
- With the database function, the testing result can be saved automatically up to 200 data.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. | BHVS-1000 |
Test force |
10, 25, 50, 100, 200, 300, 500, 1000gf (0.09807, 0.2452, 0.4904,0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025µm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table |
Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil: 1 pc.
- Thin shaft anvil: 1 pc.
- Thin plate anvil: 1 pc.
- Flat nose pliers: 1 pc.
- Large V-notch anvil: 1 pc.
- Small V-notch anvil: 1 pc.
- Diamond pyramid penetrator: 1 pc.
- Micro-Vickers standardized block: 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Digital Display Micro Vickers Hardness Tester
Description
Application
Features
- Large 8” touch screen, direct visual display and interactive operating interface.
- Input D1 & D2 value from touch screen and hardness value will be displayed on LCD directly.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- The turbo-worm elevating system can greatly improve the testing stability and accuracy.
- HD measurement and observation - dual objective lens combination, combined with the HD micrometer eyepiece, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Knoop indenter can be selected to measure the Knoop hardness.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.
- It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
Model No. | BHV-1000T |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf,(0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N) |
Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HB, HV, HS |
Hardness measuring range | 5~5000HV |
Measuring resolution | 0.025µm |
Hardness resolution | 0.1HV |
Max Height of Specimen | 120mm |
Depth of throat | 110mm |
X-Y Testing table |
Dimension: 100*100mm Max. travel: 25*25mm grade division of micrometer head: 0.01mm |
Carried standards | GBT4340.2, ISO6507-2, ASTM E384 |
Magnification of eyepiece | 10X |
Magnification of objective lens | 10X, 40X |
Total magnification | 100X, 400X |
Data output | LCD display, wireless blue-tooth printer, RS232 and USB interface |
Dwelling time | 1~99s |
Power supply | AC 220V or 110V, 50 or 60Hz |
Overall Dimensions | 530*290*490mm |
Net weight | About 45Kg |
Accessories
- X-Y Coordinate test anvil: 1 pc.
- Thin shaft anvil: 1 pc.
- Thin plate anvil: 1 pc.
- Flat nose pliers: 1 pc.
- Large V-notch anvil: 1 pc.
- Small V-notch anvil: 1 pc.
- Diamond pyramid penetrator: 1 pc.
- Micro-Vickers standardized block: 2 pcs.
Software Description
Download Cataloge
ENQUIRY
Touch Screen Micro Vickers Hardness Tester
Description
BVHT-30XY Automatic Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
Application
Features
Semi-Automation: Manual do focus work, focusing done then click of a button, system starts automatic test and measurement process in indentation, measuring, and hardness curve plotting;
Motorized XY Sample Stage: System provides motorized XY sample stage, with XY stage table dimensions 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 μm as standard. Can be controlled by joystick and by software. Table dimensions and travel lengths can be customized.
Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices etc.
Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths.
Hardness curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk; Automatically marks data that are out of specification limits; May load the depth template file for convenience.
Conversion, compensation, and validation: Converts HV to other hardness scales, simultaneously; Validates the test results with sample dimensions; Compensates the test results with respect to sample cylindrical/spherical diameters.
Data archiving: Measurement data and images can be saved in one file for later processing.
Test report: Automatically generates WORD, EXCEL or PDF report with customizable template; May enter user additional information in report.
Data output by network: Sends data to TCP/IP server in network to enterprise database.
Knoop Scale, Fracture Toughness: Can be configured for Knoop Scale measurement; Also for Fracture Toughness measurement by indentation.
Other functionalities: Image/Video capture/save; Geometric measurements; Document entries, etc.
Stable Structure design: Adopted one time casting aluminium machine body and car painting technology, structure more stable and appearance more decent.
Multi-functions: Support automatic measuring with computer and software, also support manual test by machine independently. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path.
Specifications
Model | BVHT-30XY |
Turret | Automatic (motorized switch) |
Force loading | Automatic loading - dwell - unloading |
Testing Force | 0.2Kgf(1.96N) , 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 20Kgf(196.0N), 30Kgf(294.0N) |
Hardness Scale | HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30 |
Conversion Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Min measuring unit | 0.125μm |
Hardness range | 5-4000HV |
Eyepiece | 10X digital eyepiece with built-in encoder, automatic calculate data |
Objective | 10X, 20X |
Magnification | 100X (measurement), 200X (measurement); Measuring range:400um Both lens can do observe and measurement work directly |
Auto XY work table | 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 μm |
Dwell time | 1-99S (1 second per step) |
Data output | 5.6’’ touch screen display, built-in printer Computer screen (software window), WORD or EXCEL Report with Curve Chart |
Test space | 175mm x 125mm (Height x Depth) |
Power supply | AC220V,50Hz |
Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
Overall Dimension | 320*580*620mm |
Net weight | 75kg |
Packing size | 680*470*750cm |
Gross weight | 95kg |
Accessories
Item | Quantity | Item | Quantity |
Motorized XY table | 1 | Table controller | 1 |
10X digital eyepiece | 1 | Control software and camera | 1 |
Vickers hardness block | 2 | Accessory case | 1 |
10X objective lens | 1 | Spare Fuses (2A) | 2 |
20X objective lens | 1 | Production certificate | 1 |
Regulating Screw | 4 | Warranty card | 1 |
Dust cover | 1 | Manual book | 1 |
Software Description
Download Cataloge
ENQUIRY
Automatic Touch Screen Hardness Tester With Motorized Stage
Description
BMVH-1XY Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
Application
Features
- Semi-Automation: Manual do focus work, focusing done then click of a button, system starts automatic test and measurement process in indentation, measuring, and hardness curve plotting.
- Motorized XY Sample Stage: System provides motorized XY sample stage, with XY stage table dimensions 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 µm as standard. Can be controlled by joystick and by software. Table dimensions and travel lengths can be customized.
- Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices etc.
- Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths.
- Hardness curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk; Automatically marks data that are out of specification limits; May load the depth template file for convenience.
- Conversion, compensation, and validation: Converts HV to other hardness scales, simultaneously; Validates the test results with sample dimensions; Compensates the test results with respect to sample cylindrical/spherical diameters.
- Data archiving: Measurement data and images can be saved in one file for later processing.
- Test report: Automatically generates WORD, EXCEL or PDF report with customizable template; May enter user additional information in report.
- Data output by network: Sends data to TCP/IP server in network to enterprise database.
- Knoop Scale, Fracture Toughness: Can be configured for Knoop Scale measurement; Also for Fracture Toughness measurement by indentation.
- Other functionalities: Image/Video capture/save; Geometric measurements; Document entries, etc.
- Stable Structure design: Adopted one time casting aluminium machine body and car painting technology, structure more stable and appearance more decent.
- Multi-functions: Support automatic measuring with computer and software, also support manual test by machine independently. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path.
Specifications
Model | BMVH-1XY | |
Test Force |
gf N |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
Test Range | 1HV-2967HV | |
Test Mode | HV/HK | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Turret | Automatic Shifting | |
Conversion Scale |
HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB |
|
Data Output |
Built-in Printer; Computer screen (software window) WORD or EXCEL Report with Curve Chart |
|
Hardness Reading | Indentation Displaying and Automatic Measuring on PC | |
Focus | By manual | |
Objective | 10X (Observe), 40X (Measure) | |
Eyepiece | Digital 10X eyepiece with built-in encoder, auto calcu | |
Total Magnification | 100X , 400X | |
Resolution | 0.0625μm, measuring range 200μm | |
Dwell Time | 5-99s, each step 1 second | |
Machine display | Touch screen | |
Light Source |
LED cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
|
Max. Height of Specimen | 80mm | |
Throat | 110mm | |
Power Supply | AC220V,50Hz | |
Execute Standard | ISO 6507, ASTM E384, JIS Z2244, GB/ T 4340.2 | |
Dimension | 215×450×468mm, Packing Dimension: 560×390×810mm | |
Weight | Net Weight: 45kg, Gross Weight: 60kg | |
Accessories
Software Description
Camera | 5 Million Pixel digital camera |
X-Y Platform table | Auto move; 110X110mm |
Max. Move range: 25x25mm (X-Y axis direction) | |
Precision: less than 2um (resolution 0.002mm) | |
Move speed: 1-10mm/sec (adjustable) | |
Displacement repeatability ≤2um | |
Move direction: Support 8 directions move | |
Software Main Functions |
- System linkage: Through the communication interface it realizes the linkage between the system and the hardness tester.
- Pressure linkage: When converting test force, the system percepts the test force change and displays in real time.
- Turret linkage: The software controls the shifting between the objective and the indenter without manual control.
- Loading linkage: The software controls the loading without manual control.
- Measuring linkage: The software controls the turret, loading and directly reading the Vickers hardness value
- Light source linkage: Automatic focus.
- Image acquisition: Real time display of hardness image, store and print image.
- Automatic measurement: Automatically find the four vertices of indentation with fast speed and accurate data, there are many professional algorithms to be suitable for different indentation. It continuously and immediately measures at specified coordinates once loading.
- Automatic point search: The system automatically finds the best vertices near the four vertices of the indentation, greatly reduce the human error.
- Diagonal measurement: Click the top left and lower right corner of the indentation, you can read the hardness value.
- Four point measurement: Click the four point of the indentation and you can read the hardness value.
- Hardness conversion: According to the national standard, automatically convert the hardness value between Brinell, Rockwell, Vickers, Knoop, real-time display.
- Graphic report: Automatic record of measurement data, automatic generation of hardness-depth curves, saving or printing the hardness-depth curves and all indentation measurements. Save or print the indentation image and the current indentation hardness value. All the reports are saved in WORD file.
- Results statistics: Output the multiple measured results of indentations by EXCEL and automatically count the measurement number, maximum value, minimum value, average value, variance, etc. of hardness.
- Linkage control: Through the communication interface the system percepts the test force changes, controls the turret, loads and directly reads.
- Automatic displacement: Equipped with high precision X-Y automatic test table.
- Automatic identification: Leading indentation automatic identification technology, read D1 / D2 and HV value in 0.3 seconds.
- Stable performance: The indentation of non mirror polishing, uneven light, not in the center can be read automatically.
- Powerful functions: Such as manual reading, automatic reading, hardness conversion, depth-hardness curve, indentation image, picture and text report.
- Easy to use: Through the hardness block calibration, in line with the users’ habits. It can be normal used with half day training.
- Automatic reading: Original algorithm of automatic reading to automatic read a variety of indentation with fast speed and high accuracy.
- Good repeatability: It is automatic reading with high repeatability and can satisfy the requirement of professional users.
- Automatic scanning: Can automatically scan the sample edge and shape.
Download Cataloge
ENQUIRY
Automatic Motorized Micro Vickers Hardness Tester
Description
AVHD-1000XYsemi-automatic digital Micro hardness test system integrated with latest professional technique (optical projection, mechanic shift, electric control, digital projection, image analysis, and computer process etc.). The computer can control hardness tester and automaticworking stage via software, and indicate the indentation on the screen by digitization, then test the micro hardness of metal parts of non-metal material, plating, harden depth, coating thickness, film thickness, and the distance between two points by automatic.
reading or manual reading; meanwhile, it can take the picture of surface appearance of metal, and print in fixed ratio. This system breaks through the traditional test method,high accuracy, high repeatability test; it is the important equipment for analysis material.
In the Micro Vickers hardness test system, computer control the hardness tester working and receiving the information of hardness tester via RS-232 port; Computer control the control box of working stage through RS232, and control box control working stage moving and receiving the information; The optical signal of indentation via digital camera will transferindentation image to computer screen, then get the Vickers hardness value by manual or automatic reading.
Application
Features
Specifications
Model No. | AVHD-1000XY |
Automatic measurement model |
Automatic turret(Objective lens—indenter—objective lens automatically switches) Automatic loading/unloading (automatic loading—dwelling—unloading) Automatic X-Y stage+ automatic reading (Result displayed automatically) |
Follow standard | GB/T4340, ASTM E-384, International Standard ISO/DIS 6507-2, JIS B-7734 |
Load measurement | 10g(0.098N), 25g(0.245N), 50g(0.49N), 100g(0.98N), 200g(1.96N), 300g(2.94N), 500g(4.9N), 1000g(9.8N) |
Scale of hardness | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
Dwelling time | 1~99s(each step is 1 second) |
Indenter | Four pyramidal diamond indenters (Angle 136°±0.5°) |
Objective and eyepiece | 2 pcs 40X objective lens, 10 X eyepiece Omron brand |
The host screen | Big screen high definition LCD display |
Measuring specimen | Max height 85mm & Max depth 115mm |
Light source | LED cold light source (can be used 24hours continuously, does not produce heat, can adjust the strength of light). |
Data output | Configuration data transmission data software, can transmitted the measurement data to the computer in variety of formats,and can remove measurement data by software. |
Qualified determination function | Enter upper and lower limit, qualified and unqualified judge display and output. |
Hardness conversion | Converted to any hardness value of the scale and meet the international standard. |
Table size | 200*200mm |
Driver mode | Control the X- Y axis move freely by software |
Max mobile distance | 50*50mm |
Mini. Mobile distance | 1μm |
Move speed | Adjustable |
PC configuration | At least I3/500G/2G/19inch display |
camera | Effective physical pixel≥1.3 million |
Image processing system software | Through hardness tester serial communication, realize the system and hardness tester linkage. |
Real-time display hardness image, convert the signal through software, measure indentation hardness value automatically, measurement speed is less than 1s. | |
Can convert micro hardness tester to brinell, Rockwell hardness values, and real-time display. | |
Can operate edge detection for finish not good enough sample of indentation. | |
Horizontal line movement: horizontal distance, can set spacing arbitrarily and have zigzag measurement function. | |
Vertical movement: vertical distance movement, can set spacing arbitrarily and have zigzag measurement function. | |
Angle linear groups: arbitrary angle direction of the straight-line distance moving, can set spacing arbitrarily and have function of zigzag measurement. | |
Random number test 1: mouse click or input coordinates test at any position. | |
Random number test 2:test a reference coordinate system of the random number test mode. | |
Dot in the distance between any two points, can set spacing arbitrarily. | |
Matrix: can automatically recognize sample outline and to set the spacing of sample to overall hardness testing. | |
The origin position arbitrarily set, automatic reset, mechanical limit, and other professional functions. |
Accessories
- Micro vickers hardness tester host : 1 set
- Standard diamond Vickers indenter : 1 pc
- Objective lens (40×) : 2 Pcs
- Flat fixture, chip fixture, filaments fixture : Each 1 pc
- Standard test piece HV0.2, HV1 : 2 pcs
- 10X Omron micrometer eyepiece : 1 pcs
- Level adjust foot : 4 pcs
- Gradienter : 1 pc
- Dust cover : 1 pc
- Power line : 1 pc
- Fuse : 1 set
- Warranty card : 1 pc
- Assistive tools : 1 pc
- Operation and maintenance manuals : 1 pc
- I3/500G/2G Lenovo PC : 1 set
- 19inch Lenovo LED display : 1 pc
- Image analysis hardness control software : 1 pc
- X-Y automatic object stage and driving box (Table size 200×200mm,Journey 50×50mm) : 1 pc
- CCD Imagine collection machine (Physicalpixel≥1.3 million) : 1 pc
- System connection cable : 1 pc
- Camera interface : 1 pc
Software Description
Download Cataloge
ENQUIRY
Semi-Automatic Digital Micro Hardness Tester
Description
Model BMVH-2XYZ Fully Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on. It controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen. By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films. It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of fully automatic, high precision, high repeatability, and it is the important equipment for materials analysis.
Application
Features
- Fully Automation: With click of a button, system starts automatic test and measurement process in indentation, auto-focusing, measuring, and hardness curve plotting.
- Motorized XY Sample Stage: System provides motorized XY sample stage, with XY stage table Dimensions 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 μm as standard. Can be controlled by joystick and by software. Table dimensions and travel lengths can be customized.
- Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices etc.
- Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths.
- Hardness curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk; Automatically marks data that are out of specification limits; May load the depth template file for convenience.
- Conversion, compensation, and validation: Converts HV to other hardness scales, simultaneously, Validates the test results with sample dimensions, Compensates the test results with respect to sample cylindrical/spherical diameters.
- Data archiving: Measurement data and images can be saved in one file for later processing.
- Test report: Automatically generates WORD,EXCEL or PDF report with customizable template; May enter user additional information in report.
- Data output by network: Sends data to TCP/IP server in network to enterprise database.
- Knoop Scale, Fracture Toughness: Can be configured for Knoop Scale measurement; Also for Fracture Toughness measurement by indentation.
- Other functionalities: Image/Video capture/save; Geometric measurements; Document entries, etc.
- Stable Structure design: Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
- Multi-functions: Support automatic measuring with computer and software, also support manual test by machine independently. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path.
Specifications
Model No. | BMVH-2XYZ | |
Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf, 2000gf |
N | 0.098N, 0.246N, 0.49N,0.98N,1.96N,2.94N,4.90N,9.80N,19.6N | |
Test Range | 1HV-2967HV | |
Test Mode | HV/HK | |
Loading Method | Automatic (Loading/Dwell/Unloading) | |
Turret | Automatic Shifting | |
Conversion Scale | HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB | |
Data Output | Built-in Printer; Computer screen (software window) WORD or EXCEL Report with Curve Chart | |
Hardness Reading | Indentation Displaying and Automatic Measuring on PC | |
Objective | 10X (Observe), 40X (Measure) | |
Eyepiece | Digital 10X eyepiece with built-in encoder, auto calculate | |
Total Magnification | 100X, 400X | |
Resolution | 0.0625μm, measuring range 200um | |
Dwell Time | 5-99s, each step 1 second | |
Machine display | Touch screen | |
Light Source | LED cold light source | |
Max. Height of Specimen | 80mm | |
Throat | 110mm | |
Power Supply | AC220V, 50Hz | |
Execute Standard | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 |
Accessories
- Professional Automatic Version HV Measuring Software : 1Pc
- Software USB Dongle : 1Pc
- Motorized Test Table Control Box : 1Pc
- Motorized X-Y Testing Table : 1Pc
- Digital camera & camera adapter : 1Pc
- Weights shaft : 1Pc
- Weights : 6Pc
- 10X digital eyepiece : 1Pc
- 10X objective lens : 1Pc
- 40X objective lens : 1Pc
- Screwdriver : 2Pc
- Accessory box : 1Pc
- Vickers diamond indenter : 1Pc
- Level bubble : 1Pc
- Flat fixture : 1Pc
- Sheet specimen fixture : 1Pc
- Standard block of hardness : 2Pc
- Spare fuse 2A : 2Pc
- Horizontal adjusting screw : 4Pc
- Power line : 1Pc
- Dust proof cover : 1Pc
- Manual Book / Warranty Card : 1Pc
- Certificate of quality : 1Pc
Software Description
Software System:
Camera | 5 Million Pixel digital camera |
X-Y Platform table | Auto move; 110X110mm |
Max. Move range: 25x25mm (X-Y axis direction) | |
Precision: less than 2um (resolution 0.002mm) | |
Move speed: 1-10mm/sec (adjustable) | |
Displacement repeatability ≤2um | |
Move direction: Support 8 directions move |
Software Function:
- System linkage: Through the communication interface it realizes the linkage between the system and the hardness tester.
- Pressure linkage: When converting test force, the system percepts the test force change and displays in real time.
- Turret linkage: The software controls the shifting between the objective and the indenter without manual control.
- Loading linkage: The software controls the loading without manual control.
- Measuring linkage: The software controls the turret, loading and directly reading the Vickers hardness value.
- Light source linkage: Automatic focus.
- Image acquisition: Real time display of hardness image, store and print image.
- Automatic measurement: Automatically find the four vertices of indentation with fast speed and accurate data, there are many professional algorithms to be suitable for different indentation. It continuously and immediately measures at specified coordinates once loading.
- Automatic point search: The system automatically finds the best vertices near the four vertices of the indentation, greatly reduce the human error.
- Diagonal measurement: Click the top left and lower right corner of the indentation, you can read the hardness value.
- Four point measurement: Click the four point of the indentation and you can read the hardness value.
- Hardness conversion: According to the national standard, automatically convert the hardness value between Brinell, Rockwell, Vickers, Knoop, real-time display.
- Graphic report: Automatic record of measurement data, automatic generation of hardness-depth curves, saving or printing the hardness-depth curves and all indentation measurements. Save or print the indentation image and the current indentation hardness value. All the reports are saved in WORD file.
- Results statistics: Output the multiple measured results of indentations by EXCEL and automatically count the measurement number, maximum value, minimum value, average value, variance, etc. of hardness.
- Linkage control: Through the communication interface the system percepts the test force changes, controls the turret, loads and directly reads.
- Automatic displacement: Equipped with high precision X-Y automatic test table.
- Automatic identification: Leading indentation automatic identification technology, read D1 / D2 and HV value in 0.3 seconds.
- Stable performance: The indentation of non mirror polishing, uneven light, not in the center can be read automatically.
- Powerful functions: Such as manual reading, automatic reading, hardness conversion, depth-hardness curve, indentation image, picture and text report.
- Easy to use: Through the hardness block calibration, in line with the users’ habits. It can be normal used with half day training.
- Automatic reading: Original algorithm of automatic reading to automatic read a variety of indentation with fast speed and high accuracy.
- Good repeatability: It is automatic reading with high repeatability and can satisfy the requirement of professional users.
- Automatic scanning: Can automatically scan the sample edge and shape.
Download Cataloge
ENQUIRY
Fully-Automatic Digital Micro Vickers Hardness Tester
Description
BDVK-1AT-6 digital microhardness tester is equipped with double indenter (diamond Vickers indenter and diamond Knoop indenter) and 5X, 10X, 20X, 40X objective lens. It is a 6 positions automatic turret Micro Vickers hardness tester. It can test Vickers hardness value and Knoop hardness value directly & easily.
The traditional Micro hardness tester has poor precision and can barely meet the needs of visual observation & measurement. If connect with camera and software, the indentation image of traditional Micro hardness tester always out of central position. It is very big problem of measuring and analysis process. Fortunately, this machine perfectly solved above problems.
Application
Features
- Guided by optical cross rails to ensure high guiding accuracy; Fast and smooth force transmission can be achieved by using the secondary transmission force of the rack and pinion.
- This machine equipped with most advanced High transmission ratio high precision worm gear rod, can achieve stable continuous lifting, and greatly improved the accuracy and repeatedly of the testing process. This update is very important to improve working performance and working efficiency.
- Equipped with dual optical path, one optical path for eyepiece system, another path for CCD camera, both paths can work in same time, no need switch optical path rod. Greatly extend the service life of the optical system, and make test easier.
- Adopted 8’’ touch screen, menu structure, and digital eyepiece with built-in encoder, just click button on encoder, the diagonal length of indentation D1, D2 and hardness value will display on touch screen directly, very easy operate.
- With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc scales.
- With (HV & HK) Vickers and Knoop hardness testing capabilities.
- Maximum test force can extend to 2kg (optional purchase)
- OK/NG judgement function.
- All lens (5X, 10X, 20X & 40X) can used for measurement, suitable to test widely hardness range of materials from most soft to very hard.
Specifications
Model No. | BDVK-1AT-6 |
Turret | Automatic Turret |
Test mode | HV / HK |
Testing force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
Conversion scale | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW |
Test range | 8HV-2900HV |
Loading Method | Automatic (Loading/Dwell/Unloading) |
Objective | 5X, 10X, 20X, 40X (observe + measure) |
Eyepiece | 10X digital eyepiece with built-in encoder |
Total Magnification | 50X, 100X, 200X, 400X (measure) |
Hardness reading | 8’’ touch screen, data can be saved |
Data output | Inbuilt printer |
Data statistic function | Testing data, max - Min data, average data, etc all can display on screen |
RS 232 port | Used for software (transfer test data to computer or software control machine); Software for optional purchase. |
Loading speed | ≤50μm/sec |
Min. measuring unit | 0.01μm |
Duration time | 1-99s (each step is 1 second) |
Objective lens center and indenter center | Coincidence accuracy error < 1um (objective lens center position can be adjusted) |
X-Y Testing Table |
Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
Test space | Maximum height: 100mm (vertical); Throat depth: 130mm (horizontal) |
Light Source | LED Cold light source (can be continuous use for 24 hours, no heat generates ensure stable working, servicing life can reach 100,000 hours) |
Machine size and N/W | 540*260*650mm 50kg |
Packing size and G/W | 710*420*627mm 68kg |
Power Supply | 220V ± 5%, 50/60 Hz (110V is available) |
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Accessories
Item Name | Q’ty | Item Name | Q’ty |
Weights shaft | 1 | Weights | 6 |
Diamond Vickers indenter | 1 | Diamond Knoop indenter | 1 |
X-Y Cross clamping testing table | 1 | Level adjustment screw | 4 |
Level bubble | 1 | Objective 10X, 40X | 1+1 |
Micro Vickers hardness block | 2 | Eyepiece 10X | 1 |
Dust-proof cover | 1 | Screw driver | 2 |
Power cable (cord) | 1 | Fuse (2A) | 2 |
Touch screen pen | 1 | Printing paper | 1 |
Manual | 1 | Product Certificate | 1 |
Software Description
Download Cataloge
ENQUIRY
Automatic Digital Micro Vickers - Knoop Hardness Tester
