Description
Our BP-1 Series Metallography specimen polishing machine is suitable for the polishing of the specimen which has been roughly grinded. The specimen surface turns out very smooth with mirror like finish after polishing and can be used to observe and measure the metallography structure and other inspections of specimen under microscope. Silicon Carbide Paper or Red Velvet Cloth both, any of the one can be used on this model of ours.
Application
Features
Specifications
| Model | BP-1 | BP-1(V) | BP-1(VD) |
| Diameter of Polishing Disc | 200mm | ||
| Rotating Disc Mode | Fixed | Variable | |
| Rotating Disc Speed | 960 RPM | 50‐1250 RPM | |
| Motor Specifications | 180W ( A.C ) | 180W ( D.C ) | |
| Display Type | - | - | LED |
| Digital Display | - | - | 7 segments |
| Power Source | 220 Volts 50 Hz | ||
| Dimensions | 320x320x300mm | ||
| Weight | 18 Kgs (Approx.) | ||
Accessories
Software Description
Download
ENQUIRY
(Single Disc Polishing Machine)
Description
Our BP-2T Metallography specimen polishing machine is a kind of double disk table top type polishing machine and can be operated by two persons at the same time. It is suitable for the polishing & grinding of the specimen. The specimen surface turns out to be very smooth with a mirror like finish after polishing and can be used to observe and measure the metallography inspection of specimen under microscope. Fibre Reinforced Plastic ( FRP ) body makes the machine light weight and easy to be installed for use in laboratories, institutes and quality section of various industries.
Application
Features
Specifications
| Model | BP-2T | BP-2T(V) | BP-2T(VD) |
| Diameter of Polishing Disc | 200mm | ||
| Rotating Disc Mode | Fixed | Variable | |
| Rotating Disc Speed | 960 RPM | 50‐1250 RPM | |
| Motor Specifications | 180W ( A.C ) | 180W ( D.C ) | |
| Display Type | - | - | LED |
| Digital Display | - | - | 7 segments |
| Power Source | 220 Volts 50 Hz | ||
| Dimensions | 720x490x320mm | ||
| Weight | 38 Kgs (Approx.) | ||
Accessories
Software Description
Download
ENQUIRY
(Double Disk Polishing Machine)
Description
BP-3T Metallography specimen polishing machine with variable rotating speed is a kind of triple disk table type polishing machine. It is suitable for the polishing & grinding of the specimen. The specimen surface is very smooth after processing and can be used to observe and measure the metallography structure of specimen under microscope. Machine body is made of MS Powder Coated.
Application
Features
Specifications
| Model | BP-3T | BP-3T(V) | BP-3T(VD) |
| Diameter of Polishing Disc | 200mm | ||
| Rotating Disc Mode | Fixed | Variable | |
| Rotating Disc Speed | 900 RPM | 50‐900 RPM | |
| Motor Capacity | 1/2 HP DC | ||
| Motor Specifications | 180W ( A.C ) | 180W ( D.C ) | |
| Display | - | - | Digital display RPM meter |
| Power Source | 220 Volts 50 Hz | ||
| Dimensions | 90 x 50 x 92 cm | ||
| Weight | 43 Kgs (Approx.) | ||
Accessories
Software Description
Download
ENQUIRY
(Triple Disk Polishing Machine)
Description
Model BP-2G is a cabinet type Metallography Specimen Polishing Machine. This machine features nice appearance design, big store cabinet and cooling system (which can clear up the heat produced during grinding so as to prevent the metallography structure from being damaged).
By equipping the motor with variable rotating speed, it can meet the different demands of different materials when polishing. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
Specifications
| Model | BP-2G | BP-2G(V) |
| No. of Polishing Disk | Double | |
| Diameter of polishing disk | 200mm | |
| Rotating Disk Type | Fixed | Variable |
| Polishing disk rotating speed | 900 rpm | 50‐900 rpm |
| Motor | 2x80W 220V 50Hz. | |
| Net weight | 43 Kgs | |
Accessories
Software Description
Download
ENQUIRY
(Cabinet Type Polishing Machine)
Description
MBP Series Metallographic Specimen grinding & polishing machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.
This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
Specifications
| Model | MBP-1B |
| No. of Polishing Disk | Single |
| Diameter of polishing disk | 200mm |
| Diameter of grinding disk | 230mm |
| Display of Rotating Speed | Digital Display |
| Rotating Disk Type | Variable |
| Polishing disk rotating speed | 50‐1000 RPM |
| Motor | 550W 220V 50Hz |
| Dimensions | 65 x 37 x 31 cm |
| Net weight | 43 Kgs |
Accessories
Software Description
Download
ENQUIRY
(Single Disc Polishing Machine)
Description
MBP Series Metallographic Specimen grinding & polishing machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.
This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
Specifications
| Model | MBP-2B |
| No. of Polishing Disk | Double |
| Diameter of polishing disk | 200mm |
| Diameter of grinding disk | 230mm |
| Display of Rotating Speed | Digital Display |
| Rotating Disk Type | Variable |
| Polishing disk rotating speed | 50‐1000 RPM |
| Motor | 550W 220V 50Hz |
| Dimensions | 690 X 715 X 310mm |
| Net weight | 45 Kgs |
Accessories
Software Description
Download
ENQUIRY
(Double Disc Polishing Machine)
Description
MBP-2BP Metallographic Specimen grinding & polishing machine is equipped with double disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.
This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
Specifications
| Model | MBP-2BP |
| No. of Polishing Disk | Double |
| Polishing Head | With Polishing Head |
| Diameter of polishing disk | 200mm |
| Diameter of grinding disk | 230mm |
| Display of Rotating Speed | Digital Display |
| Rotating Disk Type | Variable |
| Polishing disk rotating speed | 50‐1000 RPM |
| Motor | 550W 220V 50Hz |
| Dimensions | 690 X 715 X 310mm |
| Net weight | 45 Kgs |
Accessories
Software Description
Download
ENQUIRY
(Double Disc Polishing Machine with Polishing Head)
Description
MBP-2S is a newly designed touch screen type metallographic specimen grinding and polishing machine which is equipped with double discs and features stepless speed changing. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
- Double grinding & polishing discs
- Touch type LCD screen operation. Rotating speed is displayed on LCD directly.
- Grinding and polishing time is adjustable from 0 to 1000 seconds
- There are two working conditions for this model: the stepless speed changing status or four-level constant speed status. The working condition can be switched from one to another easily.
- The rotating direction of working disc can be chosen at will.
- Four-level constant speed: 150, 300, 600, 800 rpm.
- Stepless speed changing from 50 to 1000 rpm.
- This model is designed and manufactured as per international advanced specimen preparing technology.
- Equipped with beautiful appearance machine shell and stainless steel parts which never rust.
Specifications
| Model | MBP-2S |
| No. of Polishing Disk | Double |
| Diameter of polishing disk | 200mm/250mm |
| Rotating speed of working disk | 50-1000 rpm ( stepless speed changing) or 150 /300/600/800rpm ( four-level constant speed) |
| Power supply | Single phase, 220V, 50Hz |
| Motor power | 550W |
| Dimensions | 870 X 760 X 560 mm |
| Net Weight | 45 Kg |
Accessories
Software Description
Download
ENQUIRY
(Touch Screen Double Disc Polishing Machine)
Description
Our BETAPOL-1000 Have the single reference. Grinding and polishing disc has the function of changing quickly. The machine has cooling device, which can cool the specimen when polishing in order to prevent the destruction of specimen overheating and microstructure. The machine is easy and reliable. It is idea equipment for enterprises scientific research institutions and colleges laboratory.
Application
Features
Specifications
| Model | BETAPOL-1000 |
| No. of Grinding & Polishing Disc | Single |
| Grinding & Polishing Disc Diameter | 250mm ( 200mm is optional) |
| Rotation Speed | 50-600RPM,150/300RPM |
| Grinding & Polishing Disc Direction | Clockwise or anticlockwise |
| Input Voltage | AC220V/50HZ |
| Input Power | 250 W |
| Dimension | 740X400X310 |
| Net Weight | 30 KG |
Accessories
Software Description
Download
ENQUIRY
(Double Disc Polishing Machine)
Description

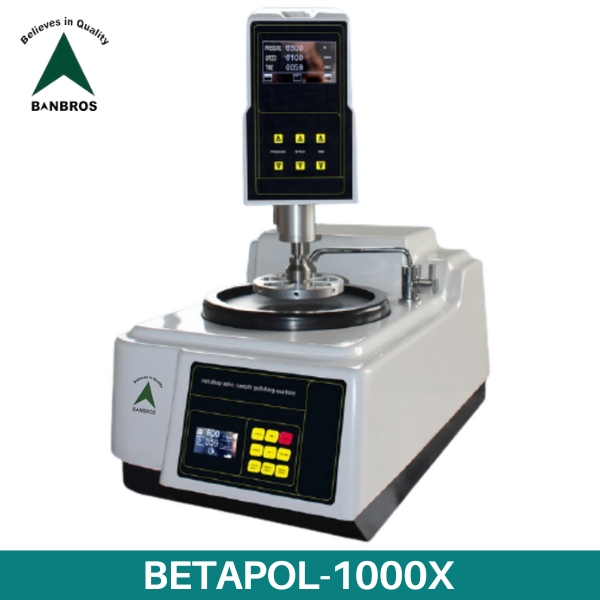

Model BETAPOL 1000X Automatic Metallographic specimen grinding and polishing machine is equipped with automatic polishing head and features stepless speed changing and three-level constant speed for grinding and polishing. The working time can be preset and the rotating direction can be controlled. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
- Six pieces Φ30mm samples can be grinded and polished simultaneously.
- Both grinding disc and polishing head adopt stepless speed control, and the rotating direction of grinding disc can be shifted.
- Electric central force holding, fix the sample and then it can complete the whole process of grinding and polishing, and this can ensure the plane parallelism of sample.
- The loading force can be adjusted during running process.
- Working time presetting
- Quick exchanging disc. The working disc can be changed and replaced swiftly.
Specifications
| Model | BETAPOL-1000X |
| No. of Grinding & Polishing Disc | Single |
| Grinding & Polishing Disc Diameter | 250mm ( 200mm is optional) |
| Rotation Speed of working disc | Stepless speed changing 50-1000 rpm, and three-level Constant speeds of 300/600/900 rpm |
| Rotating speed of polishing head | Stepless speed changing 5-100 rpm |
| Sample holder | Φ30mm, 6-hole (or customized) |
| Sample preparing time | 60-999 seconds |
| Pressure range | 5-170N |
| Power supply | Single phase, 220V, 50Hz |
| Input power | 700W |
| Dimensions | 730 x 450 x 900 mm |
| Net weight | 65 Kg |
Accessories
Software Description
Download
ENQUIRY
(Automatic Double Disc Polishing Machine with Polishing Head)
Description

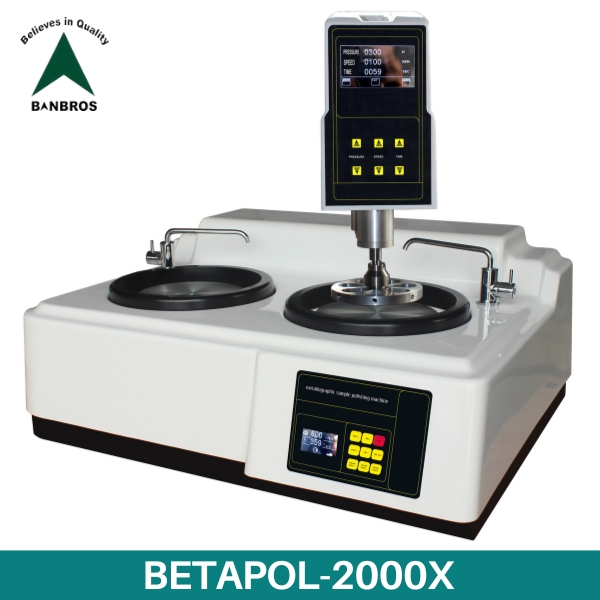

BETAPOL-2000X Automatic Metallographic specimen grinding and polishing machine is equipped with automatic polishing head and features stepless speed changing and three-level constant speed for grinding and polishing. The working time can be preset and the rotating direction can be controlled. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
- Double grinding & polishing discs
- Six pieces Φ30mm samples can be grinded and polished simultaneously.
- Both grinding disc and polishing head adopt stepless speed control, and the rotating direction of grinding disc can be shifted.
- Electric central force holding, fix the sample and then it can complete the whole process of grinding and polishing, and this can ensure the plane parallelism of sample.
- The loading force can be adjusted during running process.
- Working time pre-setting
- Quick exchanging disc.
Specifications
| Model | BETAPOL-2000X |
| No. of Polishing Disk | Double |
| Polishing Head | With Polishing Head |
| Diameter of polishing disk | 250mm (200mm is optional) |
| Rotating speed of working disk | Stepless speed changing 50-1000 rpm, and three-level constant speeds of 300 / 600 / 900 rpm |
| Rotating speed of polishing head | Stepless speed changing 5-100 rpm |
| Sample holder | Φ30mm, 6-hole (or customized) |
| Sample preparing time | 60-999 seconds |
| Pressure range | 5-170N |
| Power supply | Single phase, 220V, 50Hz |
| Input power | 700W |
| Dimensions | 980 x 920 x 900 mm |
| Net weight | 86 Kg |
Accessories
Software Description
Download
ENQUIRY
(Automatic Double Disc Polishing Machine)
Description
Model BETAPOL 2200S Metallographic specimen grinding and polishing machine is equipped with double discs and features stepless speed changing for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 1000 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Application
Features
- Stepless speed changing 50‐1000 rpm
- CCW and CW rotating direction control
- Quick exchanging disc
Specifications
| Model | BETAPOL-2200S |
| No. of Polishing Disk | Double |
| Diameter of polishing disk | 200mm |
| Rotating speed of working disk | Stepless speed changing 50-1000 rpm (other speeds are optional) |
| Power supply | Single phase, 220V, 50Hz |
| Input power | 550W |
| Dimensions | 870 x 760 x 560 mm |
| Net weight | 56 Kg |
Accessories
Software Description
Download
ENQUIRY
(Double Disc Polishing Machine)
Description
Model BETAPOL 2250X Metallographic specimen grinding and polishing machine is equipped with double discs and features stepless speed changing for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing.
Application
Features
- Multi-usage, metallographic specimen of coarse grinding, fine grinding, coarse and fine polishing, one machine to complete.
- Grinding disc diameter: 250 mm, compare to ordinary grinding disc, effective area increased by 60%
- Manual mode: three-level constant speed mode and variable speed mode
- Three level constant speeds: customer can define three common speeds for pregrinding, grinding and polishing
- Variable speed mode: grinding speed 100-1000 R/min
- Automatic mode: Eight sections programmable control, automatically stop, convenient for customer getting metallographic sample
- Easily replace magnetic anti‐sticking dish, can make all kinds of sample of coarse and fine grinding, coarse and fine polishing all process
- Optional work disc rotating direction: clockwise and counterclockwise are optional
- By using the electromagnetic valve to control the water on and off
- Increase the automatic grinding head, can be upgraded to automatic polishing machine, automatic processing of six samples at the same time
- Beautiful outlook and good quality
Specifications
| Model | BETAPOL-2250X |
| No. of Polishing Disk | Double |
| Diameter of polishing disk | 250mm (Optional 230mm, 200mm) |
| Rotating speed of working disk | Stepless speed changing 100-1000 rpm (rotating direction exchangeable) |
| Three level constant speed V1=300rpm, V2=500rpm, V3=800rpm (or customizable) | |
| Power supply | 750W, 220V, 50/60Hz |
| Input power | 750W |
| Dimensions | 730×700×350mm |
| Net weight | 50 Kg |
Accessories
Software Description
Download
ENQUIRY
(Double Disc Polishing Machine)
