- Low Load Vicker Hardness Tester

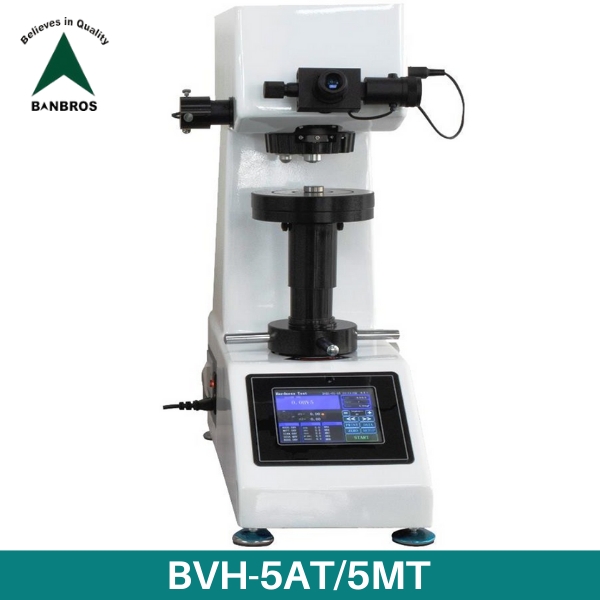

BVH-5AT/5MT
Advanced Digital Vickers Hardness Tester With Touch Screen Control
Description
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
- Glass, chip and ceramic material.
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process.
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model No. | BVH-5AT | BVH-5MT | |
| Turret | Automatic | Manual | |
| Hardness Scale & Test Force | HV0.3, HV0.5, HV1, HV2, HV3, HV5 0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) |
||
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | ||
| Loading speed | ≤50μm/sec | ||
| Min. Measuring Unit | 0.01μm | ||
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | ||
| Hardness Value Range | 5-3000HV, 8-4500HK | ||
| Data Display | Touch screen | ||
| Total Magnification | 100X (For Observation), 200X (For Measurement) | ||
| Loading Method | Automatically (Load, dwell and unload) | ||
| Dwell Time | 1-99s (each step is 1 second) | ||
| Maximum Height | 175mm | ||
| Throat depth | 135mm | ||
| Light Source | LED Cold light source | ||
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) | ||
| X-Y Testing Table (optional purchase) | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | ||
| Instrument size and Net weight | 600*220*700mm; 55kg | ||
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | ||
| Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece | ||
Accessories
- 10X electronic eyepiece : 1pc
- 10X and 20X objective lens : 1pc
- Vickers indenter : 1pc
- Level bubble : 1pc
- Power line : 1pc
- Dust proof cover : 1pc
- Manual Book : 1pc
- Hardness Conversion Tables : 1pc
- Quality certificate : 1pc
- Warranty Card : 1pc
- Accessory case : 1pc
- Standard block of hardness : 2pcs
- horizontal adjusting screw : 4pcs
- Large / Medium / V-shape Testing Table : 1pc
Software Description
Download Cataloge
ENQUIRY
BVH-5AT/5MT
Advanced Digital Vickers Hardness Tester With Touch Screen Control
Advanced Digital Vickers Hardness Tester With Touch Screen Control

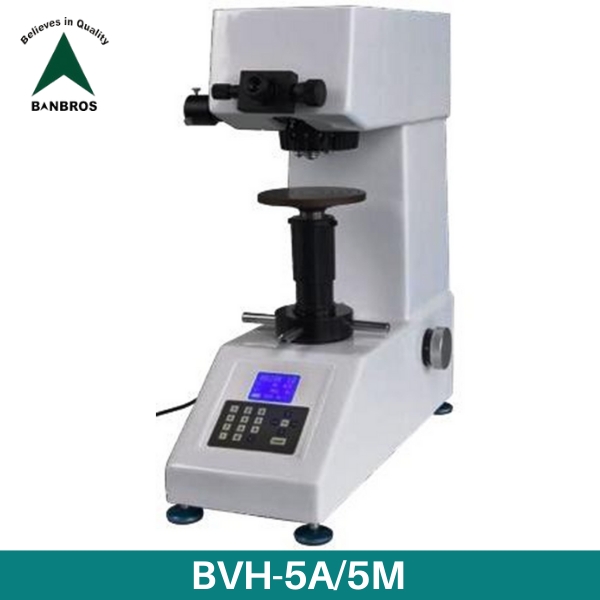

BVH-5A/5M
Automatic/Manual Turret Vickers Hardness Tester
Description
Application
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Glass, chip and ceramic material.
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process;
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model No. | BVH-5A | BVH-5M | |
| Turret | Automatic | Manual | |
| Hardness Scale & Test force | HV0.3, HV0.5, HV1, HV2, HV3, HV5 0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) |
||
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | ||
| Loading speed | ≤50μm/sec | ||
| Min. Measuring Unit | 0.02μm | ||
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | ||
| Hardness Value Range | 5-3000HV, 8-4500HK | ||
| Hardness Value of Reading | Digital LCD Screen | ||
| Total Magnification | 100X (For Observation), 200X (For Measurement) | ||
| Loading Method | Automatically (Load, dwell and unload) | ||
| Dwell Time | 1-99s (each step is 1 second) | ||
| Maximum Height | 180mm (160mm if work with XY work table) | ||
| Throat depth | 125mm | ||
| Light Source | LED Cold light source | ||
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) | ||
| X-Y Testing Table (optional purchase) | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | ||
| Instrument size and Net weight | 600*220*700mm; 55kg | ||
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | ||
| Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece | ||
Accessories
- 10X electronic eyepiece : 1pc
- 10X and 20X objective lens : 1pc
- Vickers indenter : 1pc
- Level bubble : 1pc
- Power line : 1pc
- Dust proof cover : 1pc
- Manual Book : 1pc
- Hardness Conversion Tables : 1pc
- Quality certificate : 1pc
- Warranty Card : 1pc
- Accessory case : 1pc
- Standard block of hardness : 2pcs
- horizontal adjusting screw : 4pcs
- Large / Medium / V-shape Testing Table : 1pc
- Weights : HV5 & HV10 : 3 pcs, HV30 & HV50 : 4 pcs
Software Description
Download Cataloge
ENQUIRY
BVH-5A/5M
Automatic/Manual Turret Vickers Hardness Tester
Automatic/Manual Turret Vickers Hardness Tester

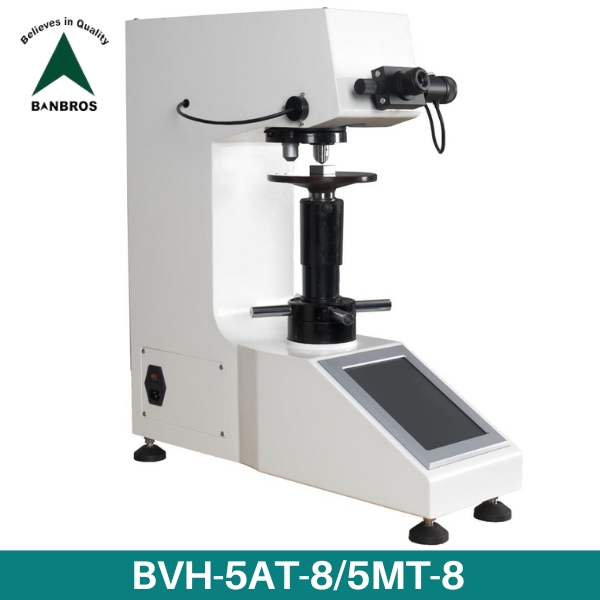

BVH-5AT-8/5MT-8
Touch Screen Digital Vickers Hardness Tester
Description
Application
- Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.)
- Surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.)
- Glass, chip, ceramic, plastic and rubber, etc.
Features
Specifications
| Model No. | BVH-5AT-8 | BVH-5MT-8 | |
| Turret | Automatic turret | Manual turret | |
| Loading Method | Automatic (Loading/Dwell/Unloading) | ||
| Test Range | 8HV-2900HV | ||
| Hardness Scale & Test Force | HV0.3, HV0.5, HV1, HV2, HV3, HV5 0.3Kgf(2.94N), 0.5Kgf(4.9N), 1.0Kgf(9.8N), 2.0Kgf(19.6N), 3.0Kgf(29.4N), 5.0Kgf(49.0N) |
||
| Dwell Time | Dwell Time | ||
| Data Display | 8’’ Touch screen | ||
| Min measuring unit | 0.01µm | ||
| Eyepiece | 10X digital eyepiece with built-in encoder, auto calculate | ||
| Objective | 10X (observe), 20X (measurement); Total Magnification: 100X, 200X | ||
| Light Source | LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) | ||
| Test space | 160x135mm (height x depth) | ||
| Power Supply | AC220V, 50Hz | ||
| Execute Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | ||
| Size / Net weight | 600*220*700mm; 50kg | ||
| Package size / G.W | 800*470*800mm; 78kg | ||
Accessories
- Instrument Main Body : 1 set
- 10X Digital Measuring Eyepiece : 1 pc
- Weights : 3 pcs
- 10X & 20X Objective : 2 pcs
- Large/Middle/V shape testing table : 3 pcs
- Diamond Vickers Indenter : 1 pc
- Horizontal Regulating Screw : 4 pcs
- Level : 1 pc
- Fuse 2A : 2 pcs
- Power Cable : 1 pc
- Touch Screen pen : 1 pc
- Allen wrench (2.5mm) : 1 pc
- Anti-dust Cover : 1 pc
- Standard Hardness Block : 2 pcs
- Warranty certificate : 1 pc
- Usage Instruction Manual : 1 copy
Software Description
Download Cataloge
ENQUIRY
BVH-5AT-8/5MT-8
Touch Screen Digital Vickers Hardness Tester
Touch Screen Digital Vickers Hardness Tester

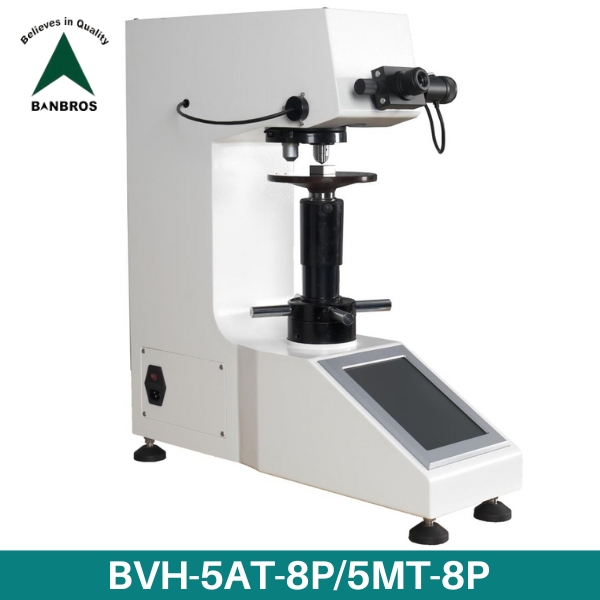

BVH-5AT-8P/5MT-8P
Advanced Digital Vickers Hardness Tester
Description
Application
- Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.)
- Surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.)
- Glass, chip, ceramic, plastic and rubber, etc.
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process;
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model No. | BVH-5AT-8P | BVH-5MT-8P | |
| Turret | Automatic | Manual | |
| Hardness scale | HV0.3, HV0.5, HV1, HV2, HV3, HV5 0.3, 0.5, 1, 2, 3, 5kgf (2.94, 4.90, 9.80, 19.6, 29.4, 49N) |
||
| Hardness conversion | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | ||
| Hardness range | 8-2900HV | ||
| Min measuring unit | 0.01µm | ||
| Force loading | Automatic loading - dwell - unloading | ||
| Eyepiece | 10X digital eyepiece with built-in encoder, auto calculate | ||
| Objective | Standard: 10X, 20X (both lens can be used measuring & observe) | ||
| Magnification | Standard: 100X, 200X | ||
| Dwell time | 1-99S | ||
| Data output | 8 inches touch screen, Built-in Printer, RS232 Interface | ||
| Test space | 160*135MM (H*D) | ||
| Power supply | AC220V+5%，50-60Hz | ||
| Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | ||
| Size & N.W | 600x220x700mm; 55kg | ||
| Packing & G.W | 800*470*800mm; 78kg | ||
Accessories
- Main Instrument : 1 set
- 10X Digital Micro Eyepiece : 1 piece
- 10X / 20X Objective lens : Each 1 piece
- Vickers diamond indenter : 1 piece
- Large / medium / V shape testing table : Each 1 piece
- Horizontal Regulating Screw : 4 pieces
- Weights : HV5 & HV10 : 3 pieces, HV30 & HV50 : 4 pieces
- Level : 1 piece
- Power Cable : 1 piece
- Fuse 2A : 2 pieces
- Dust cover : 1 piece
- Warranty card : 1 piece
- Manual book : 1 piece
Software Description
Download Cataloge
ENQUIRY
BVH-5AT-8P/5MT-8P
Advanced Digital Vickers Hardness Tester
Advanced Digital Vickers Hardness Tester

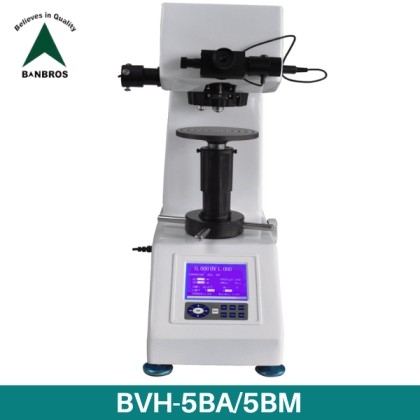

BVH-5BA/5BM
Advanced Digital Vickers Hardness Tester
Description
Application
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process.
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model | BVH-5BA | BVH-5BM | |
| Turret | Automatic | Manual | |
| Hardness Scale & Test Force | HV0.3, HV0.5, HV1, HV2, HV3, HV50.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) | ||
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | ||
| Loading speed | ≤50μm/sec | ||
| Min. Measuring Unit | 0.01μm | ||
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | ||
| Hardness Value Range | 5-3000HV, 8-4500HK | ||
| Hardness Value of Reading | Digital LCD Screen | ||
| Total Magnification | 100X (For Observation), 200X (For Measurement) | ||
| Loading Method | Automatically (Load, dwell and unload) | ||
| Dwell Time | 1-99s (each step is 1 second) | ||
| Maximum Height | 175mm | ||
| Throat depth | 135mm | ||
| Light Source | LED Cold light source | ||
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) | ||
| X-Y Testing Table (optional purchase) | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | ||
| Instrument size and Net weight | 600*220*700mm; 55kg | ||
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | ||
| Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece | ||
Accessories
- 10X electronic eyepiece : 1pc
- 10X and 20X objective lens : 1pc
- Vickers indenter : 1pc
- Level bubble : 1pc
- Large / Medium / V-shape Testing Table : 1pc
- Power line; Dust proof cover; Manual Book : 1pc
- Hardness Conversion Tables : 1pc
- Quality certificate; Warranty Card : 1pc
- Accessory case : 1pc
- Standard block of hardness : 2pcs
- horizontal adjusting screw : 4pcs
Software Description
Download Cataloge
ENQUIRY
BVH-5BA/5BM
Advanced Digital Vickers Hardness Tester
Advanced Digital Vickers Hardness Tester
BVH-5DA/5DM
Digital Vickers Hardness Tester
Description
Application
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process;
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model | BVH-5DA | BVH-5DM | |
| Turret | Automatic | Manual | |
| Hardness Scale & Test Force | HV0.5, HV1, HV2, HV3, HV5 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) |
||
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | ||
| Loading speed | ≤50μm/sec | ||
| Min. Measuring Unit | 0.02μm | ||
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | ||
| Hardness Value Range | 5-3000HV, 8-4500HK | ||
| Hardness Value of Reading | Digital LCD Screen | ||
| Total Magnification | 100X (For Observation), 200X (For Measurement) | ||
| Loading Method | Automatically (Load, dwell and unload) | ||
| Dwell Time | 1-99s (each step is 1 second) | ||
| Maximum Height | 175mm | ||
| Throat depth | 135mm | ||
| Light Source | LED Cold light source | ||
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) | ||
| X-Y Testing Table (optional purchase) | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | ||
| Instrument size and Net weight | 600*220*700mm; 55kg | ||
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | ||
| Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece | ||
Accessories
- 10X electronic eyepiece : 1pc
- 10X and 20X objective lens : 1pc
- Vickers indenter; Level bubble : 1pc
- Large / Medium / V-shape Testing Table : 1pc
- Power line; Dust proof cover; Manual Book : 1pc
- Hardness Conversion Tables : 1pc
- Quality certificate; Warranty Card : 1pc
- Accessory case : 1pc
- Standard block of hardness : 2pcs
- horizontal adjusting screw : 4pcs
Software Description
Download Cataloge
ENQUIRY
BVH-5DA/5DM
Digital Vickers Hardness Tester
Digital Vickers Hardness Tester

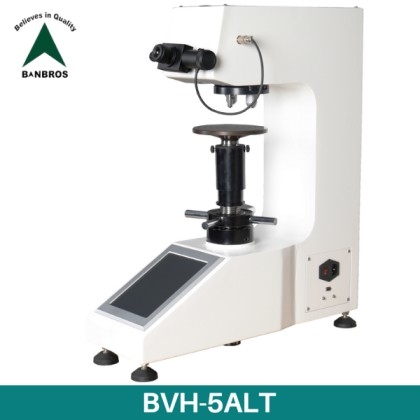

BVH-5ALT
Advanced Touch Screen Digital Vickers Hardness Tester
Description
Application
- Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.)
- surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.) Glass, chip, ceramic, plastic and rubber, etc.
Features
- Closed loop design with high accuracy load cell, no need to install dead weights, let installation more easy and loading - dwell - unloading automatically, easy operation.
- With load automatic correct function, greatly improved test accuracy and let calibration more easy.
- Hardness value automatic corrected according to different hardness block.
- Touch screen interface with menu structure, make test very simple.
- Modular design, simple maintenance.
- With hardness conversion function, from HV hardness value can covert to HR, HB, etc.
- With HV/HK test function.
- Support to set a password protection settings.
- Test data can save to USB flash disk as EXCEL format, edit and process more easy.
- Available to upgrade to full automatic Vickers hardness tester.
Specifications
| Model No. | BVH-5ALT | |
| Turret | Automatic (motorized switch) | |
| Force loading | Automatic loading - dwell - unloading | |
| Test Force | 0.1Kgf(0.98N), 0.2Kgf(1.96N), 0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N) | |
| Hardness ScaleBVH-5ALT | HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 | |
| Conversion Scales | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
| Min measuring unit | 0.01μm | |
| Hardness range | 8-2900HV (or 8-4000HV) | |
| Eyepiece | 10X digital eyepiece with built-in encoder, automatic calculate data | |
| Objective | 10X, 20X | |
| Magnification | 100X (measurement), 200X (measurement) Both lens can do observe and measurement work directly |
|
| XY work table | For optional purchase: Dim.:100x100 mm, Max. Travel Range: 25x25mm, Moving Resolution Ratio: 0.01mm | |
| Dwell time | 1-99S (1 second per step) | |
| Data output | 8’’ touch screen; USB port (can save to U-flash in Excel format) | |
| Test space | 180mm x 160mm (Height x Depth) | |
| Power supply | AC220V+ 50-60Hz | |
| Standard | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 | |
| Overall Dimension | 580*240*660mm | |
| Net weight | About 50Kg | |
| Packing size | 800x470x800 | |
| Gross weight | 76KG | |
Accessories
- Main Instrument : 1
- Middle, Large, V shape testing table : Each 1
- Vickers hardness block : 2
- 10X objective lens : 1
- 20X objective lens : 1
- Regulating Screw : 4
- Dust cover : 1
- USB flash disk : 1
- Power Cord : 1
- 10× Digital Micro Eyepiece : 1
- Spare Fuses (2A) : 2
- Production certificate : 1
- Warranty card : 1
- Manual book : 1
Software Description
Download Cataloge
ENQUIRY
BVH-5ALT
Advanced Touch Screen Digital Vickers Hardness Tester
Advanced Touch Screen Digital Vickers Hardness Tester

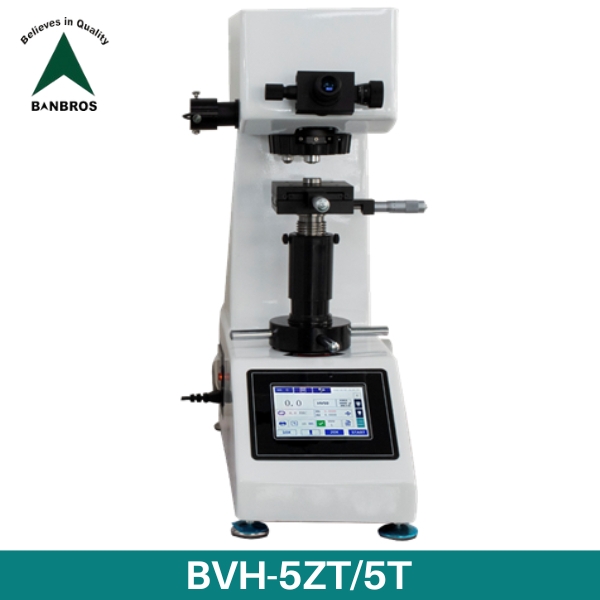

BVH-5ZT/5T
Vickers Hardness Tester With Touch Screen Control
Description
- Automatic loading - dwell - unloading
- Precise manual analog eyepiece 10X
- Reserved CCD camera path, can work with camera and hardness software system
- High resolution optical system, indentation image very clear
- One time casting shell with car painting
- Touch screen with menu structure, easy operate
- LED light source, service time more longer
Application
- Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
- Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
- Glass, chip and ceramic material.
Features
- The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
- According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
- With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.
- Large size touch screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process.
- Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Specifications
| Model no. | BVH-5ZT | BVH-5T |
| Turret | Automatic | Manual |
| Hardness Scale | HV0.3, HV0.5, HV1, HV2, HV3, HV5 | |
| Test Force | 0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) | |
| Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | |
| Loading speed | ≤50μm/sec | |
| Min. Measuring Unit of eyepiece reading drum |
0.5μm | |
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | |
| Hardness Value Range | 5-3000HV, 8-4500HK | |
| Data Display | Touch screen | |
| Total Magnification | 100X (For Observation), 200X (For Measurement) | |
| Loading Method | Automatically (Load, dwell and unload) | |
| Dwell Time | 1-99s (each step is 1 second) | |
| Maximum Height | 175mm | |
| Throat depth | 135mm | |
| Light Source | LED Cold light source | |
| Power Supply | 220V + 5%, 50/60 Hz (110V is available) | |
| X-Y Testing Table (optional purchase) |
Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
|
| Instrument size | 600*220*700mm | |
| Net weight |
55kg | |
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | |
Accessories
- 10X analog eyepiece : 1 pc
- Power line : 1 pc
- 10X and 20X objective lens : 1 pc
- Dust proof cover : 1 pc
- Vickers indenter : 1 pc
- Hardness Conversion Tables : 1 pc
- Level bubble : 1 pc
- Quality certificate : 1 pc
- Large / Medium / V-shape Testing Table : 1 pc
- Warranty Card : 1 pc
- horizontal adjusting screw : 4 pcs
- Standard block of hardness : 2 pcs
- Accessory case : 1 pc
- Manual Book : 1 pc
Optional Purchase Accessories:
- Image analysis software
- Metallographic equipment
- Knoop Indenter
- hardness block
- 15X micrometer eyepiece
Software Description
Software support automatic measurement & manual measurement, can generate test report automatically in word/Excel format, including hardness value, test force, indentation image and hardness curve, etc.
Software can control the machine turret and generate test report including hardness value curve (Via RS232 port). Software install on the computer, connect with hardness tester through RS232 port. All the testing result can save to computer and generate test report in word format.
Download Cataloge
ENQUIRY
BVH-5ZT/5T
Vickers Hardness Tester With Touch Screen Control
Vickers Hardness Tester With Touch Screen Control

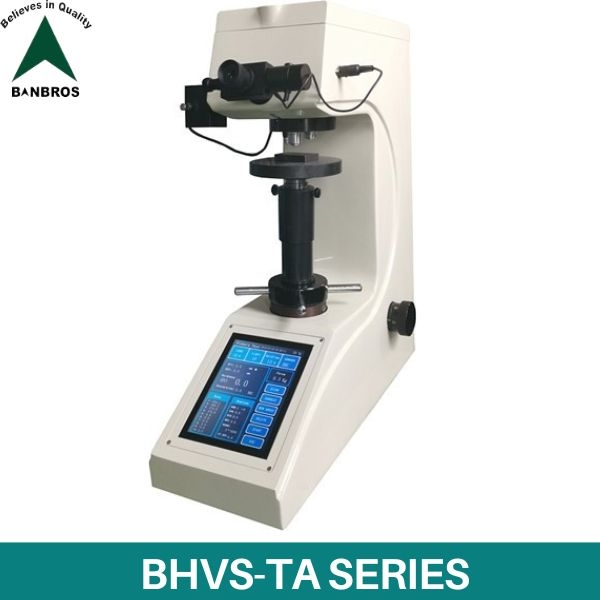

BHVS-TA SERIES
Turret Digital Display Vickers Hardness Tester
Description
Application
Features
- Automatic turret shifting between indenter and objective lens.
- Large 8” touch screen, direct visual display and interactive operating interface.
- High speed ARM processor, fast operation speed and extensive database storage.
- High quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
- The hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
- HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometre eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error.
- Convenient control system can automatically convert the unit of full hardness scales.
- The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
- With the function of software hardness value correction, the hardness value can be directly corrected within a certain range.
- With the database function, the testing data can be saved automatically in groups, each group can save 10 data, totally can save up to 2000 data.
- With the hardness value curve display function, intuitively display the changes of hardness value.
- CCD image measuring system is optional.
- Equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
- Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E92.
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications
| Model No. | BHVS-5TA | BHVS-10TA | BHVS-30TA | BHVS-50TA |
| Test force | 0.3, 0.5, 1.0,2.0, 3.0, 5.0kgf | 0.3, 0.5, 1.0 3.0, 5.0, 10.0kgf | 1.0, 3.0, 5.0,10.0, 20.0, 30.0kgf | 1.0, 5.0, 10.0,20.0, 30.0, 50.0kgf |
| (2.942, 4.904,9.807, 19.61,29.42, 49.03N) | (2.942, 4.904,9.807, 29.42,49.03, 98.07N) | (9.807, 29.42,49.03, 98.07,196.1, 294.2N) | (9.807, 49.03,98.07, 196.1,294.2, 490.3N) | |
| Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N,HR15T, HR30T, HR45T, HBW, HV, HK, HS, HLD | |||
|
Hardness measuring range |
5~5000HV | |||
| Measuring Resolution | 0.025µm | 0.1µm | ||
| Hardness resolution | 0.1HV | |||
| Max Height of Specimen | 220mm | |||
| Depth of throat | 130mm | |||
| Carried standards | GBT4340.2, ISO6507-2, ASTM E92 | |||
| Magnification of eyepiece | 10X | 10X | ||
| Magnification of objective lens | 10X, 40X | 10X, 20X | ||
| Total magnification | 100X, 400X | 100X, 200X | ||
| Data output | LCD digital display, wireless blue-tooth printer, RS232 and USB interface | |||
| Dwelling time | 1~99s | |||
| Power supply | AC 220V or 110V, 50 or 60Hz | |||
| Overall Dimensions | 620*330*650mm | |||
| Net weight | About 75Kg | |||
Accessories
Software Description
Download Cataloge
ENQUIRY
BHVS-TA SERIES
Turret Digital Display Vickers Hardness Tester
Turret Digital Display Vickers Hardness Tester
