Description
Our BRS Hardness Testers are designed and developed after years of research & experience in this field. All the models are manufactured under strict quality control at all manufacturing stages. These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate. These models strictly conform to IS: 1586-2000, BS: 891part 1&2
Application
Features
Specifications
| Model No. | BRS |
| Test Loads (Kgf) | 60, 100, 150 (Rockwell) |
| Initial Loads (Kgf) | 10 |
| Max. Test Height (mm) | 215 |
| Depth of Throat (mm) | 132 |
| Max. Depth of Elevating Screw Below Base (mm) | 230 |
| Size of Base (mm) (Approx.) | 430 X 180 |
| Machine Height (mm) | 635 |
| Net Weight kg. (Approx.) | 65 |
Accessories
- Rockwell Diamond Indenter : 1No.
- Testing Table (Ø 50 mm) : 1No.
- Testing Table (Ø 40 mm with V" Groove for round Jobs Ø 6 to45 mm : 1No.
- Steel Ball indenter 1/16” : 1No.
- Test Block HRC : 1No.
- Test Block HRB : 1No.
- Steel Ball Ø 1/16” : 5Nos.
- Allen Spanners : 3Nos.
- Clamping Device : 1No.
- Rubber Bellow : 1No
- PVC Cover for Machine : 1No.
- Instruction Manual : 1No.
Software Description
Download Cataloge
ENQUIRY
Standard Rockwell Hardness Tester
Description

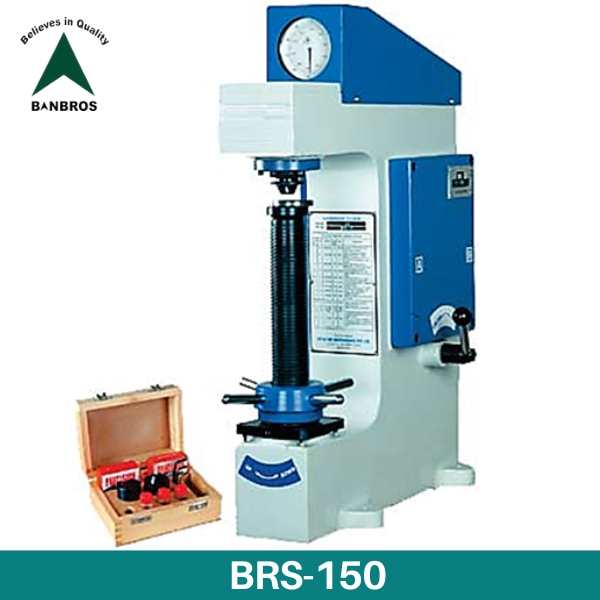

Our BRS-150 Hardness Testers are designed and developed after years of research & experience in this field. All the models are manufactured under strict quality control at all manufacturing stages. These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate. These models strictly conform to IS: 1586-2000, BS: 891part 1&2, ASTM-18 for Rockwell test.
Application
Features
Specifications
| Model No. | BRS-150 |
| Test Loads (Kgf) | 60, 100, 150 (Rockwell) |
| Initial Loads (Kgf) | 10 |
| Max. Test Height (mm) | 295 |
| Depth of Throat (mm) | 148 |
| Max. Depth of Elevating Screw Below Base (mm) | 290 |
| Size of Base (mm) (Approx.) | 475 X 220 |
| Machine Height (mm) | 865 |
| Net Weight kg. (Approx.) | 105 |
Accessories
- Rockwell Diamond Indenter : 1 pc
- Testing Table (Ø 50 mm) : 1 pc
- Testing Table (Ø 40 mm with V" Groove for round Jobs Ø 6 to45 mm : 1 pc
- Steel Ball indenter 1/16” : 1 pc
- Test Block HRC : 1 pc
- Test Block HRB : 1 pc
- Steel Ball Ø 1/16” : 5 pcs
- Allen Spanners : 3 pcs
- Clamping Device : 1 pc
- Rubber Bellow : 1 pc
- Instruction Manual : 1 pc
Software Description
Download Cataloge
ENQUIRY
Rockwell Hardness Tester
Description
Manual Rockwell hardness tester apply to test the hardness of metal materials. It has stable and reliable performance, it is economical Rockwell machine without electric power supply.
Application
Hardened steel, quenched and tempered steel, annealing steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc
Features
Specifications

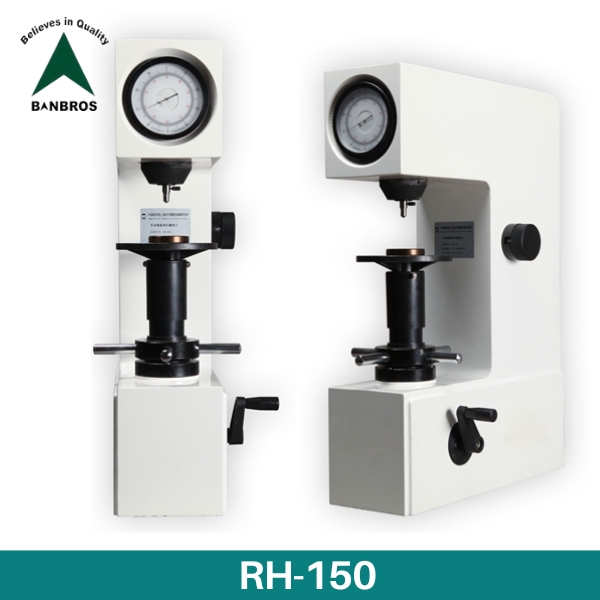

| Model No. | RH-150 |
| Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR |
| Conversion scale | Conversion table |
| Preliminary test force | 10Kg(98N) |
| Total test force | 60Kg (588N), 100Kg (980N), 150Kg (1471N) Tolerance range:±1.0% |
| Resolution | 0.5HR |
| Hardness value range | HRA:20∼88 HRB:20∼100 HRC:20∼70 |
| Hardness data read | Dial |
| Loading method | Manual |
| Dwell time | Manual |
| Allowed specimen measurement space | Maximum height :155mm Maximum throat depth:135mm |
| Size / weight | Instrument size:455*175*610mm (L⨯W⨯H) Net Weight: 65kg |
| Executive standard | GB/T230.2, ASTM E18, ISO 6508, JJG112 |
Accessories
- Rockwell hardness tester host : 1 set
- Diamond Rockwell indenter : 1 pc
- 1.588mm diameter hard alloy steel ball indenter : 1 pc
- Standard hardness block : 4 pcs
- Large testing table : 1 pc
- Medium testing table : 1 pc
- V-shape testing table : 1 pc
- 1.588 mm diameter steel ball : 5 pcs
- Dust-proof cover : 1 pc
- Accessory case : 1 pc
- Operating instruction : 1pc
- Quality certificate : 1 pc
- Hardness conversion table : 1 pc
- Warranty card : 1 pc
Software Description
Download Cataloge
ENQUIRY
Standard Rockwell Hardness Tester
Description

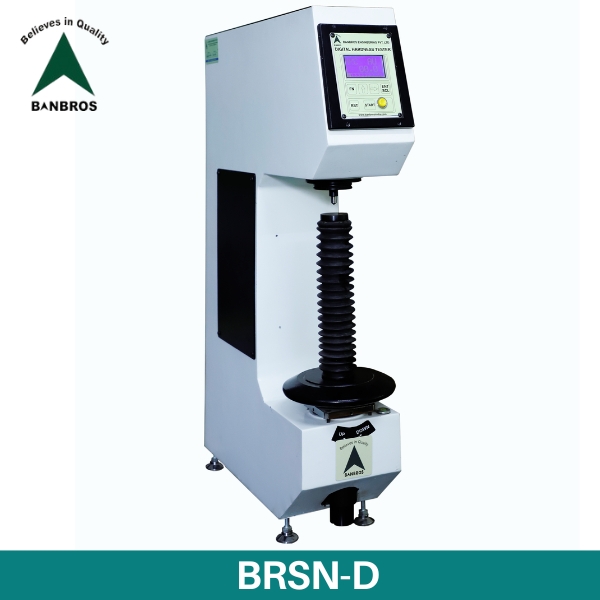

Our BRSN-D Rockwell Hardness Testing Machine is manufactured under strict quality control at all manufacturing stages. This model is suitable for testing hardness of metals and alloys of all kinds, hard or soft whether flat or round etc. or of irregular shape. This model is having superior design to that of existing conventional Rockwell Hardness Testers &easy to operate still quite sensitive &accurate
Application
Features
- Machine is having different Taper front look and superior aesthetic look over conventional Rockwell Hardness Tester.
- Unidirectional Big Dial type auto load selection knob for load selection of loads 60,100 &150 kgf.
- Most of the important parts are plated to avoid rusting.
- An antifriction linear bearing is fixed in Hardened & ground stepped bush which will provide perfect vertical movement of diamond holder. Thus the testing of small pin or ball upto 3mm dia is possible.
- All models conform to -
- IS : 1586, BS 10109-2, ASTM-E-18 & ISO : 6508-2 for Rockwell Test.
- LCD Graphical Display with 128 x 64 pixels & Results are displayed in BIG Font size
- Minor load is graphically displayed on LCD screen (Minor load auto brake system)
- Provision of Numbers. of tests, mean, standard deviation, maximum, minimum range, individual test hardness numbers in PC Software.
- Dwell Time setting for MAJOR Load 1 to 99 sec & MINOR load dwell time is 1-30 sec.
- 75 Results are stored in the system with automatic result data storage.
- User can enable auto save results storage in system or disable it.
- User can select appreciate scale according to weight selected.
- Motorized Automatic Loading or Manual Loading is selectable.
- Conversion of results from Rockwell to Brinell (HB) , Vickers (HV), Knoop (HK), Tensile Strength (KSI),
- Serial Port for Dot Matrix Printer or EPSON LX 300 +(optional).
- Print result consists of Serial No. Hardness Value and Hardness Scale
Specifications
| Model No. | BRSN-D |
| Test Loads (Kgf) | 60,100,150 |
| Initial Loads (Kgf) | 10 kgf. |
| Max. Test Height (mm) | 220 |
| Depth of Throat (mm) | 130 |
| Size of base (mm) approx | 600 * 200 |
| Machine height (mm) | 850 |
| Net weight (approx kg) | 90 kg. |
Accessories
- Rockwell Diamond Indenter
- Testing table dia 50 mm
- Testing table dia 40 mm with “V” groove for round jobs dia 6 to 45 mm
- Steel ball Indenter Dia 1/16
- Test block HRC
- Test block HRB
- Steel ball dia 1/16
- Allen Spanners
- Clamping Device
- Telescopic sleeves for elevating screw
Software Description
Download Cataloge
ENQUIRY

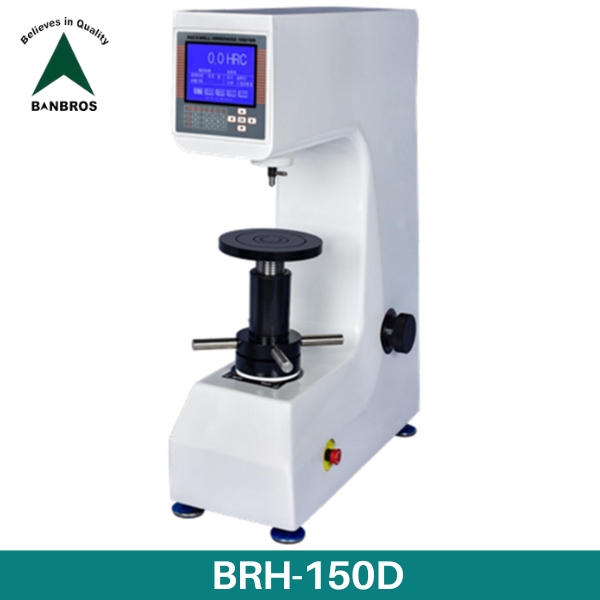

Digital Motorized Rockwell Hardness Tester
Description
BRH-150D digital Rockwell hardness tester has high level automation, stable and reliable performance, it is equipped with sophisticated sensors so that can test data more accurate; large digital LCD screen provide comprehensive data for quality control.
Application
Hardened steel, quenched and tempered steel, annealing steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.;
Features
- The LCD screen will display hardness value, conversion value, test force, dwell time, indenter info. etc directly, indicator responses sensitively, show the hardness value accurately, the test value is more accurate than national standard;
- Automatic loading - dwell - unloading test force, easy operate
- Support English language, menu structure
- Built-in printer can print test result directly
- One-time casted molding shell, stable structure and it is not easy to be out of shape. It can work under harsh environment; the shell coating adopted car paint technology with white color. it has strong scratch resistance capability and still look bright as new after use many years;
- The screw rod adopts the fine grinding process, which ensures that the machine can be lifted smoothly and without eccentricity, make test accuracy more higher and stable.
Specifications
| Model No. | BRH-150D |
| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH, HRK |
| Conversion scale |
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, H15N, H30N, H45N, H15T, H30T, H45T |
| Preliminary test force | 10Kg(98N) |
| Total test force | 60Kg (588N), 100Kg (980N), 150Kg (1471N) |
| Indication Resolution | 0.1HR |
| Hardness value range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-94, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-110, HRR:114-125 |
| Hardness data read | LCD screen |
| Loading method | Automatic (Load, Dwell, Unload) |
| Dwell time | 1-60S, each step 1 second |
| Data output | Built-in printer |
| Test space | Maximum height :230mm; Maximum throat depth:165mm |
| Machine Size / N.W | 520X240x720mm (L×W×H); 70kg |
| Package Size / G.W | Executive standard |
| Executive standard | GB/T230.2 , BSEN 6508, ASTM E18 , ISO 6508 , JJG112 |
Accessories
- Rockwell hardness tester host : 1 set
- V-shaped testing table : 1 pc
- Diamond Rockwell indenter : 1 pc
- Spare fuse 2A : 2 pc
- 1.588mm diameter hard alloy steel ball indenter : 1 pc
- Dust-proof cover : 1 pc
- Standard hardness block : 3 pc
- Accessory case : 1 pc
- Weights A/B/C : 3 pc
- Operating instruction : 1 pc
- Large testing table : 1 pc
- Quality certificate : 1 pc
- Medium testing table : 1 pc
- Warranty card : 1 pc
Software Description
Download Cataloge
ENQUIRY
Digital Rockwell Hardness Tester
Description
Application
- Quality control of Industrial production (machinery manufacturing, metallurgy plants, etc.)
- Research & Inspection of Inspection Institution and universities laboratories.
- Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, etc.
Features
- Modern and beautiful appearance, stable structure
- Touch screen interface, easy operation, English language
- Close loop structure, with high accuracy load cell instead of weights. Unnecessary for installing weights and debugging, installation more easy.
- Automatic loading - dwell - unloading
- All Rockwell scales, total 15 hardness scales
- Automatic correction of high, medium and low hardness numbers
- Automatic correction of load, with the force accuracy increased by a numerical level
- Data stored in USB flash disk, EXCEL format, easy for compiling and processing
- Adopt the modular design, easy maintenance
Specifications

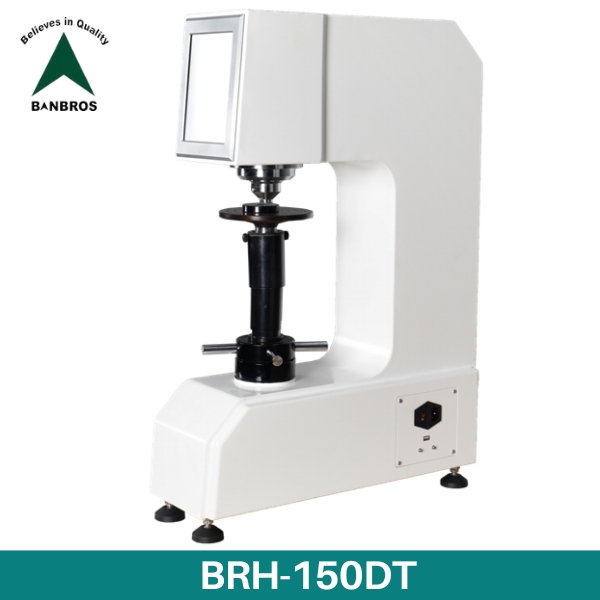

| Model No. | BRH-150DT |
| Initial Test force | 10kgf (98N) |
| Main Test force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Hardness scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion scale | HRA, HRB, HRC, HRD, HRE, HRF, HV, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Dwell time | 0-99s |
| Load value error | ＜0.5% |
| Hardness testing range | HRA: 20-88, HRB: 20-100, HRC: 20-70, HRD: 40-77 HRE: 70-100, HRF: 60-100, HRG: 30-94, HRH: 80-100 HRK: 40-100, HRL: 100-120, HRM: 85-115, HRR:114-125 |
| Resolution | 0.1HR |
| Executive standard | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Test space | 220*200mm (H*D) |
| Hardness reading | LCD display |
| Data output | USB flash disk in Excel format |
| Power supply | AC220V, 50/60HZ |
| Net weight | 70kg |
| Size | 560x220x750mm |
| Gross weight & Packing size | 780x470x940mm 90kg |
Accessories
- Diamond Rockwell indenter : 1
- Ball indenter with the diameter of 1.5875 mm : 1
- Hardness block (HRB, HRC high, HRC low value) : 3
- Large, medium, V-type testing table : 1 for each
- Power line : 1
- Dust-proof plastic housing : 1
- USB flash disk : 1
- Operating Instruction, Product Qualification Certificate : 1 for each
Software Description
Download Cataloge
ENQUIRY
Advanced Touch Screen Digital Rockwell Hardness Tester
Description
Application
- Quality control of Industrial production (machinery manufacturing, metallurgy plants, etc.)
- Research & Inspection of Inspection Institution and universities laboratories.
- Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Features
- With standard Rockwell hardness scales HRA, HRB, HRC, etc. With hardness conversion function.
- Touch screen control, on touch screen can select test force and hardness scale directly.
- Close loop load cell structure, no need install dead weights, easy installation and operation.
- USB interface can save test data to U-flash directly in Excel format
- Test force 60/100/150kgf
- Test space: 250 * 300mm (Throat depth*H)
- Dolphin Nose Indenter (Nose mounted indenter) allows access to awkward to reach test points:
- 1) Ring shape material
- 2) Tubular material
- 3) Screw corner
- 4) Bearing corner, etc.
Specifications

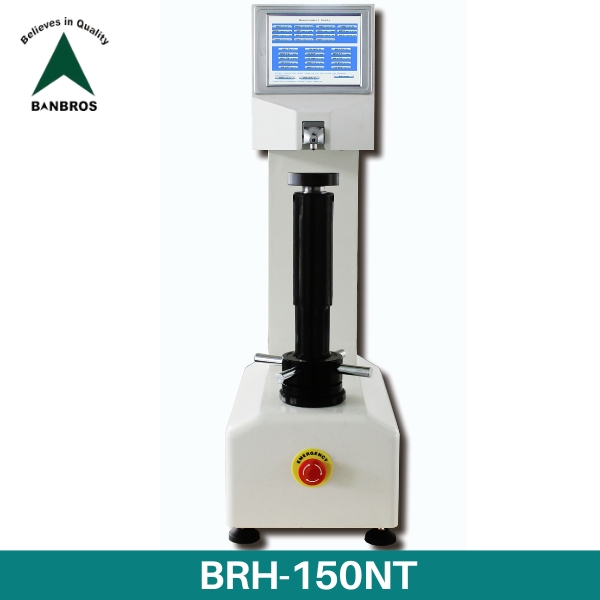

| Model No. | BRH-150NT |
| Test force (error < 0.5%) | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N); Initial force: 10kgf (98N) |
| Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Superficial Rockwell scale | 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y |
| Conversion scales |
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Rockwell Testing range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-115 HRR:114-125 |
| Dwell time | 0-99s |
| Display of Hardness Value | Touch LCD screen |
| Test accuracy | 0.1HR |
| Executive standard | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Data output | USB flash disk (Excel format) |
| Power supply | AC220±5%, 50-60Hz |
| Test space | Max. Height: 300mm; Throat depth: 250mm |
| Machine size | 720*260*840mm |
| Net weight | 80kg |
Accessories
- Diamond Rockwell indenter : 1
- Ø1.5875mm Ball indenter : 1
- Hardness block (HRC high / low, HRB) : 3
- Large, medium, V-type working table : 1 for each
- USB flash disk : 1
- Touch screen pen : 1
- Fuse 2A : 2
- Horizontal adjustment screw : 4
- Power cable : 1
- Product Certificate, warranty card, manual book : 1 for each
Software Description
Download Cataloge
ENQUIRY
Dolphin Nose Indenter Digital Touch Screen Rockwell Hardness Tester
Description

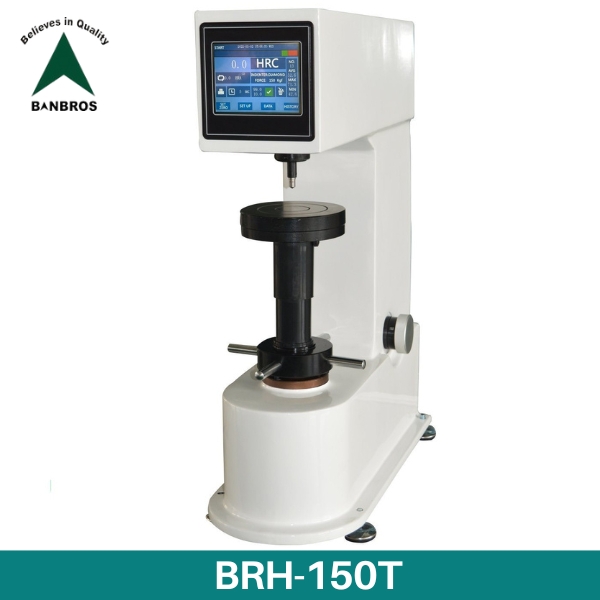

BRH-150T Digital touch screen Rockwell hardness tester has high level automation, stable and reliable performance, it is equipped with sophisticated sensors so that can test data more accurate; large touch screen provide comprehensive data for quality control.
- Color touch screen with menu structure, easy operate;
- Status bar show the test process in real time.
- With hardness conversion function (HV, HBW, etc.)
- With printer, test data can print out directly
- Test force - Indenter type show on screen, avoid mistakes
- Brightness is adjustable, to meet different visual habit
- Car paint processing appearance, looking beautiful
Application
Hardened steel, quenched and tempered steel, annealing steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.
Features
- The color touch screen will display hardness value, conversion value, test force, dwell time, indenter info. etc directly, indicator responses sensitively, show the hardness value accurately, the test value is more accurate than national standard;
- Automatic loading - dwell - unloading test force, easy operate
- Support English & Chinese language, menu structure
- Built-in printer can print test result directly
- One-time casted molding shell, stable structure and it is not easy to be out of shape. It can work
- under harsh environment; the shell coating adopted car paint technology with white color. it has strong scratch resistance capability and still look bright as new after use many years;
- The screw rod adopts the fine grinding process, which ensures that the machine can be lifted smoothly and without eccentricity, make test accuracy more higher and stable.
Specifications
| Model No. | BRH-150T |
| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH, HRK |
| Conversion scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, H15N, H30N, H45N, H15T, H30T, H45T |
| Preliminary test force | 10Kg(98N) |
| Total test force | 60Kg (588N), 100Kg (980N), 150Kg (1471N) Tolerance range:±1.0% |
| Indication Resolution | 0.1HR |
| Hardness value range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:50-115 HRM:50-115, HRR:50-115 |
| Hardness data read | Color touch screen |
| Loading method | Automatic (Load, Dwell, Unload) |
| Dwell time | 1-60S, each step 1 second |
| Data output | Built-in printer, RS232 port |
| Test space | Maximum height :200mm; Maximum throat depth:160mm |
| Machine Size / N.W | 520X240x720mm (L×W×H); 85kg |
| Package Size / G.W | 600*365*900mm; 100kg |
| Executive standard | GB/T230.2 , BSEN 6508, ASTM E18 , ISO 6508 , JJG112 |
Accessories
- Rockwell hardness tester host : 1 set
- Medium testing table : 1 pc
- Diamond Rockwell indenter : 1 pc
- V-shaped testing table : 1 pc
- 1.588mm diameter hard alloy steel ball indenter : 1 pc
- Dust-proof cover : 1pc
- Standard hardness block : 3 pcs
- Accessory case : 1 pc
- Large testing table : 1 pc
- Operating instruction : 1 pc
- Weights : 3 pcs
- Quality certificate : 1 pc
- Warranty card : 1 pc
Software Description
Download Cataloge
ENQUIRY

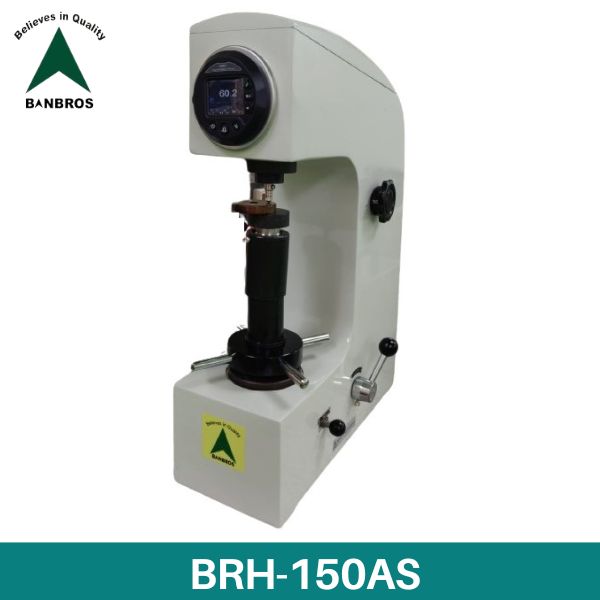

Digital Touch Screen Rockwell Hardness Tester
Description
Digital Manual Rockwell Hardness Tester is the ability of a material to resist elastic deformation, plastic deformation or destructive force. For the hardness test performed by the press-in method, hardness is the ability of a substance to resist being pressed into its surface by another harder object with a certain shape and size.
Application
Rockwell hardness test can choose different indenter and test force according to material hardness range and test thickness, and expressed by different scales. The most commonly used scales are A, B, C scales. The following table shows the test forces of common scales. Indenter, the value of constant K, the scope of application and application examples.
Features
Rockwell hardness test adopts the method of measuring indentation depth, hardness value is read out directly by indication, so the operation is simple and convenient, easy to master, high working efficiency, suitable for batch parts inspection; Rockwell hardness test method can be used to measure hard and soft samples. Rockwell hardness meter is the most commonly used test instrument for hardness test and teaching and scientific research in production enterprises, colleges and universities and scientific research institutions.
Specifications
| Model No. | BRH- 150AS |
| Initial test force | 98.07N?10kgf? |
| Total test power | 588.4N?60kgf?980.7N?100kgf?1471N (150kgf) |
| Indicator | Digital display |
| Maximum height of specimen When the lead screw protector is | Added100mm Without a lead screw cover170mm |
| Indentation center distance to machine wall | 135mm |
| Hardness gauge shape dimensions | 466×238×630mm |
| Hardness gauge net weight | 65kg |
Accessories
Software Description
Download Cataloge
ENQUIRY

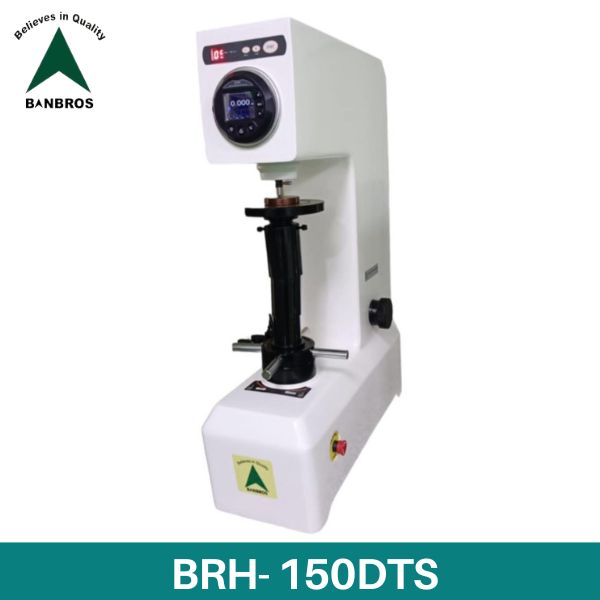

Digital Rockwell Hardness Tester (Manual)
Description
The Rockwell hardness test can choose different indenters and test forces according to the hardness range of the material and the test thickness, and use different scales to indicate them. The most commonly used scales are A, B, and C scales. The following table shows the test forces of commonly used scales. Indenter, the value of constant K, the scope of application and application examples.
Application
| Model No. | BRH- 150DTS |
| Initial test force | 98.07N (10kgf) |
| Total test force | 588.4N (60kgf) 980.7N (100kgf) 1471N (150kgf) |
| Display Digital Rockwell | Meter display |
| The maximum height of the test piece is 100mm when the screw protective cover is added | 200mm without screw protective cover |
| The distance from the center of the indentation to the wall of the machine is | 155mm |
| Overall dimensions of hardness tester | 550×200×770mm |
| Working voltage | 220V/50HZ |
| Net weight of hardness tester | 83kg/90kg in packing box |
Features
Specifications
Accessories
Software Description
Download Cataloge
ENQUIRY
Digital Motorized Rockwell Hardness Tester
