Description

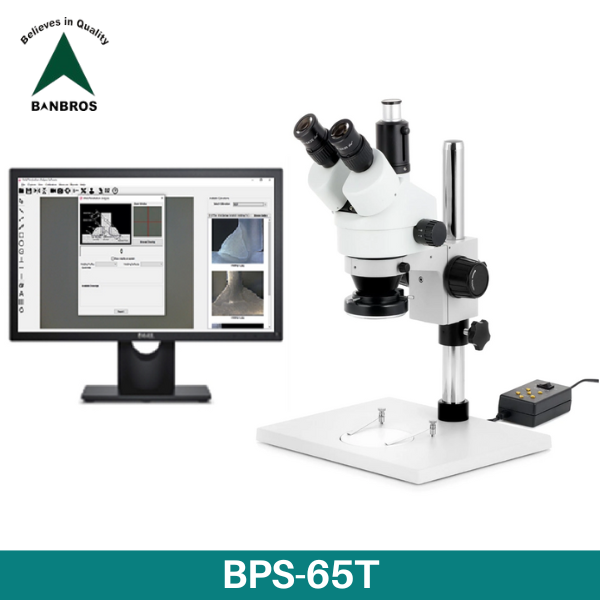

BANBROS offers you the most advance system of Brazing Penetration Measurement with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user-friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.

Application

Features

• Operating System: Support to windows10.
• Picture Element: High-resolution CMOS chip.
• Output: USB is used to adapt with pc.
• Power: It is freely plugged and unplugged with no extra power.

Specifications

Accessories

HI-DEFINITION INDUSTRIAL DIGITAL USB MICROSCOPIC CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro- Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the Integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.

It can provide support for detail image demonstration and analysis/application, including following function:

• Take Photo and Save Picture into Computer
• Take Video and Save Video into Computer

Software Description

1)    Brazing Penetration:
a)    Penetration depth & percentage.
b)    Leg measurement.
c)    Throat measurement.
d)    Thickness measurement.
e)    Can set tolerances for each parameters.
f)    Can feed sample information in Report.
g)    Automatic pass/fail status identification based on observed value and tolerances.

2)    Calibration: This tool is used for calibrating through calibration scale.

3)    Dimensional Measurement:
a)    Line
b)    Length (Linear, Horizontal, Vertical)
c)    Angle (two-line angle, three-line angle)
d)    Distance (two point)
e)    Radius (three point)
f)     Diameter (three point)

4)    Report:
a)    PDF & M.S. Excel
b)    Printout with Processed imaged and results.

Download Cataloge

Click Here For Brochure
