Description

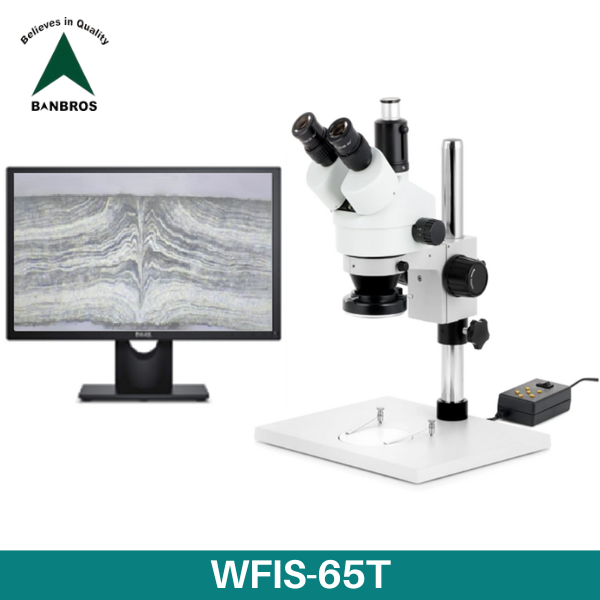

BANBROS offers you the most advance system of weld Flow inspection with specially design high resolution microscope and USB digital microscopic camera to view and instantly capture a photograph and measure exact weld penetration depth in all type of weld sample with the help of user-friendly software. The system can be used to measure all dimensional measurement (2D) like length distance radius diameter etc.

Application

Features

• Operating System: Support to windows10.
• Picture Element: High-resolution CMOS chip.
• Output: USB is used to adapt with pc.
• Power: It is freely plugged and unplugged with no extra power.

Specifications

Accessories

HI-DEFINITION INDUSTRIAL DIGITAL USB MICROSCOPIC CAMERA:
It looks like an eyepiece. It can be easily inserted into eyepiece tube of microscope. The Digital Micro- Image Displays Immediately on computer or notebook PC. It is used in the field of image demonstration and analysis/application.
BMEX-Series can be easily inserted into eyepiece tube of microscope. The Digital Micro-Image Displays Immediately on computer or notebook PC. This camera ranges is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. The camera hardware resolutions range from 2M.P, 5M.P, 12M.P and comes with the Integrated zinc aluminium alloy compact housing. It comes with advanced video & image processing application ultracam; providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API. It can be widely used in bright-field light environment and microscope image capture and with moderate frame rate.

It can provide support for detail image demonstration and analysis/application, including following function:

• Take Photo and Save Picture into Computer
• Take Video and Save Video into Computer

Software Description

1)    Dimensional Measurement:
a)    Line
b)    Length (Linear, Horizontal, Vertical)
c)    Angle (two-line angle, three-line angle)
d)    Distance (two point)
e)    Radius (three point)
f)     Diameter (three point)

2)    Calibration: This tool is used for calibrating through calibration scale.


3)    Report:
a)    PDF & M.S. Excel
b)    Printout with Processed imaged and results.

Download Cataloge

Click Here For Brochure

Description

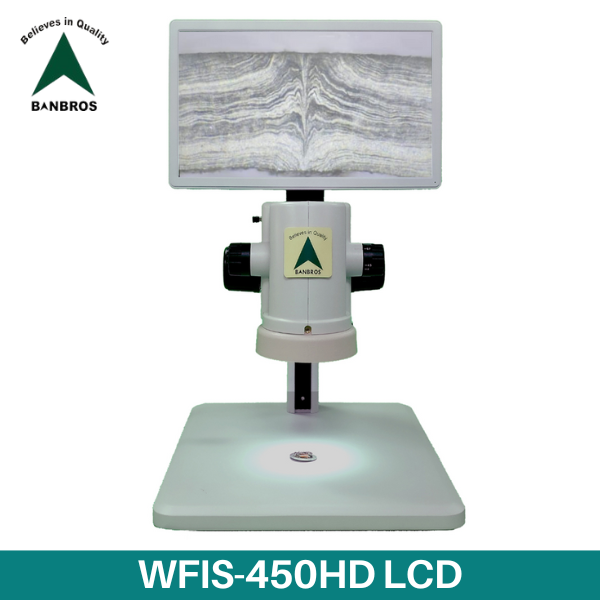

WFIS-450HD LCD Hi-Definition Video Inspection System with Measurement Software, comes with pillar stand and 12″    LCD monitor with high ratio zoom lens and built-in HD Industrial camera. This series of microscope offers a large zoom range, long working distance, especially LCD monitor display, which is a perfect instrument for industrial inspection.

Application

Features

• The Image can be easily viewed by many people on LCD monitor at the same time.
• Improve the working condition also can soften the tiredness caused by a long time observation. Integrated structure, easily operation, Small size and can save space.
• The Magnification can be zoomed by non-step.
• There is “+” for purpose of positioning and measurement.
• Easily equipment, it can be work properly by put it on stable place.

Specifications

Accessories

Software Description

Download Cataloge

Click Here For Brochure
