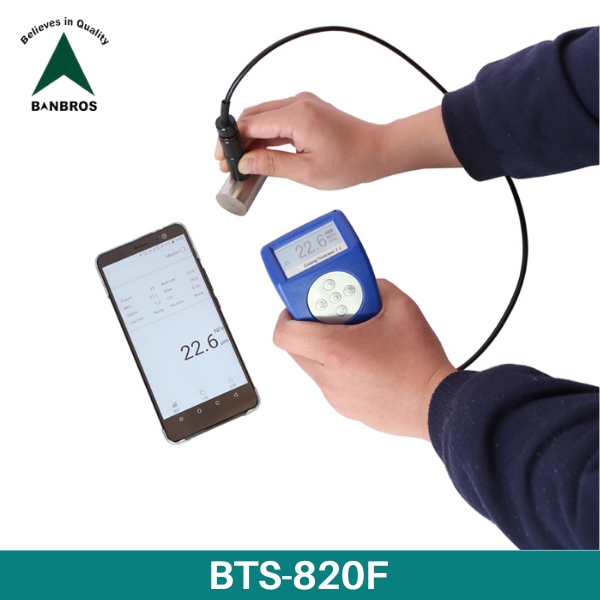

BTS-820F
Coating Thickness Gauge
Description
Powder coating thickness gauge for aluminum ferrous BTS820F.
Application
Features
- Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.
- Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
- Power voltage indicator. Supply by USB 5V or 2 AA batteries (AA)
- Speaker beep while operating.
- Power-off automatically when idle; manually power-off available.
- Negative display function to ensure the accuracy of zero point calibration.
- Ultra-low power consumption, less than 10 μA in standby mode.
- Operation method: Graphic menu button operation
- Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
- Data transfer: USB, Bluetooth
- PC software: Windows PC, Android App , iOS App
Specifications
| Model No. | BTS-820F |
| Measuring range | 0~1500µm (0-1.5mm) 0~60mil |
| Resolution | 0.1 µm (0-99.9 µm) and 1 µm (over 100 µm) |
| Accuracy | ±1-2% |
| Min. measuring area | 5mm |
| Min. sample thickness | 0.3mm |
| Power supply | 2 x1.5V AA battery |
| Battery indicator | Low battery indicator |
| Dimension | 126 x 69 x 35 mm |
| Weight | 97g ( Including Batteries) |
| Operating Conditions | Temp: 10-50°C and Humidity:≤ 85% |
| Application | Measuring Coating Thickness |
Accessories
Software Description
Download Cataloge
ENQUIRY
BTS-820F
Coating Thickness Gauge
Coating Thickness Gauge

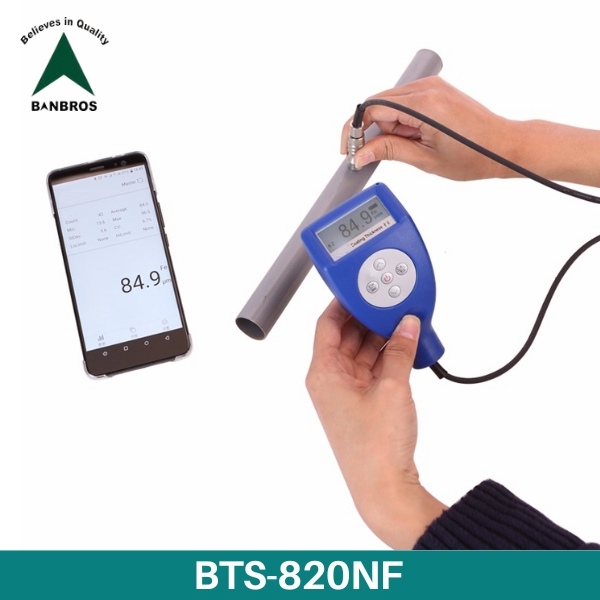

BTS-820NF
Coating Thickness Gauge
Description
This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for material protection major.
Application
Features
- Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.
- Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
- Power voltage indicator. Supply by USB 5V or 2 AA batteries (AA)
- Speaker beep while operating.
- Power-off automatically when idle; manually power-off available.
- Negative display function to ensure the accuracy of zero point calibration.
- Ultra-low power consumption, less than 10 μA in standby mode.
- Operation method: Graphic menu button operation
- Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
- Data transfer: USB, Bluetooth
- PC software: Windows PC, Android App , iOS App
Specifications
| Model No. | BTS-820NF |
| Measuring range | 0~1250µm |
| Measurement deviation | 0 Calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5 |
| Ambient temperature | 0-40°C |
| Relative humidity | ≤85% |
| Minimum substrate | 10 * 10mm |
| Power supply | 2 * AA battery |
| Minimum curvature | 5mm convex; 5mm concave |
| Size | 102mm x 66mm x 24 mm |
| Weight | 99g ( With Batteries) |
| Thinnest substrate | 0.4mm |
| Application | Measuring Coating Thickness |
Accessories
Software Description
Download Cataloge
ENQUIRY
BTS-820NF
Coating Thickness Gauge
Coating Thickness Gauge

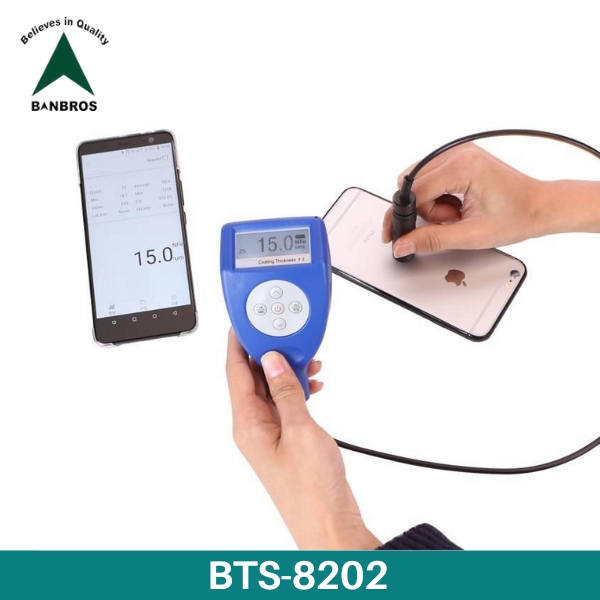

BTS-8202
Coating Thickness Gauge
Description
Powder coating thickness gauge for aluminum ferrous and non-ferrous BTS8202.
Application
Features
- Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate.
- Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.
- Power voltage indicator. Supply by USB 5V or 2 AA batteries (AA)
- Speaker beep while operating.
- Power-off automatically when idle; manually power-off available.
- Negative display function to ensure the accuracy of zero point calibration.
- Ultra-low power consumption, less than 10 μA in standby mode.
- Operation method: Graphic menu button operation
- Human-computer interaction: buttons, backlight dot matrix screen, light, buzzer
- Data transfer: USB, Bluetooth
- PC software: Windows PC, Android App , iOS App
Specifications
| Model No. | BTS-8202 |
| Measuring range | 0~1500µm /0~60mil (default range) |
| Resolution | 0.1um(0-99um)/1um (over 100um) |
| Accuracy | ±1-2%n or ±2.5um |
| Min. radius work piece | F: Convex 1.5mm/ Concave 25mm N: Convex 3mm/ Concave 50mm |
| Min. measuring area | 5mm |
| Min. sample thickness | 0.3mm |
| Power Supply | 2 x 1.5V AA battery |
| Battery Indicator | Low Battery indicator |
| Dimension | 126 x 69 x 35mm |
| Application | Measuring Coating Thickness |
Accessories
Software Description
Download Cataloge
ENQUIRY
BTS-8202
Coating Thickness Gauge
Coating Thickness Gauge
