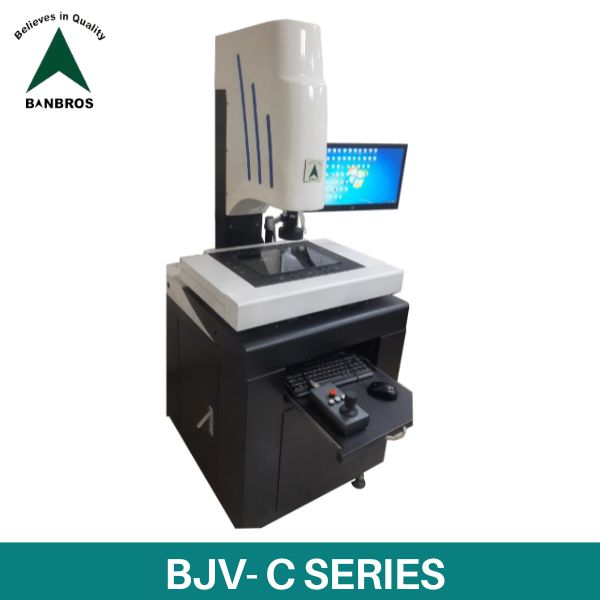

- Video Measuring Machine (CNC)
Description
These are Automatic type video measuring machine with three different XYZ travel for selection.
These Machines are equipped with high quality CCD, powerful 2D measuring software and computer. The machine can measure various workpiece such as electronic components, punching parts, plastic and rubber parts etc effectively.
It allows customers to carry out scientific analysis for the production flow to find error trend in the flow and problems in the operations. In addition, all measurement results may be outputted in popular office software, such as Excel, Word to make customers save results conveniently for working out a quality inspection report or analyzing further.
Application
These Machine are widely used in measurement services at various levels or workshops' inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, and colleges and universities, scientific research institutes, etc.
Features
- 24-phase programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated workpieces, with higher measurement accuracy.
- Imported NAVITAR lenses adopted and combined with Motor Zoom technique to realize full-auto zooming can arbitrarily transform focal variation ratio and it is unnecessary to carry out linear correction.
- Having 4-axel CNC controlling system (X/Y/Z Full closed-loop servo control system and U-axel step-by-step control system).
- The lens with fixed multiplying factor locationing and the software is adopted; It is unnecessary to carry out linear correction.
Specifications
| Model No | BJV-300C | BJV-400C | BJV-500C |
| X-Travel | 300mm | 400mm | 500mm |
| Y-Travel | 200mm | 300mm | 400mm |
| Z-Travel | 200mm | 200mm | 200mm |
| Operating Mode | All three axis are motorized driven (X,Y,Z) | ||
| Resolution(X/Y) | 0.0005mm | ||
| Repeatability | 0.002mm | ||
| Accuracy | (3+L/200) µm | ||
| Worktable load capacity | 30kg | ||
| CCD | 1/3Ë 430,000-pixel colour | 1/3Ë 410,000-pixel colour | |
| Optical Magnify Zoom | 0.7-4.5x | ||
| Image Magnification | 28x-180x | ||
| Applicable Environment | Temp: 20±5°C Humidity:45-75% |
||
Accessories
Software Description
Download Cataloge
ENQUIRY
Vision Measurement Machine
All three Axis motorized
Description

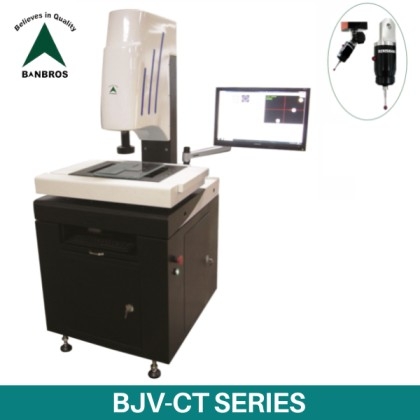

These BANBROS BJV-CT Series Video Measuring Machines are Numeric Controlled Video Measuring Machines with Touch Probe and all three axis Motorized.
These are Automatic type video measuring machine with three different XYZ travel for selection.
These Machines are equipped with high quality CCD, powerful 2D measuring software and computer. The machine can measure various workpiece such as electronic components, punching parts, plastic and rubber parts etc effectively.
It allows customers to carry out scientific analysis for the production flow to find error trend in the flow and problems in the operations. In addition, all measurement results may be outputted in popular office software, such as Excel, Word to make customers save results conveniently for working out a quality inspection report or analyzing further.
Application
These Machine are widely used in measurement services at various levels or workshops' inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, and colleges and universities, scientific research institutes, etc.
Features
- 24-phase programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated workpieces, with higher measurement accuracy.
- Imported NAVITAR lenses adopted and combined with Motor Zoom technique to realize full-auto zooming can arbitrarily transform focal variation ratio and it is unnecessary to carry out linear correction.
- Having 4-axel CNC controlling system (X/Y/Z Full closed-loop servo control system and U-axel step-by-step control system).
- The lens with fixed multiplying factor locationing and the software is adopted; It is unnecessary to carry out linear correction.
Specifications
| Model No | BJV-300CT | BJV-400CT | BJV-500C |
| X-Travel | 300mm | 400mm | 500mm |
| Y-Travel | 200mm | 300mm | 400mm |
| Z-Travel | 200mm | 200mm | 200mm |
| Operating Mode | All three axis are motorized driven (X,Y,Z) With Renishaw Touch Probe |
||
| Resolution(X/Y) | 0.0005mm | ||
| Repeatability | 0.002mm | ||
| Accuracy | (3+L/200) µm | ||
| Stage Load Capacity | 30kg | ||
| CCD | 1/3Ë 430,000-pixel colour | 1/3Ë 410,000-pixel colour | |
| Optical Magnify Zoom | 0.7-4.5x | ||
| Image Magnification | 28x-180x | ||
| Applicable Environment | Temp: 20±5°C Humidity: 45-75% |
||
Accessories
Software Description
Download Cataloge
ENQUIRY
Vision Measurement Machine
All three Axis motorized with Touch Probe
