- Horizontal Profile Projector
This instrument can test effectively profile, section and surface shapes of various complicated work pieces, such as temples, punching pieces, cams, gears, forming cutters, mercerizes etc.It is widely used in workshops and measuring stations of those industry: machinery, instrument & meter, watch making, mould and electron etc.
- It is horizontal structure, so it is convenient to measure axial work-pieces, and it has a long working distance.
- The up and down movement system and work table transmission both adopt the imported V-style straight-line guide, so transmission is very smooth and comfortable.
- Two kinds of illumination systems (high and low levels) can meet various illumination requirements of different workpiece and materials.
- Reflecting illumination adopts fibre-optic transmission, so it has the characteristics of small volume, high-brightness and convenient operation
- Worktable is made of aluminum alloy material, so it is very light.
- Image of is clear and symmetrical
- It is convenient to trim and file the templates, mould and axial work-piece on the worktable.
- Powerful built-out digital displayer is convenient for operation.
- Worktable can deflect ± 15°, so it is available to measure screw angle work-pieces.
|Screen dia||300 mm||400 mm||500 mm||600 mm|
|Work Stage||300 x 200 mm||550 x 300 mm||650 x 300 mm||650 x 300 mm|
|Travel||150 x 100 mm||220 x 150 mm||270 x 170 mm||270 x 170 mm|
|Movement||With fine pitch lead-screw||With fine pitch lead-screw||With fine pitch lead-screw||With fine pitch lead-screw|
|Dist. Between center||150 mm||300 mm||300 mm||300 mm|
|Illumination||24V-150W halogen bulb||24V-150W halogen bulb||24V-150W halogen bulb||24V-150W halogen bulb|
|Lens Mounting||Insert||Turret type||Turret type||Turret type|
|Accuracy||0.10% on dia & 0.15% on Surface||0.10% on dia & 0.15% on Surface||0.10% on dia & 0.15% on Surface||0.10% on dia & 0.15% on Surface|

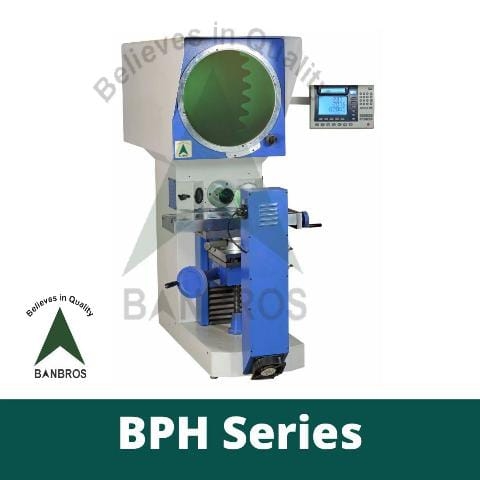

Horizontal Profile Projector
With Data Processor
