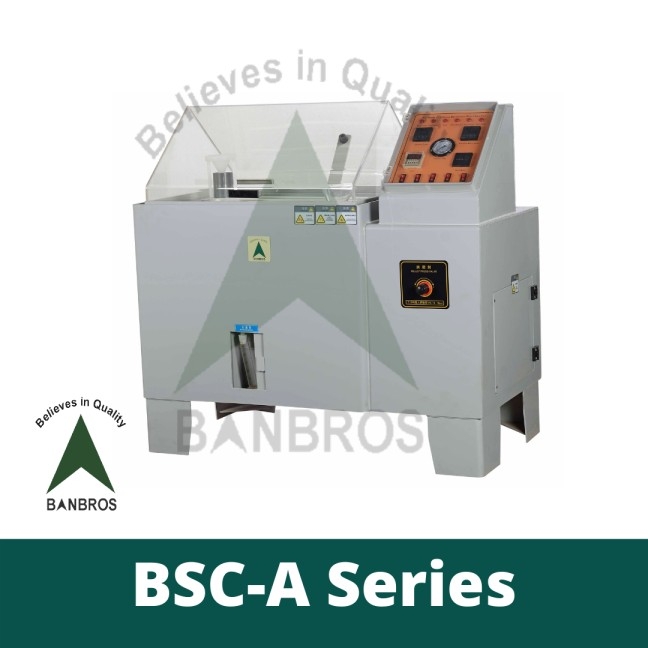

Description
This tester is designed for surface treatment of corrosion-resistant capacity test for various materials, including paint, electroplating, organic and inorganic film, anti-rust oil, chemical treatment, and then achieves a long period of resistance to corrosion products.
Application
- Salt Spray Testing is popular because it is relatively inexpensive, quick, well standardized, and reasonably repeatable. Although there may be a weak correlation between the duration in salt spray test and the expected life of a coating in certain coatings such as hot dip galvanized steel, this test has gained worldwide popularity due to low cost and quick results.
- Salt Spray Chambers are used to maintain coating processes such as pre-treatment and painting, electroplating, galvanizing, and the like, on a comparative basis.
- For example, pre-treated + painted components must pass 96 hours Neutral Salt Spray, to be accepted for production.
- Failure to meet this requirement implies instability in the chemical process of the pre-treatment, or the paint quality, which must be addressed immediately, so that the upcoming batches are of the desired quality.
- The longer the accelerated corrosion test, the longer the process remains out of control, and larger is the loss in the form of non-conforming batches. The principle application of the salt spray test is therefore enabling quick comparisons to be made between actual and expected corrosion resistance. Most commonly, the time taken for oxides to appear on the samples under test is compared to expectations, to determine whether the test is passed or failed.
- For this reason the salt spray test is most often deployed in a quality audit role, where, for example, it can be used to check the effectiveness of a production process, such as the surface coating of a metallic part.
Features
- Automatic add water when water shortage, with a group of manually water
- Special glass nozzle, guarantee non-crystalline block for 4000 hours
- With dual over-temperature protection, water shortage warning, ensure safety use
- Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
- Chamber adopts direct steam heating method, fast warming, shortening standby time
- Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.
Specifications
Model | BSC-108A | BSC-270A | BSC-480A | BSC-800A |
---|---|---|---|---|
Interior Dimensions (mm) | 600X450X400 | 900X600X500 | 1200X850X500 | 1600X1000X550 |
Exterior Dimensions(mm) | 1130X630X1070 | 1460X910X1280 | 2200X1200X1450 | 2600X1450X1550 |
Chamber Volume | 108 Ltr. | 270 Ltr. | 480 Ltr. | 800 Ltr. |
Solution Tank | 15 L | 25 L | 40 L | 40 L |
Power Supply | AC 220V 50HZ | |||
Ambient temp. & humidity range | +5℃ ~ +35℃ / <85% RH | |||
Testing Temperature | NSS ACSS 35℃±1℃ / CASS 50℃±1℃ | |||
Air Temperature | NSS ACSS 47℃±1℃ /CASS 63℃±1℃ | |||
Solution Consistence | NaCl 5% | |||
PH Value | NASS ACSS:6.5~7.2 / CASS:3.0~3.2 | |||
Temperature fluctuation | ≦±0.5℃ | |||
Temperature uniformity | ≦2. 0℃ | |||
Temperature deviation | ≦±2.0℃ | |||
Spray quantum | 1.0~2.0(ml/80cm2/h) | |||
Chamber Material | polyvinyl chloride (PVC) | |||
Heater | Corrosion-resistant titanium tube | |||
Temperature sensor | Platinum Resistance (PT-100) | |||
Safety device | Over-temperature protection, leakage protection |
Standard Accessories:
1. Bracket for 1 set (can carry the weight of test samples under 2kgs).
2. 500g Nacl reagent contained in 2 bottles (contained in 4 bottles for standard type)
3. 10kg barrel for salt water making: 1 No.
4. 80cm2 standard collecting cup: 1 No. (2pcs. for standard type)
5. 50ML graduated cylinder: 1 No. (2pcs. for standard type)
6. The detailed operational manual: 1
