BKB-3000M
Manually Operated Brinell Hardness Tester
Description
BKB-3000M is a precision engineered Hardness Testing machine conforming to IS 2281- 2005 & BS 240 and ASTM-E-10. This simple mechanical machine features loading/ unloading through a manually operated lever. It is most suitable for measuring the hardness of steel and other materials of various shapes.
Application
Features
- Brinell Hardness Tester, Model: BKB-3000M is designed for Brinell hardness measurement steels and other ferrous materials and also on non ferrous materials like Brass, Bronze, Aluminum, etc. The material can be cast, forged or rolled and the shape can be flat, round or irregular.
- The actual load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test and damping the load application system for smooth application of load.
- Our unique design of a floating lever system ensures high accuracy and dependability.
Specifications
| Model. No. | BKB-3000M |
| Operate | Mechanical |
| Loads Kgf | 500, 750, 1000, 1500, 2000, 2500, 3000 |
| Max. Test Height X Throat (mm) | 220 X 150 |
| Depth of elevating Screw below Base (mm) | 180 |
| Machine Height (mm) (Appx.) | 860 |
| Size of Base (mm) (Appx.) | 270 x 500 |
| Net. Weight. Kg (Appx.) | 210 |
| Indentation Measurement | By Separate Microscope. |
Accessories
- Testing Table dia 50 mm : 1 pc
- Testing table dia 70mm with 'V' groove for round jobs dia 10 to 80mm : 1 pc
- Ball Holder dia 10mm with T.C. Ball : 1 pc
- Test Block HB- 10/3000 : 1 pc
- Brinell Microscope : 1 pc
- Allen spanner : 4 pcs
- Instruction Manual : 1 book
Software Description
Download Cataloge
ENQUIRY
BKB-3000M
Manually Operated Brinell Hardness Tester
Manually Operated Brinell Hardness Tester
BOPF-3000
Optical Brinell Hardness Tester
Description
This is a Brinell Hardness Testing Machine with optical device with built in optical device with 14 X magnification provided in front to project diameter of ball impression on glass screen with a micrometer measuring system with 0.01 mm least count.
In this machine the indenter swells and projects diameter of ball impression immediately after unloading operation, which avoids additional time for measurement of ball impression. This is a production-testing machine most suitable for foundry, forging shops, heat treatment shops, engineering institutions etc.
Application
Features
Specifications
| Model No. | BOPF-3000 |
| Loads Kgf | 500 to 3000 in Stages of 250 |
| Initial Load. Kgf | Nil |
| Max. Test Height X Throat (mm) | 380 X 200 |
| Depth of elevating Screw below Base (mm) | 180 |
| Machine Height (mm) (Appx.) | 1225 |
| Size of Base (mm) (Appx.) | 380 X 740 |
| Net. Weight. Kg (Appx.) | 425 |
| Drive Motor- Hp | 0.33 |
| Mains. Supply. | 415V, 50Hz, 3 Ph AC |
| Indentation Measurement | Direct reading optical device with 14 X Magnification. |
Accessories
- Testing Table dia 200 mm : 1 pc
- Testing Table dia 70 mm with 'V' groove for round Jobs dia 10 to 80 mm : 1pc
- Ball Holder dia 5mm with T.C. Ball : 1 pc
- Ball Holder dia 10mm with T.C. Ball : 1 pc
- Test Block HB - 5 / 750 : pc
- Test Block HB - 10/3000 : pc
- Telescopic cover for elevating screw protection : 1 set
- Allen Spanner : 4 pcs
- Instruction Manual : 1 book
Software Description
Download Cataloge
ENQUIRY
BOPF-3000
Optical Brinell Hardness Tester
Optical Brinell Hardness Tester
BKB-3000
Hydraulically Operated Brinell Hardness Tester
Description
Machine designed with a hydraulic power pack and control circuit for effortless loading/ unloading operation. A dial gauge in front measures depth of ball penetration. This facilitates production testing with tolerance limits by comparison method.
Application
Features
- Brinell Hardness Tester, Model: BKB-3000 is designed for Brinell hardness measurement steels and other ferrous materials and also on non ferrous materials like Brass, Bronze, Aluminum, etc. The material can be cast, forged or rolled and the shape can be flat, round or irregular.
- The actual load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test and damping the load application system for smooth application of load.
- A separate hydraulic power pack, positioned in the bottom part of the machine increases the machine stability.
- Our unique design of a floating lever system ensures high accuracy and dependability.
Specifications
| Model No. | BKB-3000 |
| Loads Kgf | 500 to 3000 in Stages of 250 |
| Initial Load. Kgf | 250 |
| Max. Test Height X Throat (mm) | 380 X 200 |
| Depth of elevating Screw below Base (mm) | 180 |
| Machine Height (mm) (Appx.) | 1145 |
| Size of Base (mm) (Appx.) | 400 x 740 |
| Net. Weight. Kg (Appx.) | 325 |
| Drive Motor- Hp | 0.05 |
| Mains. Supply. | 415V, 50Hz, 3 Ph AC |
| Indentation Measurement | Separate Microscope. |
Accessories
- Testing Table dia 200 mm : 1 pc
- Testing Table dia 70 mm with 'V' groove for round Jobs dia 10 to 80 mm : 1 pc
- Ball holder dia 5 mm : 1 pc
- Boll holder dia 10mm : 1 pc
- Test Block HB - 5 / 750 : 1 pc
- Test Block HB - 10/3000 : 1 pc
- Brinell Microscope (25 x Magnification) : 1 pc
- Allen Key set : 1 set
- Tungsten carbide ball dia 5 mm : 1 pc
- Tungsten carbide ball dia 10 mm : 4 pcs
- Instruction Manual : 1 book
Software Description
Download Cataloge
ENQUIRY
BKB-3000
Hydraulically Operated Brinell Hardness Tester
Hydraulically Operated Brinell Hardness Tester
BHE-3000M
Electric Brinell Hardness tester
Description
Brinell hardness with huge test force, the indentation is large, which adapts to test the big size grain metal, reflecting the combination property. Cast iron, steel, ferrous metal especially for rather soft metal, such as pure aluminum, lead, tin etc.
Application
Features
- Equipped with sophisticated sensors and a microcomputer control system, dynamic force value fluctuation is less than 1/1000, test results are more accurate.
- It possesses the 10 grades test force, it can test 10 Brinell scales, with wider test range.
- Equipped with high performance of servo motor which automatically load/unloading, it cause the less noise when do test.
- The outer shell of machine is formed of special founding one-time casted technique, stable structure, it is not easy to be out of shape, can work under relatively harsh environment.
- With pure white car painting and its class is high, have scratch resistance ability, it's still brightness used for years.
- This machine can connect to portable Brinell image software, improving the efficiency.
Specifications
| Model No. | BHE-3000M |
| Brinell scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Minimum unit | 0.005mm |
| Hardness range | HBW 8~650 |
| Hardness data read | Check table (hardness measuring software for optional purchase) |
| Total amplification | 20X |
| Load method | Automatic(load, dwell, unload) |
| Specimen maximum height allowed | 220mm |
| Instrument size | 530⨯187⨯758mm (L⨯W⨯H) Weight : 135kg |
| Dwell time | 1~99S |
| Power supply | AC220V + 5%, 50~60 Hz |
Accessories
- Hardness tester : 1 pc
- Φ2.5,Φ5,Φ10mm harden alloy indenter : 1 pc
- 20X measuring objective : 1 pc
- Big, medium and “V” test table : 1 pc
- Power cable : 1 pc
- Hand wrench : 1 pc
- Safety fuse : 1 pc
- Power line : 1 pc
- Accessory box : 1 pc
- Dust-proof cover : 1 pc
- Annual instruction : 1 pc
- Certificate of quality : 1 pc
- Warranty card : 1 pc
- Hardness conversion table : 1 pc
Software Description
Download Cataloge
ENQUIRY
BHE-3000M
Electric Brinell Hardness tester
Electric Brinell Hardness tester
BHE-3000IS
Image Analysis Electric Brinell Hardness Tester
Description
Image analysis software can be customized for kinds of functions, handy operation ,perfect function and meet most customers' demands .It can test Brinell hardness, easy to shift the dynamic and static measurement.
Application
Brinell hardness (BH) test. Method of measuring the hardness of a material . The Brinell method is suitable for testing the hardness of soft metals (light metals, lead, tin) through to hard metals, such as steel and iron.
Features
- It can enlarge the indentation image measurement, and can be amplified again for diagonal part to avoid manual error.
- It can automatic to identify the indentation image and measure the indentation diameter for bright and clear sample surface.
- Real time display the indentation diameter, hardness value, indentation depth, material strength, conversion hardness value etc..
- It possesses the unique mark positioning function, testing the positioned point hardness value.
- It can be adjusted the color, gray, contrast ratio, lightness of the image.
- Attached with function of indentation tangency fine tuning, length measurement and angle measurement etc..
- It possesses the function of test result statistical analysis, automatic generation and export for the format of Word, Excel of hardness measurement analysis report, and save the indentation image, print etc..
- Support WIN8, WIN7, WINNT, WIN2000, WINXP, VISTA and so on operation system.
Specifications
| Model No. | BHE-3000IS |
| Brinell scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Conversion scale | HRC, HRA, HR15N, HR30N, HR45N, HV |
| Minimum unit | 0.00125mm |
| Hardness range | HBW 8~650 |
| Hardness data read | Computer screen |
| Total amplification | 80X |
| Load method | Automatic(load, dwell, unload) |
| Specimen maximum height allowed | 230mm |
| Instrument size | 530⨯210⨯758mm (L⨯W⨯H) Weight : 135kg |
| Dwell time | 1~99S |
| Power supply | AC220V + 5%, 50~60 Hz AC110V available |
Accessories
- Hardness tester : 1 pc
- Φ2.5,Φ5,Φ10mm harden alloy indenter : 1 pc
- Big, medium and “V” test table : 1 pc
- Power cable : 1 pc
- Hand wrench : 1 pc
- Safety fuse : 1 pc
- Power line : 1 pc
- Accessory box : 1 pc
- Dust-proof cover : 1 pc
- Annual instruction : 1 pc
- Hardness measurement image analysis software CD : 1pc
- Portable microscope : 1pc
- Dongle : 1pc
- Data cable : 1pc
- Certificate of quality : 1 pc
- Warranty card : 1 pc
- Hardness conversion table : 1 pc
Software Description
Download Cataloge
ENQUIRY
BHE-3000IS
Image Analysis Electric Brinell Hardness Tester
Image Analysis Electric Brinell Hardness Tester
BH-62.5 A/B
Low Load Brinell Hardness Tester- Auto Turret/Manual Turret
Description
Equipped with sophisticated sensors, both test force and test results are more accurate, have more wide range of test force for your choice. The main components adopt brand such as American 3M, Allegro, Japan Omron and NKK, to ensure the equipment running stably for a long time.
Application
Features
- Proprietary ball positioning system have more precision of repositioning, ensure the precision and repeatability of the whole test process.
- Designed by our institution engineer that make the optical system imaging more clearer , brightness is adjustable, comfortable vision, it's not easy to fatigue for long time operation.
- Input the indentation diameter, hardness value is displayed directly, and can display conversion hardness value at the same time, avoid the inconvenience of looking up table.
- The industry LCD screen can be visual display hardness value, hardness unit, conversion hardness, testing force, indenter type, the required minimum thickness, load time, measurement times, and the test process is intuitive and clear, built-in printer can print out measured times, hardness value, average, maximum and minimum values, range for the customer to archive.
- Accompanying equipped with data transmission software, through RS232 interface will transfer host measurement data to the computer to edit and save.
- The shell is one step casting molding with special foundry process, stable structure and no deformation, can work under relatively harsh environment; Pure white car painting and its class is high, have scratch resistance ability, it's still brightness used for years.
- We have our own research and development design, production and processing ability, our machines provide life-long time parts replacement and maintenance upgrade services.
Specifications
| Model No. | BH-62.5A | BH-62.5B |
| Test force | 1kg(9.8N), 5kg(49N), 6.25kg(61.29N), 10kg(98N), 15.62kg(153.2N), 30kg(294.2N), 31.25kg(306.25N), 62.5kg(612.9N) |
|
| Scale | HB1, HB5, HB6.25, HB10, HB15.62, HB30, HB31.25, HB62.5 | |
| Conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | |
| Load rate | ≤50µm/sec | |
| Minimum test unit | 1µm | |
| Hardness value read | Digital LCD | |
| LCD screen size | 62x44mm | |
| Amplification times | 50X(observe), 100X(measure) (it can expand to 200X) | |
| Load method | Automatic(load, dwell, unload) | Manual |
| Dwell time | 1-99 S | |
| Objective and indenter shifting | Automatic | |
| Specimen maximum height allowed | 220mm | |
| Throat depth | 150mm | |
| Instrument size | 560⨯186⨯635mm (L⨯W⨯H) | |
| Weight | 43kg | |
| Light source | LED cold light source continuous using 24 hours, will not generate heat and affect the stability of electronic components, life-span can up to 100 thousand hours | |
| Power supply | 110V/220V + 5%, 50/60 Hz | |
| X-Y worktable | Size:100x100mm, max moving: 25x25mm,minimum read:0.01mm | |
Accessories
- Hardness tester : 1 pc
- 5X and 10X objective : 1 pc
- large working table : 1 pc
- level bubble : 1 pc
- Dust-proof cover : 1 pc
- Hardness conversion table : 1 pc
- Warranty card : 1 pc
- Data transmission software : 1 pc
- 10X micrometer eyepiece : 1 pc
- Φ1mm,Φ2.5mm hard alloy ball indenter : 1 pc
- Medium working table : 1 pc
- Power cable : 1 pc
- Manual instruction : 1 pc
- Certificate of quality : 1 pc
- Accessory box : 1 pc
- Data line. : 1 pc
Software Description
Download Cataloge
ENQUIRY
BH-62.5 A/B
Low Load Brinell Hardness Tester- Auto Turret/Manual Turret
Low Load Brinell Hardness Tester- Auto Turret/Manual Turret

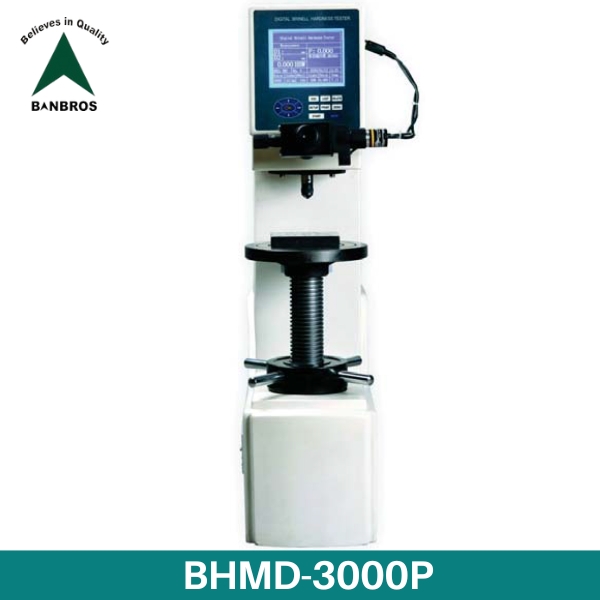

BHMD-3000P
Multifunction Digital Brinell Hardness Tester
Description
- Equipped with Japan Omron encoder digital display micrometer eyepiece and precise data calculating system, only gently touch can directly show the hardness value.
- Equipped with sophisticated sensors and a microcomputer control system, dynamic force value fluctuation is less than 1/1000, test results are more accurate.
- The main components adopt brand such as American 3M, Allegro, Japan Omron and NKK, to ensure the equipment running stable for a long time.
- Equipped with high performance of servo motor which automatically load/unloading, it cause the less noise when do test.
- Input the indentation diameter, hardness value is displayed directly, and can display conversion hardness value at the same time, avoid the inconvenience of looking up table.
- The industry LCD screen can be visual display hardness value, hardness unit, conversion hardness, testing force, indenter type, the required minimum thickness, load time, measurement times, and the test process is intuitive and clear, built-in printer can print out measured times, hardness value, average maximum and minimum values, range for the customer to archive.
- Accompanying equipped with data transmission software, through RS232 interface will transfer host measurement data to the computer to edit and save..
- The shell is one step casting molding with special foundry process, stable structure and no deformation, can work under relatively harsh environment; Pure white car painting and its class is high, have scratch resistance ability, it's still brightness used for years.
- We have our own research and development design, production and processing ability, our machines provide life-long time parts replacement and maintenance upgrade services.
Application
Features
Specifications
| Model No. | BHMD-3000P |
| Switch Type Of Objective lens and Indenter | Auto Turret |
| Testing Force | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| Conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45, H15T, H30T, H45T |
| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Min. Measuring Units | 0.00125mm |
| Indentation Value read | Digital LCD Screen |
| Loading Method | Automatically (Load, dwell and unload the testing force) |
| Dwell Time | 5-60s |
| Specimen maximum height allowed | 220mm |
| Throat Depth | 120mm |
| Instrument Size | 550*210*750mm (L*W*H) |
| Instrument Weight | 135kg |
| Light Source | LED Cold light source (Can be continuous use for 24 hours, servicing life can reach 100,000 hours) |
| Power Supply | 110V/220V+5%, 50/60 Hz |
| Data Output | Built-in Printer (Hardness Value, The Max. And Min. Value, Testing times and Average Value) Built-in RS-232 interface |
Accessories
- 10X Micrometer eyepiece : 1pc
- Vickers indenter : 1pc
- Power cable : 1pc
- Standard block of hardness : 2pc
- 10X and 20X Objective lens : 1pc
- Big/Medium/V-shape test table : 1pc
- Instruction Book : 1 book
Software Description
Download Cataloge
ENQUIRY
BHMD-3000P
Multifunction Digital Brinell Hardness Tester
Multifunction Digital Brinell Hardness Tester
BBH-3000T
Touch Screen Digital Brinell Hardness Tester
Description
Our BBH-3000T Model is equipped with touch screen panel, menu structure, easy for operation. Closed loop with load cell, test force from 62.5kgf to 3000kgf. Special design low nose design, suitable for all kinds of labs. Can work with Brinell Indentation Image Measurement software system, support on PC do auto measurement or manual measurement, and generate test report automatically.
Application
- Quality control of Industrial production (machinery manufacturing, metallurgy plants, etc.)
- Research & Inspection of Inspection Institution and universities laboratories.
- Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, etc.
Features
Specifications
| Model No. | BBH-3000T |
| Test space | 230*155mm (H*D) |
| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000 |
| Test Force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf(14710N), 3000kgf(29420N) |
| Minimum measure unit | 0.01mm |
| Test force accuracy | 62.5-250Kgf ≤ 1% ; 500-3000Kgf ≤ 0.5% |
| Dwell time | 5-60s |
| Test range | 8-650HBW |
| Microscope | 20X |
| Standard | BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
| Data display | LCD touch screen |
| Power supply | AC220 ±5%, 50-60Hz |
| Dimension | Machine: 550x210x750mm; Package: 730*450*980mm |
| Weight | Net weight: 120kg; Gross weight: 140kg |
Accessories
- Measurement microscope: 1pc
- Power Cable: 1pc
- RS232 cable: 1pc
- Manual book: 1pc
- Quality Certificate, Warranty card: 1pc
- Large, Medium, “V-shape Testing Table: 1pc
- Diameter 2.5, 5, 10mm Hard Alloy Steel Ball Indenter: 1pc
- Standard Hardness Blocks (HBW10/3000, HBW10/1000, HBW2.5/187.5: 3pcs
Software Description
Download Cataloge
ENQUIRY
BBH-3000T
Touch Screen Digital Brinell Hardness Tester
Touch Screen Digital Brinell Hardness Tester
