Description
Our BRB Hardness Testers are designed and developed after years of research & experience in this field. All the models are manufactured under strict quality control at all manufacturing stages.
These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate. These models strictly conform to IS: 1586-2000, BS: 891part 1&2
Application
Features
Specifications
| Model No. | BRB |
| Test Loads (Kgf) | 60, 100, 150 (Rockwell) 187.5 (Brinell) |
| Initial Loads (Kgf) | 10 |
| Max. Test Height (mm) | 215 |
| Depth of Throat (mm) | 132 |
| Max. Depth of Elevating Screw Below Base (mm) | 230 |
| Size of Base (mm) (Approx.) | 430 X 180 |
| Machine Height (mm) | 635 |
| Net Weight kg. (Approx.) | 65 |
Accessories
- Rockwell Diamond Indenter
- Testing Table (Ø 50 mm)
- Testing Table (Ø 40 mm with V" Groove for round Jobs Ø 6 to45 mm
- Steel Ball indenter 1/16”
- Test Block HRC
- Test Block HRB
- Steel Ball Ø 1/16”
- Allen Spanners
- Clamping Device
- Rubber Bellow
- Instruction Manua
Software Description
Download Cataloge
ENQUIRY
Rockwell Cum Brinell Hardness Tester
Description
Our BRB-250 Hardness Testers are designed and developed after years of research & experience in this field. All the models are manufactured under strict quality control at all manufacturing stages. These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate. These models strictly conform to IS: 1586-2000, BS: 891part 1&2
Application
Features
Specifications
| Model No. | BRB-250 |
| Test Loads (Kgf) | 60, 100, 150 (Rockwell) 187.5 (Brinell) 250 (Brinell) |
| Initial Loads (Kgf) | 10 |
| Max. Test Height (mm) | 215 |
| Depth of Throat (mm) | 132 |
| Max. Depth of Elevating Screw Below Base (mm) | 230 |
| Size of Base (mm) (Approx.) | 430 X 180 |
| Machine Height (mm) | 635 |
| Net Weight kg. (Approx.) | 65 |
Accessories
- Rockwell Diamond Indenter
- Testing Table (Ø 50 mm)
- Testing Table (Ø 40 mm with V" Groove for round Jobs Ø 6 to45 mm
- Steel Ball indenter 1/16”
- Test Block HRC
- Test Block HRB
- Steel Ball Ø 1/16”
- Allen Spanners
- Clamping Device
- Rubber Bellow
- Instruction Manual
Software Description
Download Cataloge
ENQUIRY
Rockwell Cum Brinell Hardness Tester
Description
Our BSM Hardness Testers are designed and developed after years of research & experience in this field. All the models are manufactured under strict quality control at all manufacturing stages.
These models are suitable for testing hardness of metals and alloys of all kinds, hard or soft, whether flat or round etc. or of irregular shape. These Testers are simple in design and easy to operate, still yet quite sensitive and accurate. These models strictly conform to IS: 1586-2000, BS: 891part 1&2
Application
Features
Specifications
| Model No. | BSM |
| Test Loads (Kgf) | 60, 100, 150 (Rockwell), 15,30,45 (Rockwell Superficial) |
| Initial Loads (Kgf) | 10 (Rockwell), 3 (Rockwell Superficial) |
| Max. Test Height (mm) | 295 |
| Depth of Throat (mm) | 148 |
| Max. Depth of Elevating Screw Below Base (mm) | 290 |
| Size of Base (mm) (Approx.) | 475 X 220 |
| Machine Height (mm) | 865 |
| Net Weight kg. (Approx.) | 125 |
Accessories
- Rockwell Diamond Indentor : 1No.
- Superficial Diamond Indentor : 1No.
- Steel Ball Ø 1/16" : 5Nos.
- Testing Table Ø 50mm : 1No.
- Test Block Rockwell Superficial 30N : 1No.
- Allen Spanners : 3Nos.
- Testing Table Ø 40mm with ‘V’ Groove for round jobs Ø 6 to 45mm : 1No.
- Clamping Device : 1No.
- Steel Ball Indentor Ø 1/16” : 1No.
- PVC Cover for Machine : 1No.
- Test Block HRC : 1No.
- Rubber Bellow : 1No.
- Test Block HRB : 1No.
- Instruction Manual : 1 Book
- Carry Case : 1No.
Software Description
Download Cataloge
ENQUIRY
Rockwell Cum Rockwell Superficial Hardness Tester
Description
Rockwell Hardness Testing Machine is manufactured under strict quality control at all manufacturing stages. This model is suitable for testing hardness of metals and alloys of all kinds, hard or soft whether flat or round etc. or of irregular shape. This model is having superior design to that of existing conventional Rockwell Hardness Testers &easy to operate still quite sensitive &accurate
Application
Features
- Machine is having different Taper front look and superior aesthetic look over conventional Rockwell Hardness Tester.
- Unidirectional Big Dial type auto load selection knob for load selection of loads 60,100 &150 kgf.
- Most of the important parts are plated to avoid rusting.
- An antifriction linear bearing is fixed in Hardened & ground stepped bush which will provide perfect vertical movement of diamond holder. Thus the testing of small pin or ball upto 3mm dia is possible.
- All models conform to -
IS : 1586, BS 10109-2, ASTM-E-18 & ISO : 6508-2 for Rockwell Test. - LCD Graphical Display with 128 x 64 pixels & Results are displayed in BIG Font size
- Minor load is graphically displayed on LCD screen (Minor load auto brake system)
- Provision of Numbers. of tests, mean, standard deviation, maximum, minimum range, individual test hardness numbers in PC Software.
- Dwell Time setting for MAJOR Load 1 to 99 sec & MINOR load dwell time is 1-30 sec.
- 75 Results are stored in the system with automatic result data storage.
- User can enable auto save results storage in system or disable it.
- User can select appreciate scale according to weight selected.
- Motorized Automatic Loading or Manual Loading is selectable.
- Conversion of results from Rockwell to Brinell (HB) , Vickers (HV), Knoop (HK), Tensile Strength (KSI),
- Serial Port for Dot Matrix Printer or EPSON LX 300 +(optional).
- Print result consists of Serial No. Hardness Value and Hardness Scale
Specifications
| Model No. | BRSN-TD |
| Test Loads (Kgf) | 15, 30, 45, 60, 100, 150 |
| Initial Loads (Kgf) | 3 kgf. For superficial test 10 kgf. for Rockwell |
| Max. Test Height (mm) | 220 |
| Depth of Throat (mm) | 130 |
| Size of base (mm) approx | 600 * 200 |
| Machine height (mm) | 850 |
| Net weight (approx kg) | 90 kg. |
Accessories
- Rockwell Diamond Indenter
- Superficial Diamond Indenter
- Testing table dia 50 mm
- Testing table dia 40 mm with “V” groove for round jobs dia 6 to 45 mm
- Steel ball Indenter Dia 1/16
- Test block HRC
- Test block HRB
- Test block Rockwell Superficial 30N
- Steel ball dia 1/16- 5 nos
- Allen Spanners- 3 nos
- Clamping Device
- Telescopic sleeves for elevating screw- 1 set
Software Description
Download Cataloge
ENQUIRY
Digital Motorized Rockwell cum Superficial Hardness Tester

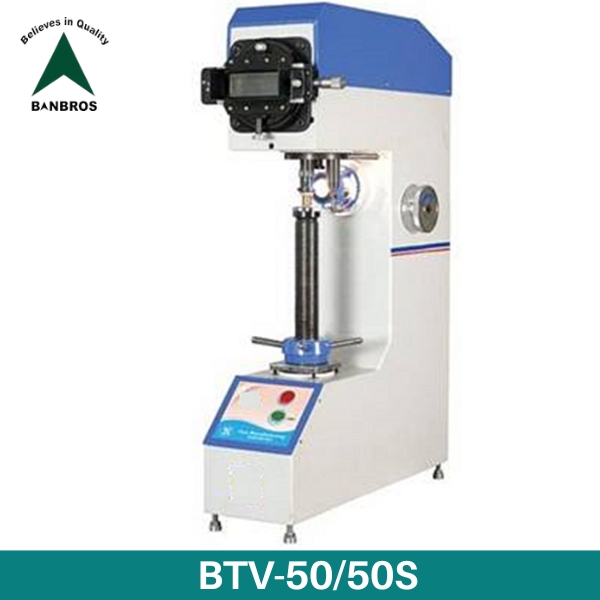

Description
- Table Top sturdy Model
- Front projection screen with Micrometer with Optical system List Count of 0.0005 mm
- Motorized Loading & Unloading of Loads
- Load selection By Indexible Load Selection Knob
- Very wide testing range from very soft Metals to Very Hard Metals
- Models with minimum 1 Kg Load are available
- The illumination light goes off during the application of Load which reduces the operator's fatigue due to continuous light illumination as well as increases Bulb life
- State of Art Load Damping system for a very smooth & Jerk free Loading & unloading of applied Load
- Machine Confirms to IS: 1754-2002 for Vickers & IS: 2281-2005 / BS240 for Brinell.
Application
Features
Specifications
| Model No. | BTV-250 | BTV-250-S |
| Test Loads (Kgf) | 5, 10, 20, 30, 50 for Vickers 62.5, 187.5, 250 for Brinell |
1, 5, 10, 20, 30, 50 for Vickers 62.5, 187.5, 250 for Brinell |
| Maximum Test height (mm) | 200 mm | |
| Depth of throat (mm) | 150 mm | |
| Weight Approx. (Kgf) | 180 | |
| Dimension L x W x H mm | 660x250x850 mm | |
| Connected Load | 0.1 KVA, 1 Phase AC, 220V, 50 Hz | |
Accessories
- Flat Table of 100mm Dia
- Vee Table for Specimen- 6 to 80 mm Dia
- Vickers Diamond Indenter
- Ø2.5, 5mm Ball Indenter
- Ø2.5, 5mm Steel Balls
- Vickers test block
- Brinell test block
- Electrical Cord
- Instruction Manual
Software Description
Download Cataloge
ENQUIRY
Vicker Cum Brinell Hardness Tester
Description
With Rockwell and superficial Rockwell test scale;Test force: 15 / 30 / 45 / 60 / 100 / 150kgf (initial test force: 3 / 10kgf)Automatic testing process: Automatic loading - Dwell - Unloading, and automatic display hardness value.With USB interface, test data can save to U-flash directly in Excel format.Easier calibration function ensure high accuracy of test result.
Application
Features
- With Rockwell & superficial Rockwell testing function.
- Nose mounted indenter allows access to awkward to reach test points ( ring shape material, tubular material, etc). Minimum working diameter is 25mm.
- Touch-screen interface, English language, all test data can show on screen directly.
- Closed loop force application, load cell instead of dead weights, no need to install weights, working directly after connect with electric power.
- Semi-automatic type, premier test force load by manual, then mian load force loading by motor (loading main force, dwell, unload automatically), greatly improved working efficienty.
- Test force automatic correction, improve the accuracy of a force of magnitude
- All Rockwell scale, test result / hardness value (high, medium and low hardness value) can be automatically calibrated on screen.
- Operator can set up a password for the machine to protect setup parameters; Safely keep test informations and setted parameters.
- Test data can export to U disk in EXCEL format, for long time keep and easy editing and processing.
- Machine adopted modular design, easy maintenance.
Specifications
| Model No. | BRSH-45-150NT |
| Test force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N); Initial force: 10kgf (98N) |
| 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N); Initial force: 3kgf (29.4N) | |
| Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Superficial Rockwell scale | 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y |
| Conversion scales | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Rockwell Testing range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-115 HRR:114-125 |
| Superficial Rockwell test range | HR15N: 70-94, HR30N: 42-86, HR45N: 20-77 HR15T: 67-93, HR30T: 29-82, HR45T: 10-72 |
| Dwell time | 0-99s |
| Display of Hardness Value | Touch LCD screen |
| Test accuracy | 0.1HR |
| Executive standard | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Data output | USB flash disk (Excel format) |
| Power supply | AC220±5%, 50-60Hz |
| Test space | Max. Height: 300mm; Throat depth: 250mm |
| Machine size & N/W | 720*260*840mm; 80kg |
Accessories
| Item Name | Q’ty | Item Name | Q’ty |
| Diamond Rockwell indenter | 1 pc | Ø1.5875mm Ball indenter | 1 pc |
| Hardness block (HRC high / low, HRB, HR15N, HR30N, HR30T) |
6 pc | Large, medium, V-type working table | 1 for each |
| USB flash disk | 1 pc | Touch screen pen | 1 pc |
| Fuse 2A | 2 pc | Horizontal adjustment screw | 4 pc |
| Power cable | 1 pc | Product Certificate, warranty card, manual book | 1 for each |
Software Description
1. Ring shape material
2. Tubular material
3. Screw corner
4. Bearing corner, etc.
Download Cataloge
ENQUIRY
Dolphin Nose Digital Rockwell & Superficial Hardness Tester With LCD Touch Screen
