Description

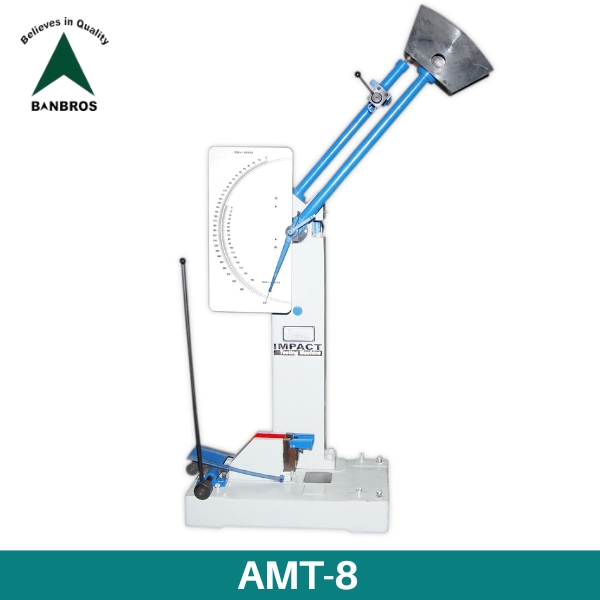

The Pendulum Impact Tester model AMT-8 is designed for conducting CHARPY, IZOD and IMPACT TENSION test.
The test method conforms to IS:1757-1973 and IS: 1499-1977, and BS: 131 Part 2&3- 1972 IS: 1598-1977, BS: 131 Part 1-1972.
The impact energy absorbed by the specimen during rupture in measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.
Application
Impact tests are utilized to study a material’s toughness, which is a key property that plays a significant role in the longevity of a structure.
They are widely utilized for purposes such as material acceptance, research and development, and quality control. The test results are normally presented as the energy needed for fracturing the test piece.
Features
Specifications
| Model No. | AMT-8 | |
| Charpy and Impact Tension Test | Izod Test | |
| Pendulum drop angle | 140° | 90° |
| Effective weight | 20.59 kg. | 21.79 kg. |
| Speed | 5.3465 m/sec | 3.857 m/sec |
| Impact energy | 30 Kgm (300J) | 16.4 Kgm (164J) |
| Min. Graduation | 2J | 2J |
| Distance of axis of hammer rotation and centre of test piece/ point of test piece hit by hammer. |
825mm | 825mm |
| Max. permissible loss by friction | 0.5% of max. impact energy | |
| Charpy Test | Izod Test | Impact Tension Test |
| A) Striking edge Angle: 30 ± 1 Radius of curvature: 2.25mm Width: 18mm | A) Striking edge Angle: 75 Radius of curvature: 0.75mm Horizontal relief: 10° Vertical Relief: 5° | A) Striking edge Distance between forks: 36mm Radius of curvature: 1mm |
| B) Support Distance between arm: 40mm Slopping angle: 0° Relief angle: 10° Radius of curvature: 1.25mm | B) Support For gripping specimen with dimension of 10 x 10mm | B) Support For clamping specimen with dimension of following Diameter: 6.4mm Length (Total): 68mm Length (Measuring): 25.4mm Thread of supporting: M10 x 1.5 |
Accessories
- Charpy Striker R 2mm : 1 No.
- Izod Strike R 0.75mm : 1 No.
- Charpy- Izod Support Block : 1 No.
- Specimen Setting Gauges for Charpy & Izod : 1 Each
- Allen Key Set : 1 set
- Instruction Manual
Software Description
Download Cataloge
ENQUIRY
Analogue Impact Testing Machine
Description

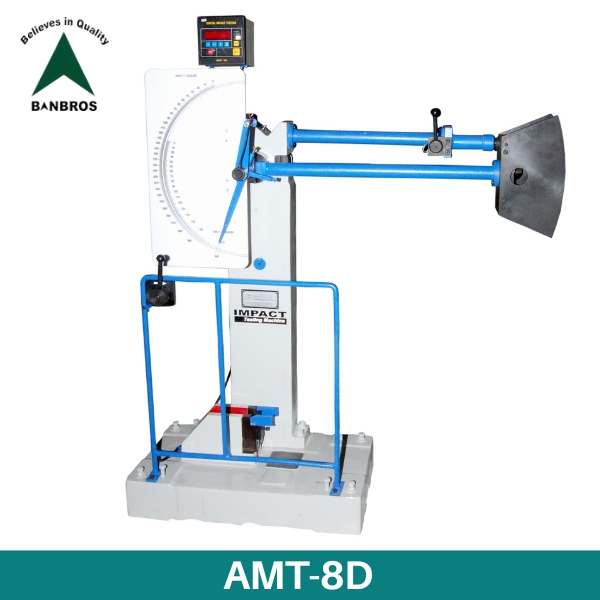

Our Digital Pendulum Impact Tester Model AMT-8D is designed for conducting CHARPY, IZOD and IMPACT TENSION test.
The test method conforms to IS:1757-1973, and IS: 1499-1977, and BS: 131 Part 2&3- 1972 IS: 1598-1977, BS: 131 Part 1-1972.
The impact energy absorbed by the specimen during rupture in measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.
Application
Impact tests are utilized to study a material’s toughness, which is a key property that plays a significant role in the longevity of a structure.
They are widely utilized for purposes such as material acceptance, research and development, and quality control. The test results are normally presented as the energy needed for fracturing the test piece.
Features
Specifications
| Model No. | AMT-8D | |
| Charpy and Impact Tension Test | Izod Test | |
| Display | Digital | Digital |
| Pendulum drop angle | 140° | 90° |
| Effective weight | 20.59 kg. | 21.79 kg. |
| Speed | 5.3465 m/sec | 3.857 m/sec |
| Impact energy | 30 Kgm (300J) | 16.4 Kgm (164J) |
| Min. Graduation | 2J | 2J |
| Distance of axis of hammer rotation and centre of test piece/ point of test piece hit by hammer. |
825mm | 825mm |
| Max. permissible loss by friction | 0.5% of max. impact energy | |
| Charpy Test | Izod Test | Impact Tension Test |
| A) Striking edge Angle: 30° ± 1° Radius of curvature: 2.25mm Width: 18mm |
A) Striking edge Angle: 75° Radius of curvature: 0.75mm Horizontal relief: 10° Vertical Relief: 5° |
A) Striking edge Distance between forks: 36mm Radius of curvature: 1mm |
| B) Support Distance between arm: 40mm Slopping angle: 0° Relief angle: 10° Radius of curvature: 1.25mm |
B) Support For gripping specimen with dimension of 10 x 10mm | B) Support For clamping specimen with dimension of following Diameter: 6.4mm Length (Total): 68mm Length (Measuring): 25.4mm Thread of supporting: M10 x 1.5 |
Accessories
- Charpy Striker R 2mm : 1 No.
- Izod Strike R 0.75mm : 1 No.
- Charpy- Izod Support Block : 1 No.
- Specimen Setting Gauges for Charpy & Izod : 1 Each
- Allen Key Set : 1 set
- Instruction Manual
Software Description
Download Cataloge
ENQUIRY
Digital Impact Testing Machine
Description
Our Digital Pendulum Impact Tester Model BIT-300-ASTM is designed for conducting CHARPY, IZOD and IMPACT TENSION test.
The test method conforms to IS:1757-1973, and IS: 1499-1977, and BS: 131 Part 2&3- 1972 IS: 1598-1977, BS: 131 Part 1-1972.
The impact energy absorbed by the specimen during rupture in measured as the difference between the height of drop before repute and the height of rise after rupture of the test specimen and is read on the dial scale.
Application
Impact tests are utilized to study a material’s toughness, which is a key property that plays a significant role in the longevity of a structure.
They are widely utilized for purposes such as material acceptance, research and development, and quality control. The test results are normally presented as the energy needed for fracturing the test piece.
Features
- For Charpy tests on various materials.
- Strictly conforms to ASTM-E-23-current Standard.
- Optional R2mm striker can be provided as per BS-EN-ISO 148 standard.
- Pendulum release lever with safety lock for operator safety.
- New modified Brake drum unit is provided o stop the pendulum swing instantly after test.
- Large safety guards are provided either side of the machine.
- Approval of Impact Test Machine with Charpy test samples from NIST. USA.
- Digital display unit or analogue large dial for indication of absorbed energy.
- Total Maintenance free machine
- Unique spring loaded braking system for smooth and jerk free braking
Specifications
| Model No. | BIT-300-ASTM |
| Charpy and Impact Tension Test | |
| Capacity | 300/400 Joule |
| Display | Digital / Analogue |
| Standard | ASTM-E-23-current Standard |
| Pendulum drop angle | 140° |
Accessories
- Charpy Striker R 8mm : 1 No.
- Charpy Support Block : 1 No.
- Specimen Setting Gauges for Charpy : 1 Each
- Allen Key Set : 1 set
- Foundation Bracket with tightening bolts : 1 No.
- Instruction Manual
Software Description
Download Cataloge
ENQUIRY
