- Metallurgical Microscope
Description

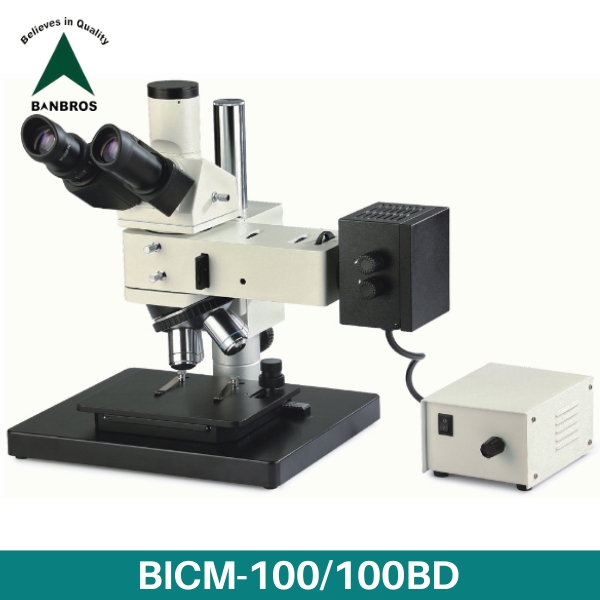

BICM-100/100BD Industrial inspection microscopes are suitable to observe surfaces structure and geometry of work piece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness work piece. Quickly and effectively locate the observation part of work piece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slide way, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
Application
Features
Specifications
| Specification List | |||
|---|---|---|---|
| Eyepiece | Wide field WF10X(field number:ɸ 22mm) | ||
| Infinity Plan Achromatic Objective | BICM-100 (Equipped with bright field Objectives) | PL L5X/0.12, Working Distance: 26.1mm | |
| PL L10X/0.25, Working Distance: 20.2mm | |||
| PL L20X/0.40, Working Distance: 8.80mm | |||
| PL L50X/0.70, Working Distance: 3.68mm | |||
| BICM-100BD (Equipped with bright & dark field Objectives) | PL L5X/0.12BD, Working Distance: 9.70mm | ||
| PL L10X/0.25BD, Working Distance: 9.30mm | |||
| PL L20X/0.40BD, Working Distance: 7.23mm | |||
| PL L50X/0.70BD, Working Distance: 2.50mm | |||
| Eyepiece Tube | Trinocular inclined 30°, can be shot in 100% light flux. | ||
| Epi- illumination system | BICM-100 | 6V30W halogen, Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. | |
| BICM-100BD | 12V50W halogen, Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device | ||
| Focus system | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 1μm. | ||
| Nosepiece | Quintuple (Backward ball bearing inner locating) | ||
| Working stage | Base size : 300mmX250mm, Mechanical stage size : 160mmX140mm, Moving range : Transersal : 35mmx30mm | ||
| Optional Accessory | Eyepiece | 10X(ɸ 22mm) Dividing Eyepiece (Field number ɸ 22mm) | |
| Objective | BICM-100 | Bright Field Objective: 40X, 60X, 80X, 100X (Dry) | |
| BICM-100BD | Bright & dark Field Objective: 40X, 60X, 80X, 100X | ||
| CCD Adapter | 0.4X, 0.5X, 1X, 0.5X (With Dividing) | ||
| Camera | USB: 130/300/500/900 USB Output: 1.3M/3.M/5.0M/9.0MP Video: 380/520 Video Output: 380/520 TV LIne |
||
| Digital Camera Adapter | CANON (EF), NOKIN (F) | ||
Accessories
Software Description
Download Cataloge
ENQUIRY

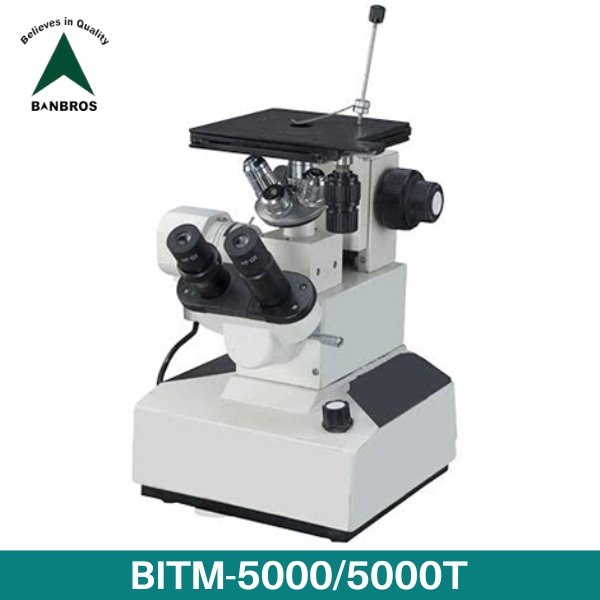

Metallurgical Microscope
Description
The most compact & economically designed inverted, designed & development to fulfill various testing requirements of industries & educational institutes. A special feature of the design is flat unobstructed stage surface which places no limitation on the size & height of the specimen. Simply place the specimen, face down on the stage, and switch on the illuminator, rotate the required objective in to position and you are ready to observation images.
Application
Features
Specifications
| Model No. | BITM-5000/5000T |
| Viewing Head | Binocular/ Trinocular microscope observation head conveniently inclined at 45° |
| Focusing | Co-axial coarse & Fine focusing module with slides travelling on ball bearing guide ways |
| Mechanical Stage | Large graduated mechanical stage with low drive co-axial controls for X-Y movements on ball slides. |
| Objectives | Achromatic flat field metallurgical corrected and anti-mount fungus M4x, M10x, M20x & M40x |
| Eyepieces | Compensating High eye point wide field eye piece 10x |
| Magnification | 40x to 400x |
| Illumination | 12v-50w, Incident light through Epi-illuminator with field aperture diaphragm and filter slot. |
| Continuously variable luminosity control though built in electronics transformer | |
| Filters | Green & Blue |
Accessories
- Digital Camera
- Metallurgical Image
- Analysis software
- Grain size Eye piece
- Graph Eye piece
- Measuring Eye piece
- Object Micrometer slide.
Software Description
Download Cataloge
ENQUIRY

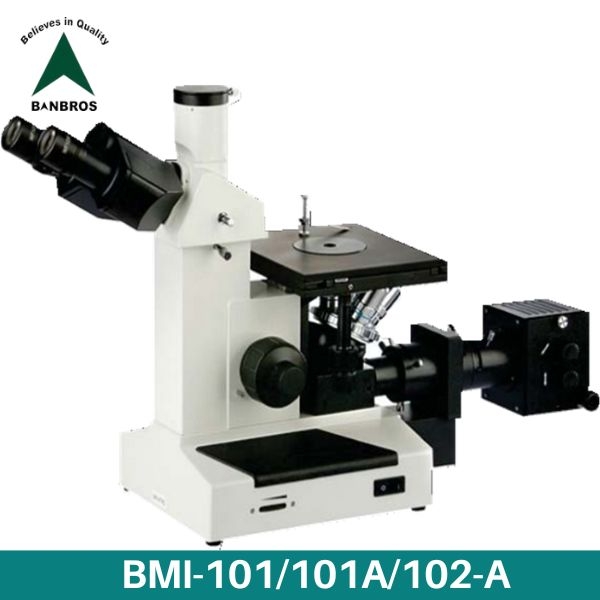

Metallurgical Microscope
Description
BMI Series Inverted Metallurgical Microscope are equipped with excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is uniform. The instrument design very compact in structure, to make the operation easy and affordable. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering etc.
Application
Features
Specifications
| Model No. | BMI-101 | BMI-101A | BMI-102A |
| Viewing Head | Binocular | Trinocular | Trinocular |
| Eyepieces | Wide Field WF 10x (Field Number ?18mm) High-point, extra wide field EWF10x/20?mm | ||
| Objective |
Plan Achromatic PL L10X/0.25 PL L20X/0.40 (Spring) PL L40X/0.60 (Spring) |
Infinite Plan Achromatic 4X / 0.1 PL L10X/0.25 PL L20X/0.40 (Spring)
|
|
| Magnification | 100x, 200x & 400x (Standard), can be increased upto 2000x | ||
| Focus system | Coaxial coarse/fine focus with tension adjustable and low stop, minimum division of fine focusing : 2?m | ||
| Illumination Unit | 6V-20W, halogen lamp, brightness adjustable. Integrated field, diaphragm aperture diaphragm | ||
| Filter | Blue, Yellow, Green and Ground Glass | ||
| Polarization Attachment | Polarizer and analyzer, An integrate device for polarizer and analyzer | ||
Accessories
Software Description
Download Cataloge
ENQUIRY
Metallurgical Microscope
Description

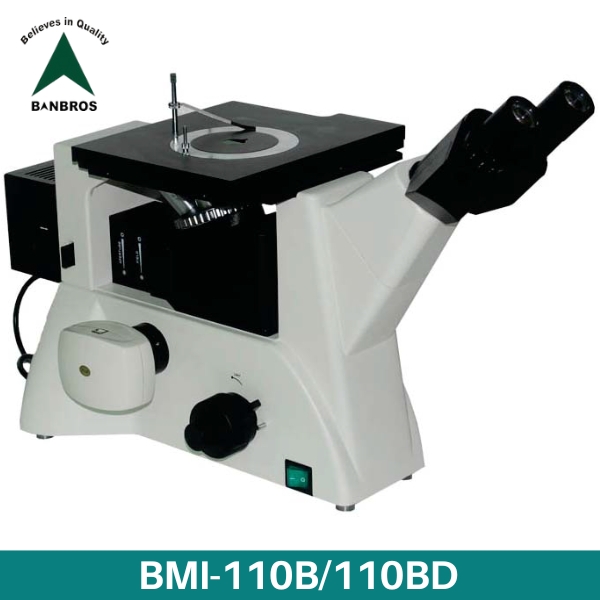

BMI-110 Series Inverted Metallurgical Microscopes is equipped with excellent UIS optical system and modularization function design so that update system expediently and archived polarization, dark filed observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Application
Features
Specifications
| Model No. | BMI-110B | BMI-110BD |
| Eyepieces | Wide Field WF 10x (Field Number Ø22mm) | |
| Infinite Plan Achromatic | Equipped with bright field objectives | Equipped with bright field & dark Field objectives |
| Objectives | PL L10X/0.25 PL L20X/0.40 PL L50X/0.70 (Spring) PL L100X/0.85 (Dry) (Spring) |
PL L5X/0.12 PL L10X/0.25BD PL L20X/0.40 BD PL L50X/0.70 B |
| Magnification | 100x, 200x, 500x & 1000x (Optional upto 2000x) |
50x,100x, 200x, 500x (Optional upto 2000x) |
| Eyepiece Tube | Inclination 45° and interpupillary distance: 53~75mm. | |
| Focus system | Coaxial coarse/fine focus with tension adjustable, minimum division of fine focusing: 2μm. | |
| Stage | Mechanical stage Overall Size: 242mm x 200mm and Moving Range: 30mm x 30mm Rotundity and rotatable stage size: maximum measurement is Ф130mm and minimum clear aperture is less then Ф20mm. |
|
| Illumination Unit | 6V 30W, halogen lamp, adjustable brightness Integrated field diaphragm, aperture diaphragm and system polarizer. Equipped with frosted glass and yellow, green and Blue Filter. |
12V 50W, halogen lamp, Adjustable brightness Integrated field diaphragm, aperture diaphragm and system polarizer. Equipped with frosted glass and yellow, green and Blue Filter. |
Accessories
Software Description
Download Cataloge
ENQUIRY
Metallurgical Microscope
Description

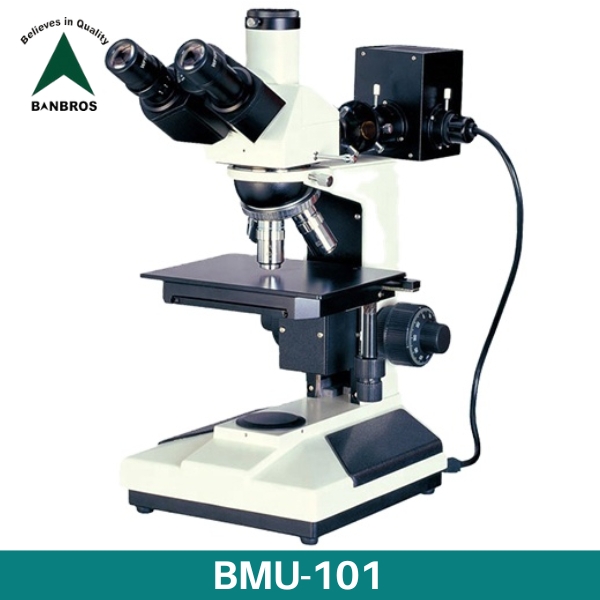

BMU Series upright metallurgical microscope are suitable to observe to surface of opaque object or transparent object. They are equipped with long working distance plan achromatic objectives and field eyepieces provided excellent optics quality and operation performance.
Enable selection of the illumination mode, such as reflected, transmitted and reflected light working independently or synchronously, achieved the request of different sample checking. They are the ideal instruments in research work for metallography, mineralogy, precision engineering electronics etc.
Application
Features
Specifications
| Model No. | BMU-101 |
| Eyepieces | Wide Field WF 10x (Field Number Ø18mm) |
| Objective | PL L5X/0.12 Work Distance : 18.3mm PL L10X/0.25 Work Distance : 8.8mm PL L40X/0.60 (Spring) Work Distance : 3.7mm PL L60X/0.75 (Spring) Work Distance : 1.34mm |
| Magnification | 50x, 100x, 400x & 600x (Optional upto 2000x) |
| Eyepiece Tube | 30 Trinocular, Inclination 30 and integrated analyzer |
| Epi-illumination Unit | 6V 20W, halogen lamp, brightness control. Integrated field, aperture diaphragm and filter switch drive puller polarizer, Equipped with Y, B, G Filters with ground glass |
| Transmitted illumination System | Not Applicable |
| Focus system division of the fine focusing : 2_m | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum |
| Stage | Double layer mechanical (size: 185mm x 140mm, moving range : 75mm x 50mm) |
Accessories
Software Description
Download Cataloge
ENQUIRY
Metallurgical Microscope
Description

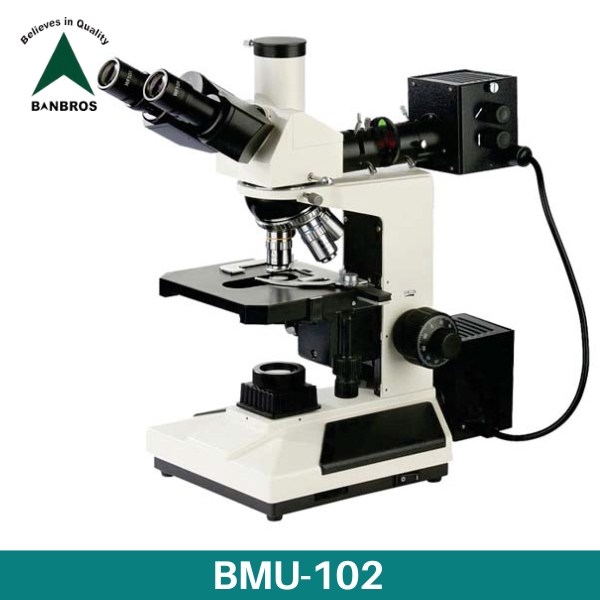

BMU Series upright metallurgical microscope are suitable to observe to surface of opaque object or transparent object. They are equipped with long working distance plan achromatic objectives and field eyepieces provided excellent optics quality and operation performance.
Enable selection of the illumination mode, such as reflected, transmitted and reflected light working independently or synchronously, achieved the request of different sample checking. They are the ideal instruments in research work for metallography, mineralogy, precision engineering electronics etc.
Application
Features
Specifications
| Model No. | BMU-102 |
| Eyepieces | Wide Field WF 10x (Field Number Ø18mm) |
| Objective | PL L5X/0.12 Work Distance : 18.3mm PL L10X/0.25 Work Distance : 8.8mm PL L40X/0.60 (Spring) Work Distance : 3.7mm PL L60X/0.75 (Spring) Work Distance : 1.34mm |
| Magnification | 50x, 100x, 400x & 600x (Optional upto 2000x) |
| Eyepiece Tube | 30 Trinocular, Inclination 30 and integrated analyzer |
| Epi-illumination Unit | 6V 20W, halogen lamp, brightness control. Integrated field, aperture diaphragm and filter switch drive puller polarizer, Equipped with Y, B, G Filters with ground glass |
| Transmitted illumination System | NA. 1.25 Abbe condenser Rack & pinion adjustable |
| Focus system division of the fine focusing : 2_m | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum |
| Stage | Double layer mechanical (size: 185mm x 140mm, moving range : 75mm x 50mm) |
Accessories
Software Description
Download Cataloge
ENQUIRY

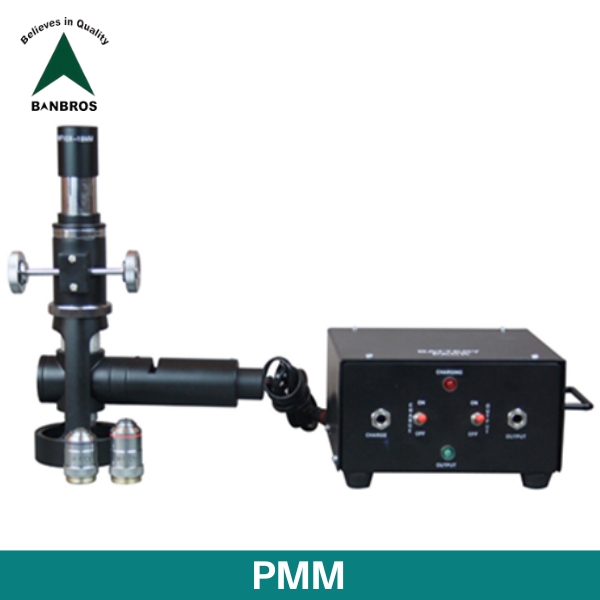

Metallurgical Microscope
Description

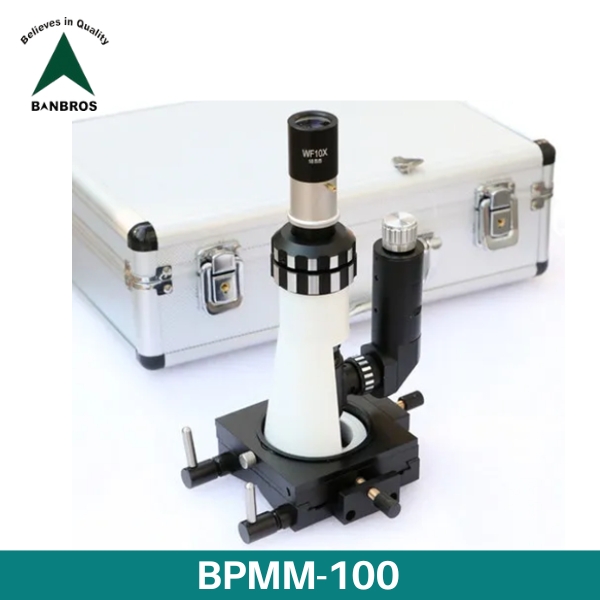

BPMM-100 is a portable metallurgical microscope which used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece.
It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.
This is used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece.
It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.
Application
Features
Specifications
| Model No. | BPMM-100 |
|---|---|
| Plan Eyepiece | WF10X(Φ 18mm) |
| Achromatic Objective | 10X 40X/0.65(Metallographic Objective) |
| Total Mag. | 100X-500X |
| Focusing Range | 25mm |
| Mechanical Tube Length | 160mm |
| Voltage | 3.6V |
| Weight | Net: 0.75kg Gross: 0.90kg |
| Dimension | 230X110X70(mm) |
Accessories
Software Description
Download Cataloge
ENQUIRY
Metallurgical Microscope
Description

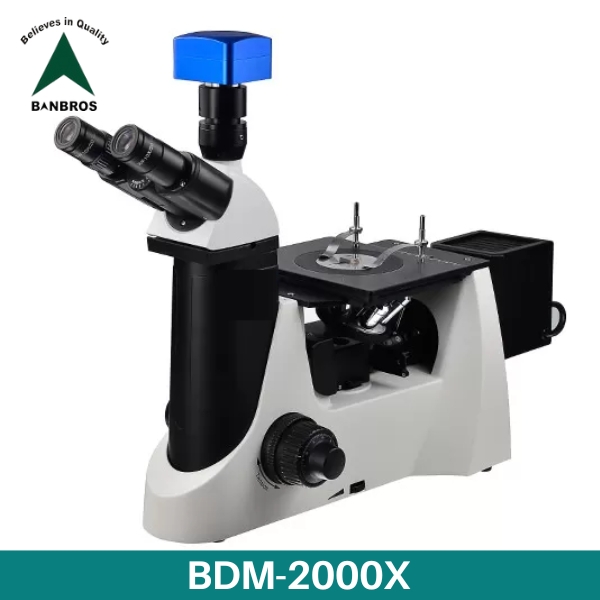

The BDM-2000X has a slim wedge shaped design that saves bench space and offers excellent stability. The drop down stage controls are ergonomically positioned to provide comfort and ease of use for the operator. An integrated 12V 50W vertical Koehler halogen illuminator with a variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The BDM-2000X is designed to meet your most diverse needs for materials research. It is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as micro-structure analysis, various materials testing, QA and QC examination and photomicrography. It is also equipped with yellow, blue, green, and polarizing filters.
- Excellent infinite Optical System. High Magnification Objective with Long Working Distance
- Comfortable and Enjoyable Operation with low Position Control knob
- Easy, Safe and Reliable Lamp Replacement Device
Application
Features
Specifications
| Model No. | BDM-2000X |
| Observation Tube | Trinocular head inclined at 30° |
| Interpupillary distance | From 48-75mm |
| Eyepiece | WF10X/20mm, WF10X/18mm reticule eyepiece |
| Objective | Infinity plan achromatic 5X, 10X, 20X(spring), 50X(spring), objectives |
| Stage | Mechanical stage with size 180x155mm,X-Y travel is 80x50mm with graduation of 0.1mm |
| Focusing | Coaxial focusing knob, fine focusing is graduated in increment of 1um |
| Nosepiece | Quintuple nosepiece with Infinity Corrected F=200MM |
| Illumination | 12V 50W halogen lamp |
| Power supply | 100-240V |
| Standard accessories | Dust cover, blue/ yellow/ green filter, fuse, simple polarization |
| Optional accessories | â—‹ WF10X/22mm eyepiece |
| â—‹ WF10X/22mm pointer eyepiece | |
| â—‹ WF10X/20mm reticule eyepiece | |
| â—‹ 5X plan achromatic objective | |
| â—‹ 100X plan achromatic objective(dry) | |
| â—‹ 5W LED illumination | |
| â—‹ C-mount adapter, | |
| â—‹ digital camera adapter |
Accessories
Software Description
Download Cataloge
ENQUIRY

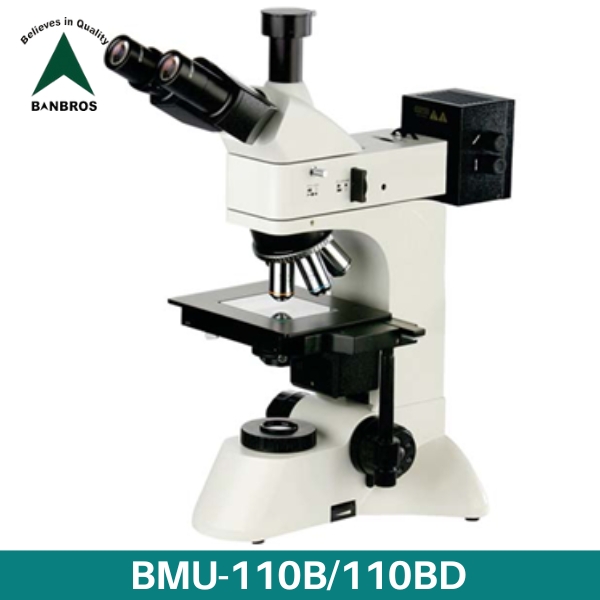

Metallurgical Microscope
Description
BMU-110 Series Upright Metallurgical Microscopes are suitable to observe surfaces of opaque object or transparent object. They are equipped with excellent UIS optical and modularization function design, that provides excellent optical quality and operation performance, update system expediently and provides observation in reflected or transmitted and mixed illumination, polarizing observation, dark field observation. These are the ideal instruments in research work metallography, mineralogy, precision engineering, electronics, etc.
Application
Features
Specifications
| Model No. | BMU-110B | BMU-110BD |
| Eyepieces | Wide Field WF 10x (Field Number Ø22mm) | |
| Infinite Plan Achromatic | (Equipped with bright field objectives) | (Equipped with bright field & dark Field objectives) |
| Objective | PL L5X/0.12 PL L10X/0.25 PL L20X/0.60 PL L50X/0.70 |
PL L5X/0.12 BD PL L10X/0.25 BD PL L40X/0.40 BD PL L60X/0.60 BD |
| Magnification | 50x, 100x, 400x & 600x | 50x,100x, 200x, 400x |
| Eyepiece Tube | Trinocular inclined 30º, can be shot in 100% light flux. | |
| Focus system | Coaxial coarse/fine focus with tension adjustable, minimum division of fine focusing: 2μm. | |
| Double layer mechanical (size: 185mm x 140mm, moving range: 75mm x 50mm) | ||
| Epi-illumination Unit | 6V 30W, halogen lamp, adjustable brightness | 12V 50W, halogen lamp, adjustable brightness Equipped with Y,B,G Filters with ground glass |
| Integrated field diaphragm, aperture diaphragm and filter switching device, Push-pull type analyzer with polarizer | ||
| Transmitted illumination | 6V 30W, halogen lamp, adjustable brightness. | 12V 30W, halogen lamp, adjustable brightness |
| Equipped with Blue filter and frosted glass | ||
Accessories
Software Description
Download Cataloge
ENQUIRY
Metallurgical Microscope
Description
This model is compact in size, light in weight & easy to carry around. This microscope permits examination on the desk & also on the post examination of an object in original size & shape in factories, laboratories & pipelines. The microscope unit is fitted with an incident and light through epi-illuminator, slot for dropping filter and Chargeable Battery Pack.
Two filters in mount (Green & Blue), & following optical combination in Wooden box.
Application
Features
Specifications
- Eyepieces: 10x
- Objectives: 5x ,10x, 20 X & 40x
- Magnification: Upto 400X
Accessories
Software Description
Download Cataloge
ENQUIRY
Portable metallurgical Microscope
Description

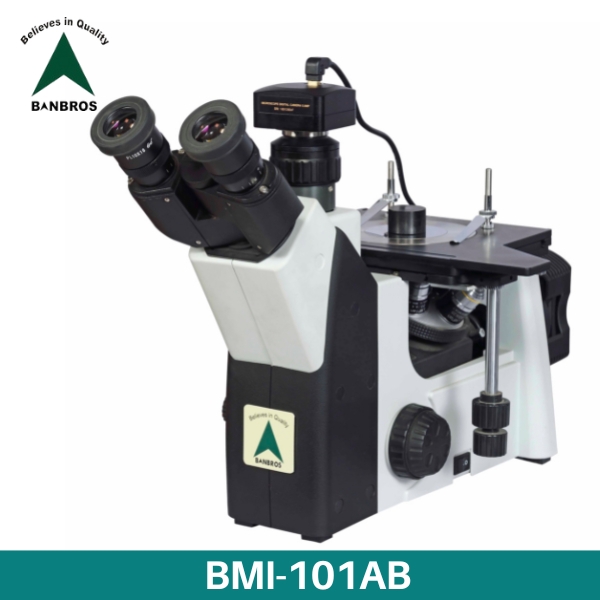

BMI Series Inverted Metallurgical Microscope are equipped with excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is uniform. The instrument designed very compact in structure, to make the operation easy and affordable. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering etc.
Application
Features
Specifications
| Model No. | BMI-101AB |
| Eyepiece | WF 10X-22mm |
| Reticule Eyepiece | WF 10X-20 mm (Cross Reticule 0.1mm) |
| Objective | INFINITY LONG WORKING DISTANCE PLAN Objective , 5X/0.1,10X/0.25, 10X/0.25, 20X/0.4 (S), 50X/0.75 (S) and 100X/1.25 (S, oil) |
| Head | Seidentopf Binocular / Trinocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm |
| Nosepiece | Quintuple |
| Mechanical Stage | Stage Size: 226mmX178mm, Travel: 40mmX40mm, stage ø16,ø4 0, Stage micrometer 0.01mm |
| Focus | Coaxial Coarse and Fine Focusing Knobs |
| Illumination | Halogen 12V/50W -Refelcted, Epi-Köhler illumination, ISO-CE |
| Filter | green, blue, yellow, grey and G glass |
| Polarizing | Polarizing and Analyzer Slide |
| Attachments | Polarizing , Analyzer Slide. |
Accessories
Software Description
Download Cataloge
ENQUIRY
Inverted Metallurgical Microscope
